Philips 70DCC600 - Page 35

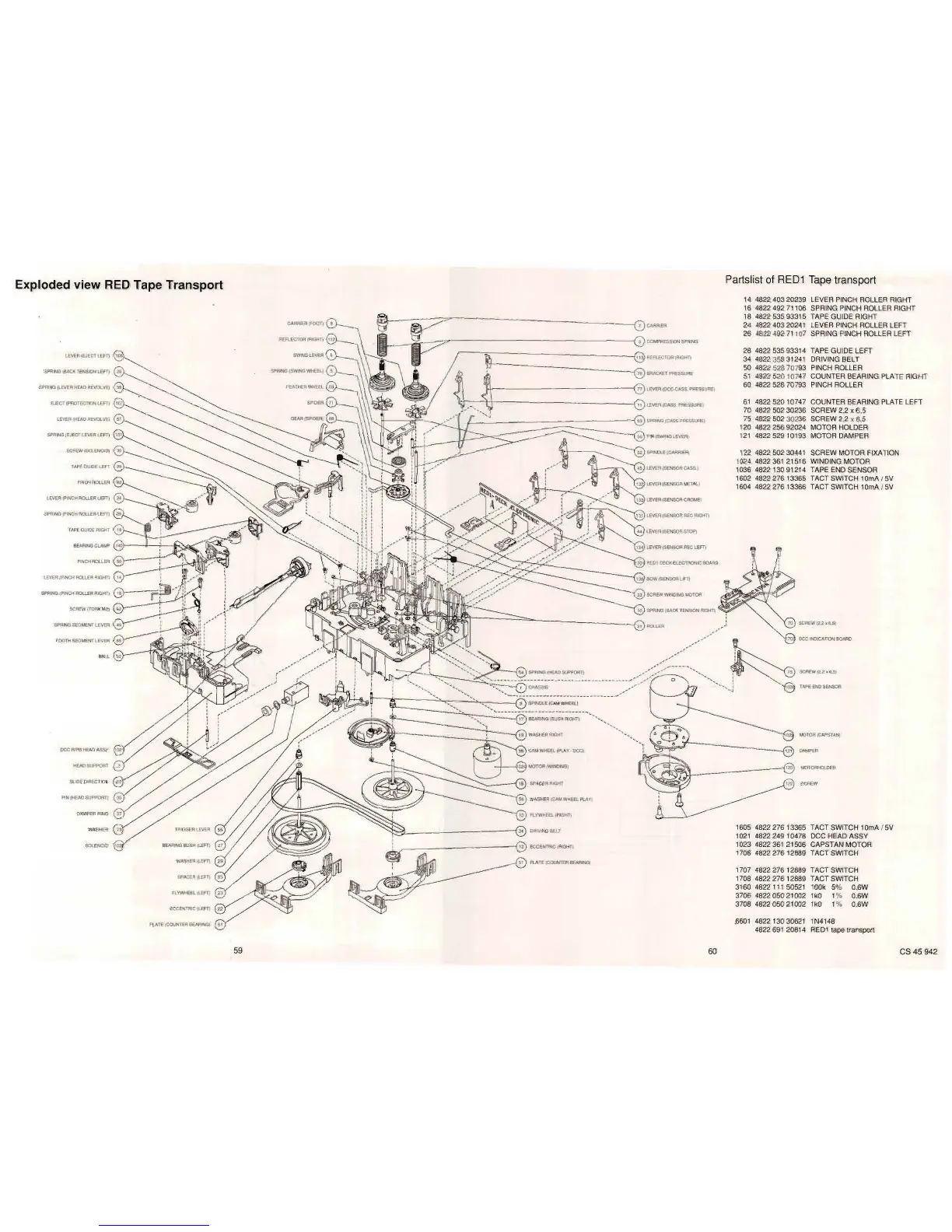

Exploded view RED Tape Transport
Partslist of RED1 Tape transport
LEVER (EJECT lEFT)
SPRING (BACK TENSK>N lEFT)
SPRING (LEVER HEAD REVOLVE)
EJECT (PROTECTION lEFT)
LEVER (HEAD REVOLVE)
SPRING (EJECT LEVER lEFT)
SCREW (SOLENOID)
TAPE GUIDE LEFT
PINCH ROLLER
LEVER (PINCH ROUER lEFT)
BEARING CLAMP
PINCH
ROLLER
LEVER (PINCH ROLLER RIGHT)
SPRING (PINCH ROLlER RIGHT)
SCREW (TOR)( M2)
SPRING SEGMENT LEVER
TOOTH SEGMENT LEvER
BALL
OCC RIPe HEAD ASSY
HEAD SUPPORT
SLIDE DIRECTION
PIN (HEAD SUPPORT)
DAMPER RING
WASHER
SOLENOID
59
-:::::::7------'--------------------0 CARRIER
o COMPRESSION SPRING
r---c;;:-_ -_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_-_ - ~~~ ::::Op:~::
~ LEVER (OCC-CASS PRESSURE)
r----'lt+---------------- __ 11 LEVER (CASS. PRESSURE)
SPRING (CASS PRESSURE)
PIN (SWING LEVER)
70 REOl DECK ELECTRONIC BOARD
SCREW WINDING MOTOR
SPRING
(BACK TENSION RIGHT)
:
ROUER .... ,)
....... , ...........
. 7-_~ "'::::::::;;~~_':'_.~~:~___':::::'::::::><~""""""
CAM WHEEL (PLAY. OCC)
WASHER (CAM WHEEL PlAY)
FLYWHEEL (RIGHT)
DRIVING
BELT
51 PLATE (COUNTER BEARING)
60
14 482240320239 LEVER PINCH ROLLER RIGHT
16 4822 492 71106 SPRING PINCH ROLLER RIGHT
18 482253593315 TAPE GUIDE RIGHT
24 4822 403 20241 LEVER PINCH ROLLER LEFT
26
482249271107 SPRING PINCH ROLLER LEFT
28
482253593314 TAPE GUIDE LEFT
34 482235831241 DRIVING BELT
50 4822 528 70793 PINCH ROLLER
51 482252010747 COUNTER BEARING PLATE RIGHT
60 4822 528 70793 PINCH ROLLER
61 482252010747 COUNTER BEARING PLATE LEFT
70
482250230236 SCREW 2,2 x 6,5
75 4822502 30236 SCREW 2,2 x 6,5
120
482225692024 MOTOR HOLDER
121 482252910193 MOTOR DAMPER
122 482250230441 SCREW MOTOR FIXATION
1024 4822
361 21516 WINDING MOTOR
1036
482213091214 TAPE END SENSOR
1602 4822 276 13365 TACT SWITCH 1
OmA I 5V
1604 482227613366 TACT SWITCH 10mA 15V
SCREW (2,2 x 6,5)
TAPE END SENSOR
MOTOR (CAPSTAN)
DAMPER
MOTOAHOlDER
SCREW
1605 4822 276 13365 TACT SWITCH 1 OmA I 5V
1021 482224910478 DCC HEAD ASSY
1023
482236121506 CAPSTAN MOTOR
1706
482227612889 TACT SWITCH
1707
482227612889 TACT SWITCH
1708
482227612889 TACT SWITCH
3160 4822
111 50521 WOk 5% O,6W
3706 482205021002 1kO 1% O,6W
3708 4822 050 21002 1 kO 1% O,6W
.6601 482213030621 1N4148
4822
691 20814 RED1 tape transport
CS 45 942
