Replacement of PC diffuser
替换损坏的透镜
Danger: electricity
Replacement and maintenance
替换与维护

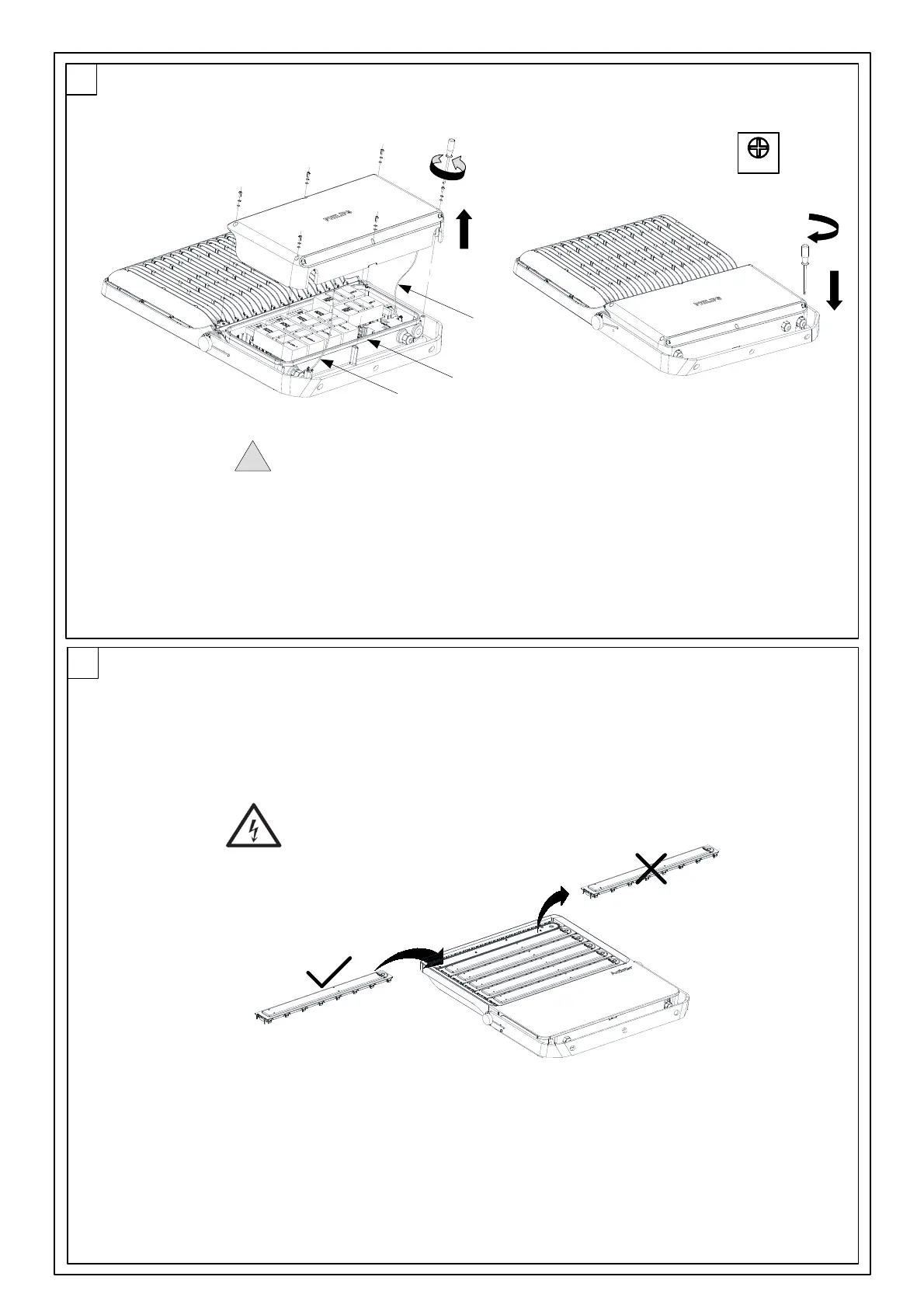

Open and lock Gear cover
打开和锁紧上盖
1. open the cover
打开
上盖
2.
L
ock the cover
锁紧
上盖
8
!
1.5N.m
M5
Gasket
密封带
Safety chain
安全绳
Earth wire
接地线
Warning: Before closing the cover, confirm the following:
1. The gasket is in the correct position.
2. Do not press the earth wire on the gasket and driver.
3. Do not press the safety chain on the gasket.
警告：在合上盖子前，需要确认下几点：
1.密封
带处于正确位置。
2.接地
线禁止被压在密封带和驱动的上面。
3.安全
绳禁止被压在密封带上面。
