IP connector instruction
防水电缆连接器
Male
公端
Female
母端
Insert the cable into IP connector
电缆插入防水端子
4.Nut for cable sealing 1.5~2.0Nm
电缆密封螺母 扭矩 1.5~2.0Nm
3.Nut for terminal sealing
Tighten after wiring 1.5~2.0Nm
端子密封螺母
接线后拧紧 扭矩 1.5~2.0Nm
5.Nut for terminal connection 1.5~2.0Nm
端子连接螺母 扭矩 1.5~2.0Nm
1.Disassemble the terminal，
and connect the wires by marking
打开端子后，将导线按标识接入
2.Screw up the wire 06~0.8Nm
拧紧螺丝使导线压紧 扭矩 0.6~0.8Nm
16A3P for less than 600W fix and dimmable version.
3芯线用在小于600W的固定式和可调光产品中，连接灯头和电
箱。
5 core Cable diameter
5芯线径
∅8~∅9.5
∅9.5~∅12.5（∅12.5 sealing
ring attached随附∅12.5密封
圈）
3 core Cable diameter
3芯线径
∅Cable diameter
∅7.5~∅9.5
线材直径
16A5P for 820W,770W,750W,700W,600W fix and dimmable version.
5芯线用在固定式和可调光的820W,770W,750W,700W,600W产品
中，连接灯头和电箱。
L: +
N: -
PE: Grounding + Shield layer
Male
公端
Female
母端
Group 1
1: +
N: -
Group 2
2: +
3: -
L N
EVP632 Mains In
EVP632电源输入
LengthofcablebetweendriverboxandluminairePCB/m
电器箱与灯头之间的电缆线长度
/m
TypeofGearBox
适用电箱
Shieldforcable
电缆线屏蔽层
0<L≤30 ALL No
30<L≤50 ALL Yes
L>50 Notallowed
∅7~∅9mm
60245 IEC57 3X1.0mm
2
<12.5ohm/km
3芯橡胶护套软线
1. The different IP connectors are used in gear tray box and luminaire. Do not disassemble them.
电箱输出与灯头使用了两对不同接头，有防误接作用，请勿拆随意卸接头。
2. The wire connection method is determined by local electrical codes and regulations.
Typical method is to use either wire nuts or screw terminal blocks.
接线方式取决于当地的电气法规及规定，一般是使用螺纹旋转型导线连接器或螺钉接线端子。

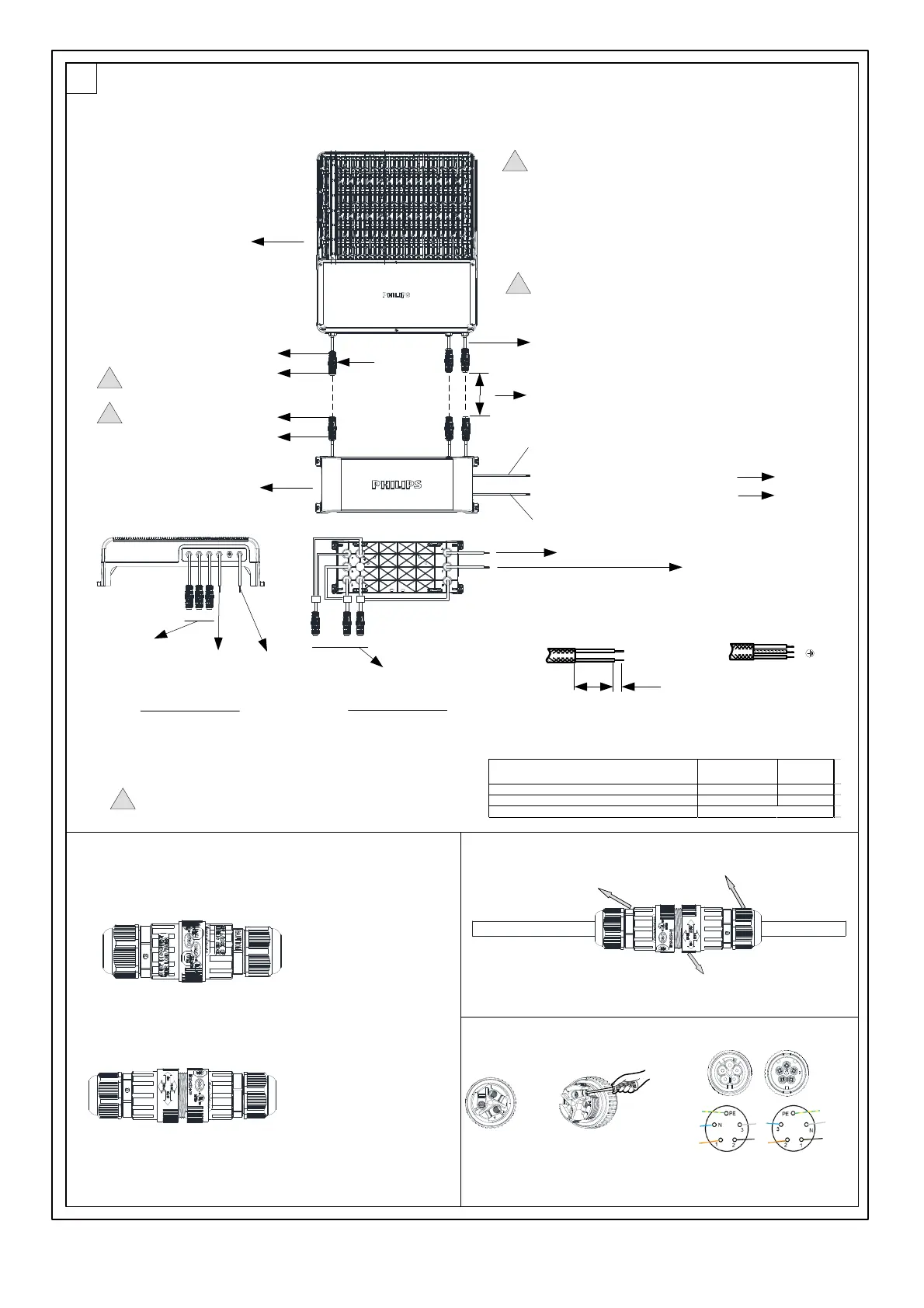

Connection of split type luminaire of BVP632
分体式灯具BVP632的连接
Interface to 1-10V/DALI control（remark: Fix version does not have this cable)
1-10V/DALI 控制的接口(备注：Fix 版本无此线缆）
Interface to Power cable
供电电缆的接口
BVP632
EVP632 S/EVP632 L Gear box
EVP632 S/EVP632 L电箱
5 pole 1 mm² Multi-core with rubber insulated
layer ，Length: 1.5m
5X1.0mm
2
5芯橡胶护套软线，长度：1.5m
Warning: Water proof is needed for cable connection, if
without proper water proof, the water ingression will
cause luminaire short circuit or other failures. Water
proof connection box is recommend, which is not lower
than IP66.
警告：电缆线防水措施是必须的，如果没有提供恰当
的防水措施，水进入灯具会引起短路或其它故障。推
荐防水接线盒等级不能低于IP66.
Recommend: Connect
with above IP65
Connection box
推荐：用IP65以上接
线盒连接
Notice: Connection box is not provided by Signify.
注意：Signify不提供接线盒
Cabel 2x1.0mm
2 ,
Cabel 3x1.0mm
2 ,
!
Length of cable between of driver box and luminaire/m(See table *）
电器箱与灯头之间的电缆线长度/米(见附表*)
IP connector
防水连接器
L
EVP632 L Gear box
EVP632 L电箱
Interface to Power cable
供电电缆的接口
Out put
输出
!
7
60245IEC57
2 pole 1 mm² Multi-core with
rubber insulated layer
2芯橡胶护套软线
2X1.0mm
2
Ø7~9mm
50 mm
8 mm
Notice: Correct connection for polarities
注意：正确的极性连接
EVP632 control In
EVP632 控制输入
!
Page 5 of 12
Table*
Remark: The female is usually removed and
stored in a small PE bag.
备注：母插通常会卸下装在一小的PE袋中。
Female 母插
Male公插
Remark: The male is usually removed and
stored in a small PE bag.
备注：公插通常会卸下装在一小的PE袋中。
Male 公插
Female 母插
!
!
EVP632 S Gear box
EVP632 S 电箱
Out put
输出
Interface to 1-10V/DALI control
1-10V/DALI 控制的接口
Interface to 1-10V/DALI control
1-10V/DALI 控制的接口
Interface to Power cable
供电电缆的接口
1 2 3
1 2 3
Length:1.5m ,leading cable ,without connector
Length:1.5m ,leading cable ,without connector
