Philips AUT2015 - Connect water outlets and drain (part 1)

7
of the faucet. Insert the other end of the 1/4" pipe into the RO ltered water outlet
hole in the back of the system until it stops. Use a clip to secure the pipe at the hole.

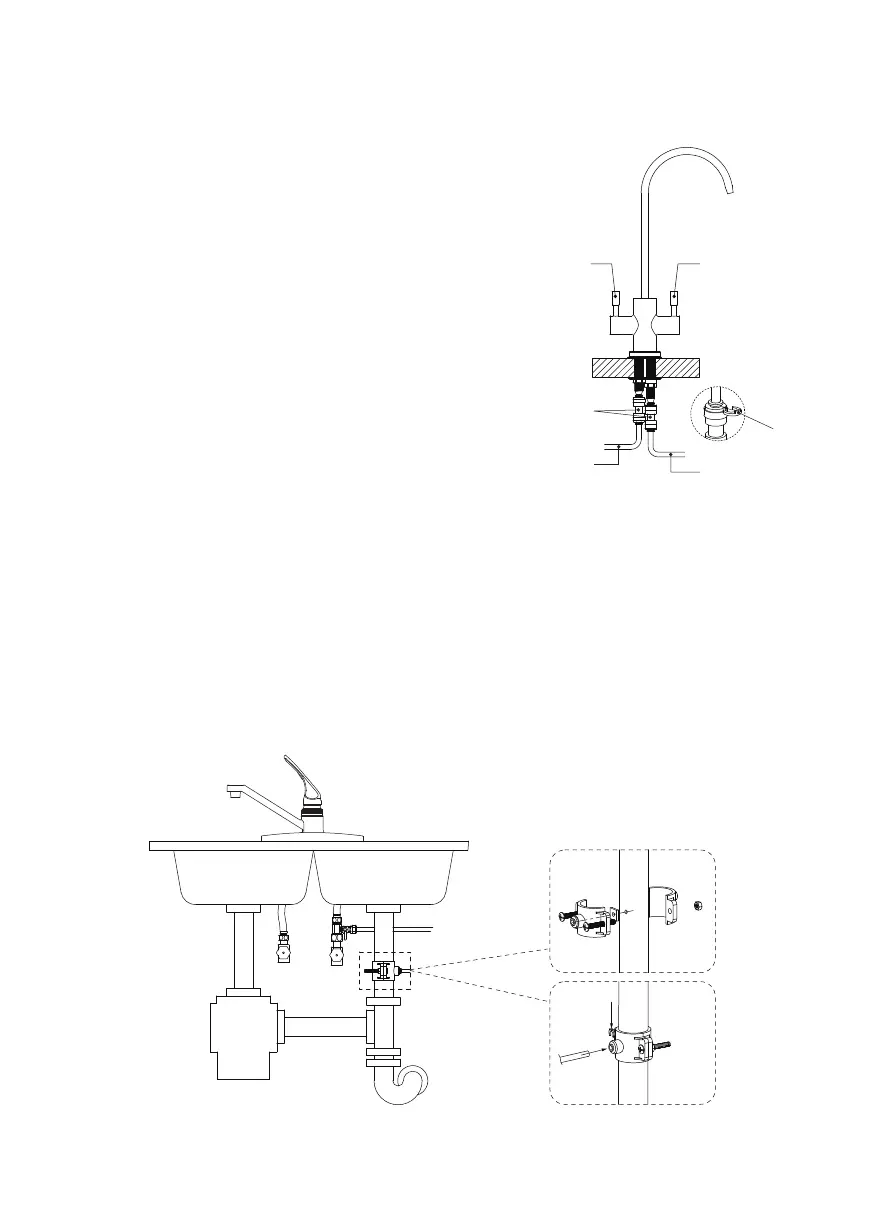

Cut another 1/4” pipe with the pipe cutter. Insert
one end of the pipe into a quick connect tting,
and connect the quick connect tting on the
shorter stem of the faucet. Insert the other end
of the 1/4" pipe into the ltered water outlet
hole in the back of the system until it stops.
Use a clip to secure the pipe at the hole.
d. Connect the drain water outlet and the drain connector
Identify the drain outlet location. Drill a 6.5mm hole on the drain pipe. Install the
drain connector according to the diagram. Securely tighten the nuts. Cut a section
of 1/4” pipe. Insert one end of the pipe into the drain outlet hole in the back of
the system until it stops. Use a clip to secure the pipe at the hole. Insert the other
end of the pipe into the drain connector.
Quick connect
ttings
Filtered water
outlet pipe
RO ltered water
outlet pipe
Filtered water
RO ltered water
Clip
(1)
(2)
(3)
