Philips AZ1010 - Service Position and Tape Transport; General Service Position; Tape Transport Service Position

3-5
CS 49 114
SERVICE HINTS

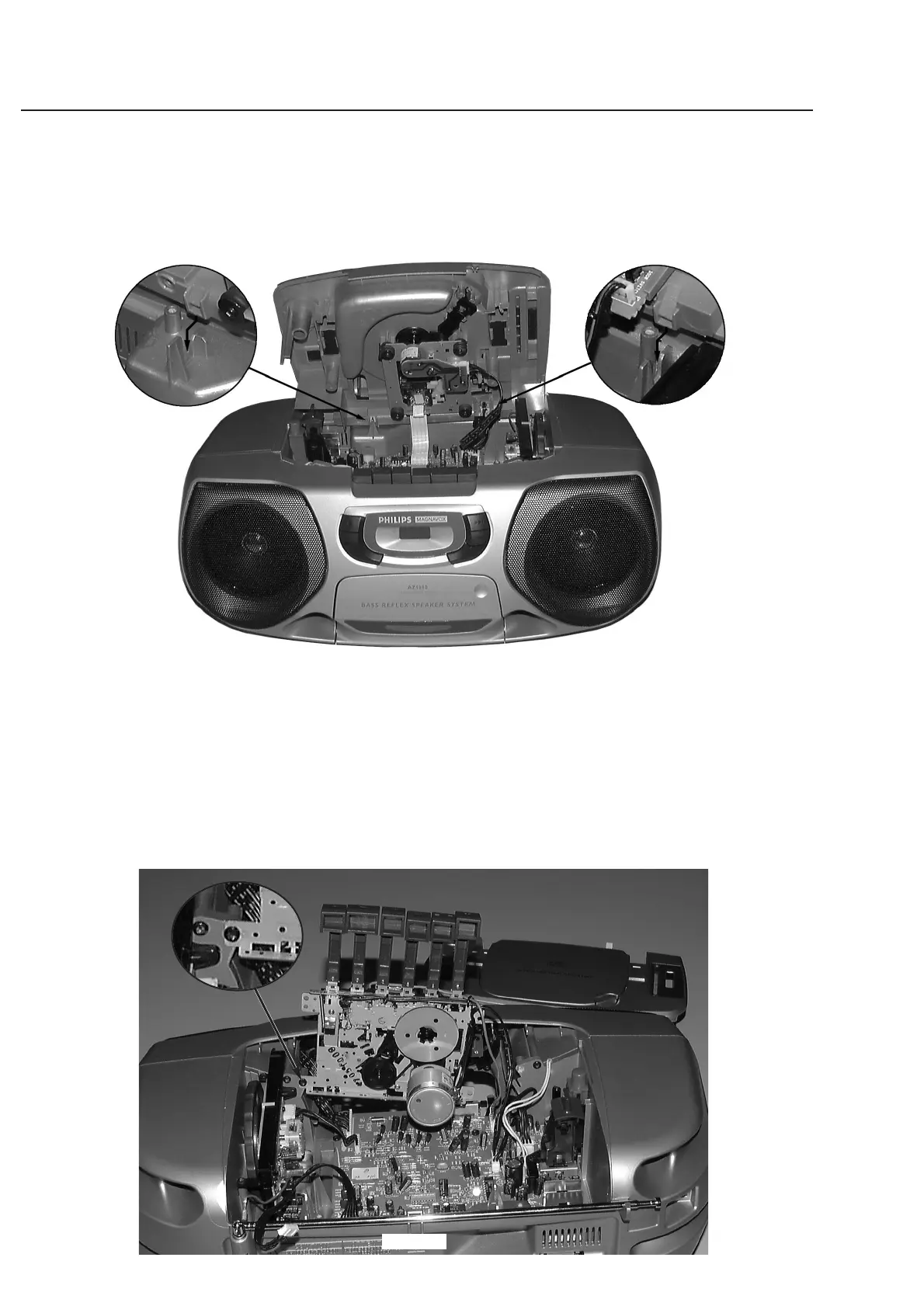

General Service position
picture 12
For repairs on: CD failures
Rec/Pb-amplifier
Power-amplifier
Power supply
Tuner Board
Service position Tape Transport
picture 13
For repairs on the Tape Transport or for
adjustment of the tape speed:
• Dismantle tape transport as described in
chapter 3-3.
• Fix tape transport on cabinet with one
screw as shown in picture 13.
• Connect cables on Combi Board again.
