Philips AZ1010 - Exploded Views; Mechanical Parts Identification

EVA-EV main, 071097
MODE
VOLTAGE
SELECTOR
COMBI BOARD
TAPE TRANSPORT
CDS-83VBF-77
FRONT BOARD
DBB
VOLUME
TUNER
BOARD
1007
5001
1006
1002
1003
501
Pl. Torx
3x10
(4x)
Pl. Torx
2,6x10
M2x4
(6x)
M2x3
M2,6x6
8x5x0,3
Pl. Torx
3x10
(4x)
Pl. Torx
2x8
(3x)
Pl. Torx
3x10
(4x)
Pl. Torx
3x10
(2x)
Pl. Torx
3x16
(2x)
Pl. Torx
2x8
(2x)
Pl. Torx
3x10
(2x)
Pl. Torx
3x16
(4x)
Pl. Torx
3x25
Pl. Torx
3x10
(4x)
Pl. Torx
3x25
(2x)
Pl. Torx
3x25
(4x)
Pl. Torx
3x10
(3x)
Pl. Torx
3x16
(2x)
Pl. Torx
3x25
(3x batt.comp.)
Pl. Torx
3x30
(2x)
Pl. Torx
3x10
(2x)
Pl. Torx
3x25
(2x)
401
402
403
404
406
411
407
408
409
412
416
417
(2x)
418
413
414
419
504
506
503
502
507
511
509
510
513
2x
514
508
512
517
516
518
519
421
8-1 8-1
CS 49 128

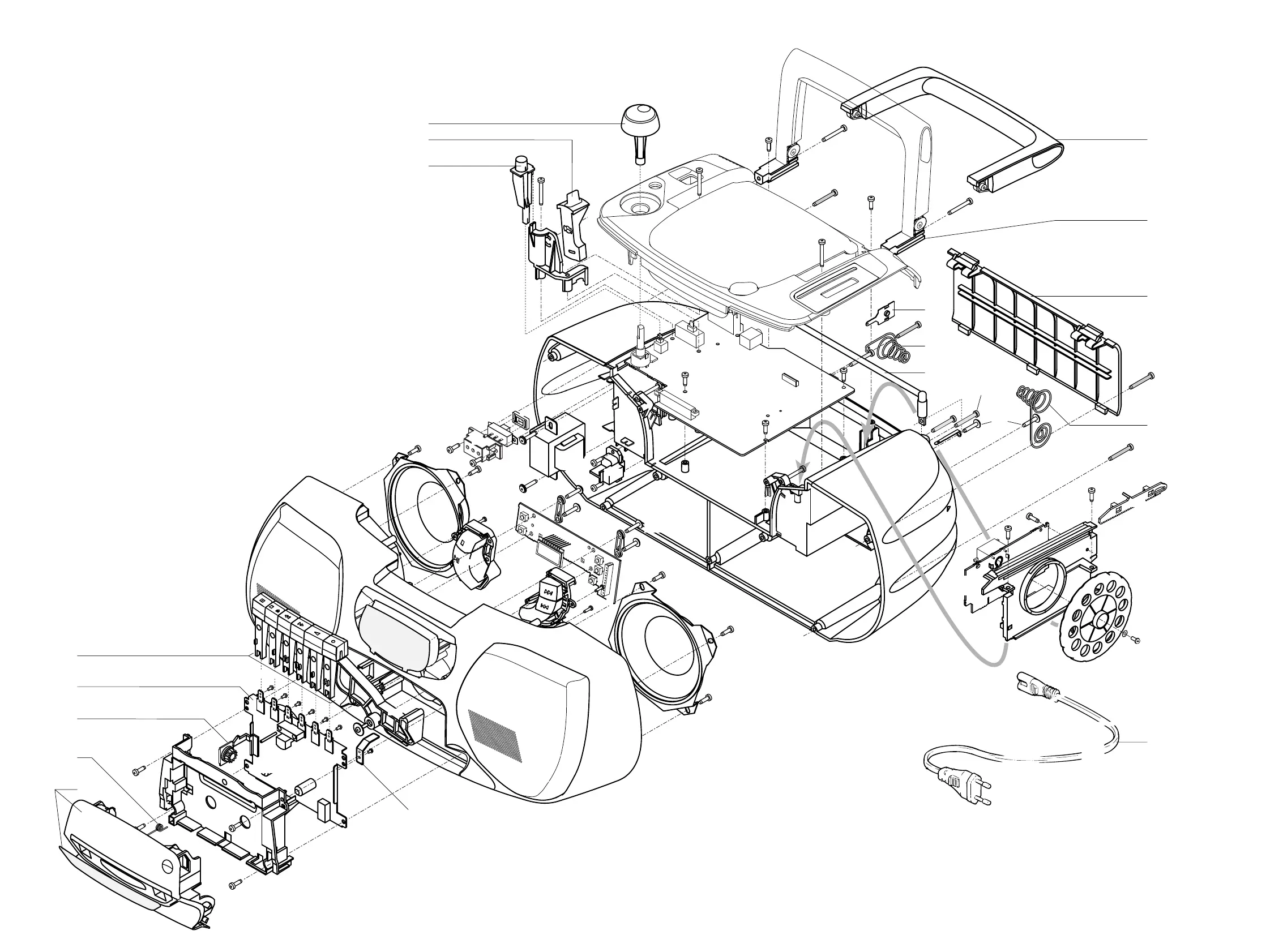

EXPLODED VIEW / DRAWING 1
MECHANICAL PARTS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
401 4822 410 11403 KEY-SET, TAPE TRANSPORT
402 4822 691 10612 TAPE TRANSPORT, CDS-83VBF-77
403 4822 529 10322 DAMPER, DOOR
404 4822 492 42709 SPRING, OPEN CASSETTE DOOR
406 4822 443 10832 CASSETTE DOOR ASSY, BLACK
406 4822 443 10831 CASSETTE DOOR ASSY, SILVER
407 4822 410 11404 KNOB-VOLUME
408 4822 410 11406 KNOB-MODE
409 4822 410 11405 KNOB-DBB
411 4822 492 11061 SPRING, RECORD
412 4822 290 80313 CONTACT PLATE, BATTERRY +
413 4822 492 51961 SPRING, BATTERY -
414 4822 303 14038 TELESCOPIC AERIAL
416 4822 498 10673 CARRYING HANDLE
417 4822 402 10856 MOUNTING BRACKET HANDLE
418 4822 423 41255 BATTERY DOOR, BLACK
418 4822 443 10818 BATTERY DOOR, SILVER
419 4822 492 51733 SPRING BATTERY INTERCONNECTION
421 ! 4822 321 10886 MAINS CORD, GB
421 ! 4822 321 11215 MAINS CORD, IEC
421 ! 4822 321 11231 MAINS CORD, USA
421 ! 4822 321 10954 MAINS CORD, AUSTRALIA
1002 4822 240 10254 LOUDSPEAKER, 4“, 4 OHM
1003 4822 240 10254 LOUDSPEAKER, 4“, 4 OHM
1006 ! 4822 265 20318 MAINS SOCKET, IEC
1006 ! 4822 265 20706 MAINS SOCKET, UL POLARIZED, USA
1007 ! 4822 277 21794 SWITCH SLIDE (VOLTAGE SELECT.)
5001 ! 4822 146 10877 TRANSFORMER MAINS, /00/04/05/14
5001 ! 4822 146 10875 TRANSFORMER MAINS, /01/11/11H
5001 ! 4822 146 10874 TRANSFORMER MAINS, /10 AUSTRALIA
5001 ! 4822 146 10876 TRANSFORMER MAINS, /17 USA
