Philips AZ9015 - Mechanical Partslist; Exploded View

MECHANICAL PARTSLIST
401 8240 009 25920 DOOR-CD-2J12-LAC-PRI ASSEMBLY for AZ9015
401 8240 009 26010 DOOR-CD-2M45-PRI ASSEMBLY for AZ9225
401 8240 009 25950 DOOR-CD-2T-LAC-PRI ASSEMBLY for AZT9230
402 3103 308 65050 TUNER BOARD ASSEMBLY
403 3103 304 68080 DOOR-BATTERY-2 for AZ9015
403 3103 307 97920 DOOR-BATTERY-2-LAC for AZ9225
403 3103 307 98990 DOOR-BATTERY-2T-LAC for AZT9230
404 3103 304 68390 CABINET-2-O for AZ9015
404 3103 307 99040 CABINET-2-O-LAC for AZ9225
404 3103 307 98980 CABINET-2T-LAC for AZT9230
406 3103 304 68060 LEVER-OPEN-2
407 3103 304 68110 SLIDER-RESUME-2
408 3103 307 97940 SLIDER-OPEN-2-LAC
409 3103 304 68070 HOLDER-OPEN-2
411 3103 301 06500 SPRING-SLIDER-OPEN-2
412 3103 307 99050 BOTTOM-2-O-PRI for AZ9015, AZ9225
412 3103 307 99000 BOTTOM-2T-PRI for AZT9230
413 3103 307 98040 BUTTON-SET-ALL-2J45-LAC-PRI for AZ9015, AZ9225
413 3103 307 98310 BUTTON-SET-ALL-2T-PRI for AZT9230
414 3103 301 06520 SPRING-OPEN-LONG-L-2C45 for AZ9015, AZ9225
414 3103 301 06540 SPRING-OPEN-LONG-L-2T for AZT9230
416 3103 301 06510 SPRING-OPEN-LONG-R-2C45 for AZ9015, AZ9225
416 3103 301 06530 SPRING-OPEN-LONG-R-2T for AZT9230
417 3103 304 68090 BRAKE-2
418 3103 301 45180 SPRING-BATTERY-SHORT-2
419 9305 022 13208 CD-DRIVE VAM2103/08
421 4822 402 10897 DAMPER-CD DRIVE
422 3103 301 45200 SPRING-BATTERY-MINUS-2
423 3103 301 45190 SPRING-BATTERY-PLUS-2
424 3103 301 45210 SPRING-BATTERY-CHARGE-2
426 3103 308 53240 BUZZER PIEZO 7BB-20-3 WIRE
427 4822 462 41819 RUBBER FOOT
4822 502 13872 SCREW 1.4x5 PLASTITE
3103 300 41570 SCREW 1.4x2.5 PLASTITE-CR
3103 300 41580 SCREW 1.7x9 PLASTITE-CR
5-1 5-1
CS 46 713
403
402
401
416
414
413
501
502
SCREW 1.4x2.5
PLASTITE-CR (7x)
VAM2103/08
417
418
422
423
424
419
426
427
(2x)
421
(3x)
406
407
404
408
409
411
412
SCREW 1.4x5
PLASTITE
SCREW 1.7x9
PLASTITE-CR (6x)
TUNER BOARD

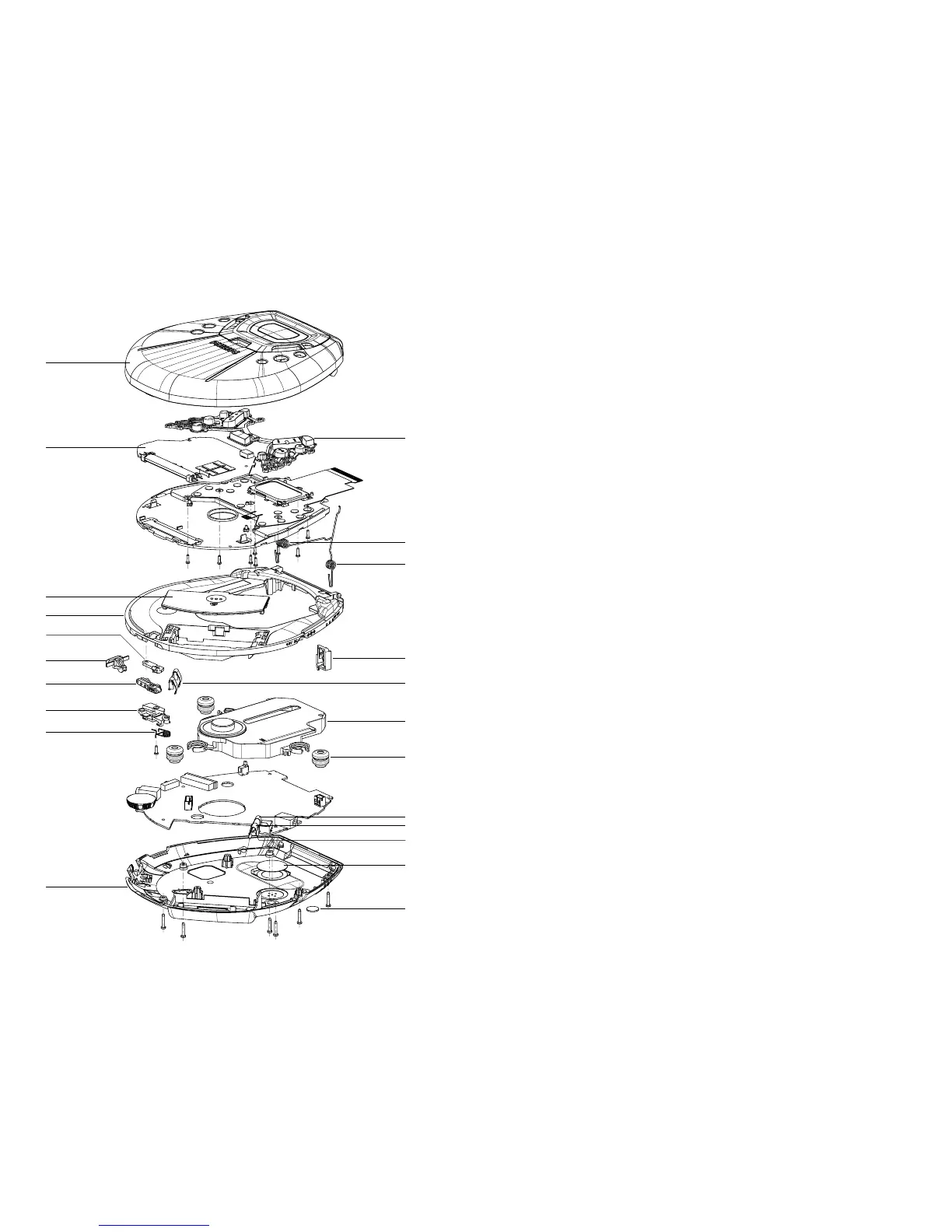

EXPLODED VIEW
