Philips AZ9218 - Exploded View; Mechanical Partslist

MECHANICAL PARTSLIST
401 3103 304 68080 DOOR-BATTERY-2 (not for translucent versions)
401 3103 307 97920 DOOR-BATTERY-2-LAC (only for translucent versions)
402 3103 307 99250 CABINET2-ASSEMBLY (not for translucent versions)
402 3103 307 99280 CABINET2-ASSEMBLY-LAC (only for translucent versions)
403 3103 304 68060 LEVER-OPEN-2
404 3103 304 68110 SLIDER-RESUME-2
406 3103 307 97940 SLIDER-OPEN-2-LAC
407 3103 304 68070 HOLDER-OPEN-2
408 3103 301 06500 SPRING-SLIDER-OPEN-2
409 3103 307 99270 BOTTOM-ASSEMBLY (only for USA version)
409 3103 307 99260 BOTTOM-PRI-ASSEMBLY (not for USA version)
411 3103 301 06520 SPRING-OPEN-LONG-L-2C45
412 3103 301 06510 SPRING-OPEN-LONG-R-2C45
413 3103 304 68090 BRAKE-2
414 3103 301 45180 SPRING-BATTERY-SHORT-2
416 9305 022 13208 CD-DRIVE VAM2103/08
417 4822 402 10897 DAMPER-CD DRIVE
418 3103 301 45200 SPRING-BATTERY-MINUS-2
419 3103 301 45190 SPRING-BATTERY-PLUS-2
421 3103 301 45210 SPRING-BATTERY-CHARGE-2
422 4822 462 41819 RUBBER FOOT
4822 502 13872 SCREW 1.4x5 PLASTITE
3103 300 41570 SCREW 1.4x2.5 PLASTITE-CR
3103 300 41580 SCREW 1.7x9 PLASTITE-CR
5-1 5-1
CS 46 679
For different versions of
CD-door and button-set
see next pages.
401
412
411
501
SCREW 1.4x2.5
PLASTITE-CR (7x)
VAM2103/08
413
414
418
419
421
416
422
(2x)
417
(3x)
403
404
402
406
407
408
409
SCREW 1.4x5
PLASTITE
SCREW 1.7x9
PLASTITE-CR (6x)

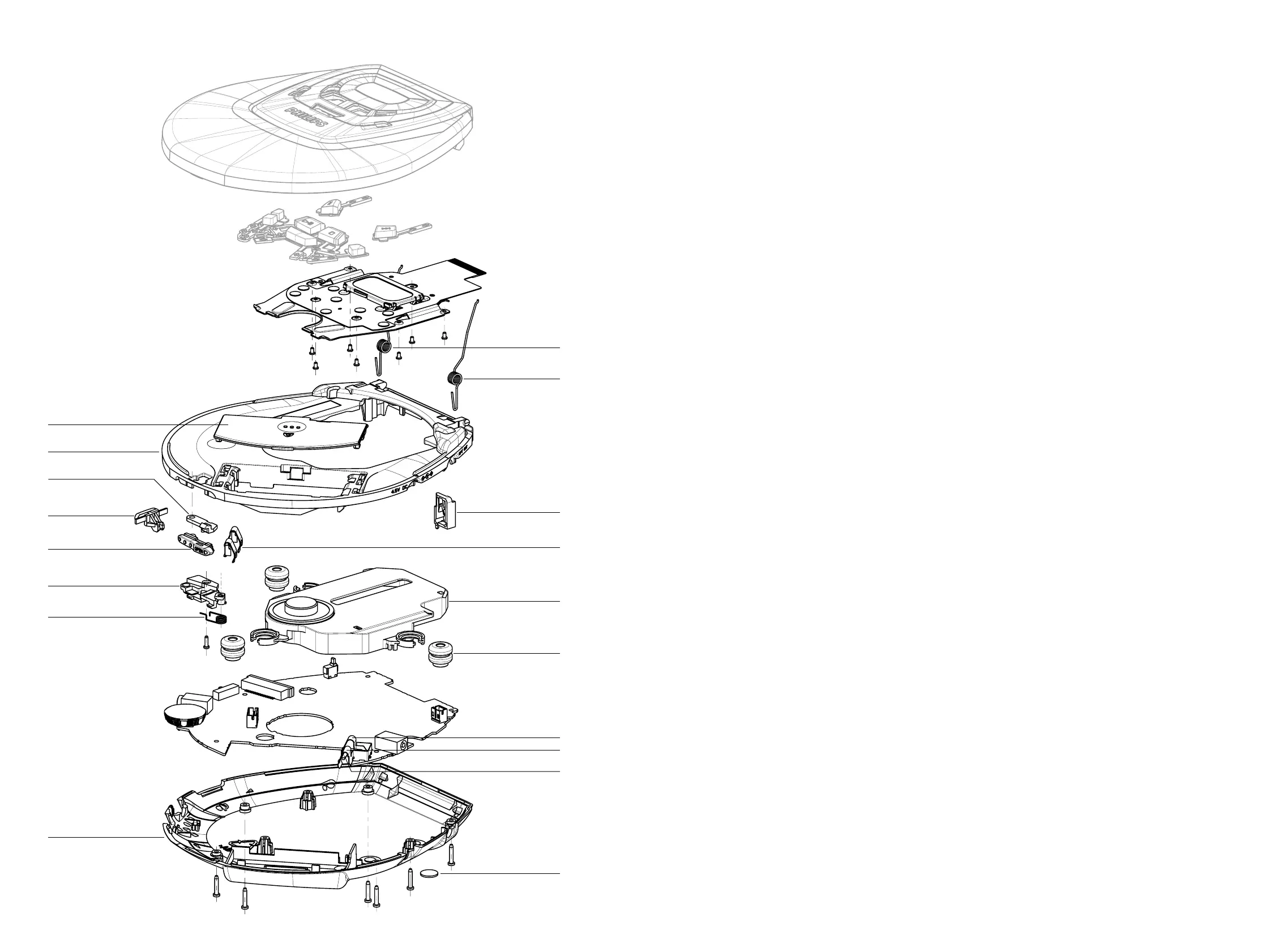

EXPLODED VIEW
