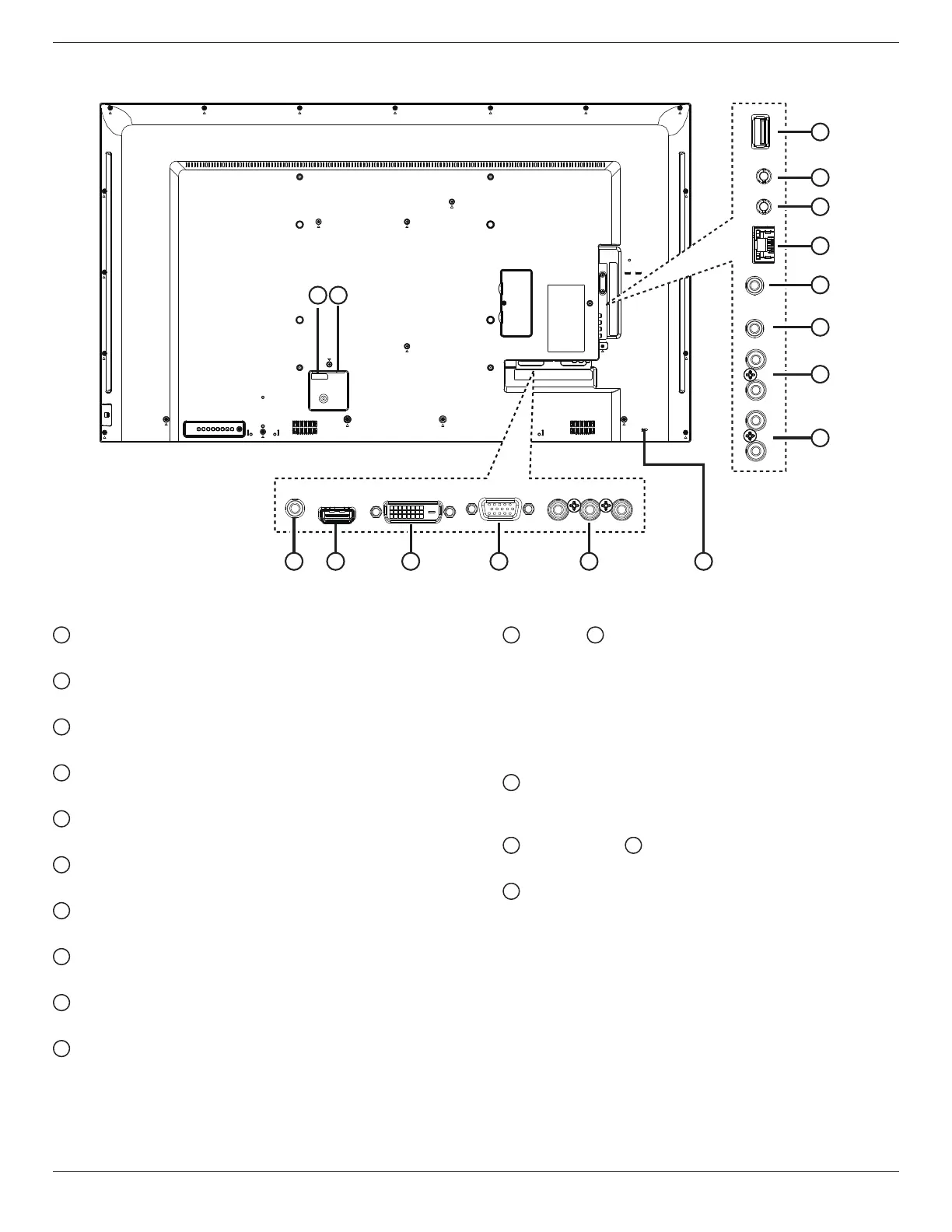

2.2. Input/Output Terminals
3 4
6
5
7
Y Pb Pr
2 1
8
9
10
11
12
13
14
15
16
LRL R
INOUTRJ45IN
USB
OUT
1
MAIN POWER SWITCH
Switch the main power on/off.
2
AC IN
AC power input from the wall outlet.
3
PC LINE IN
Audio input from VGA source (3.5mm stereo phone).
4
HDMI IN
HDMI video / audio input.
5
DVI-D IN
DVI-D video input.
6
VGA IN (D-Sub)
VGA video input.
7
Y/CVBS
Video source input.
8
Security Lock
Used for security and theft prevention.
9
AUDIO IN
Audio input from external AV device (RCA).
10
AUDIO OUT
Audio output to external AV device.
11
IR OUT/
12
IR IN
IR signal output /input for the loop-through function.
NOTES:
• This display’s remote
control sensor will stop working if the jack
[IR IN] is connected.
• To remotely control your A/V device via this display, refer to
page 12 for IR Pass Through connection.
13
RJ-45
LAN control function for the use of remote control signal from
control center.
14
RS232 OUT /
15
RS232 IN
RS232C network output / input for the loop-through function.
16
USB PORT
Connect your USB storage device.
To Next Page
