7-1

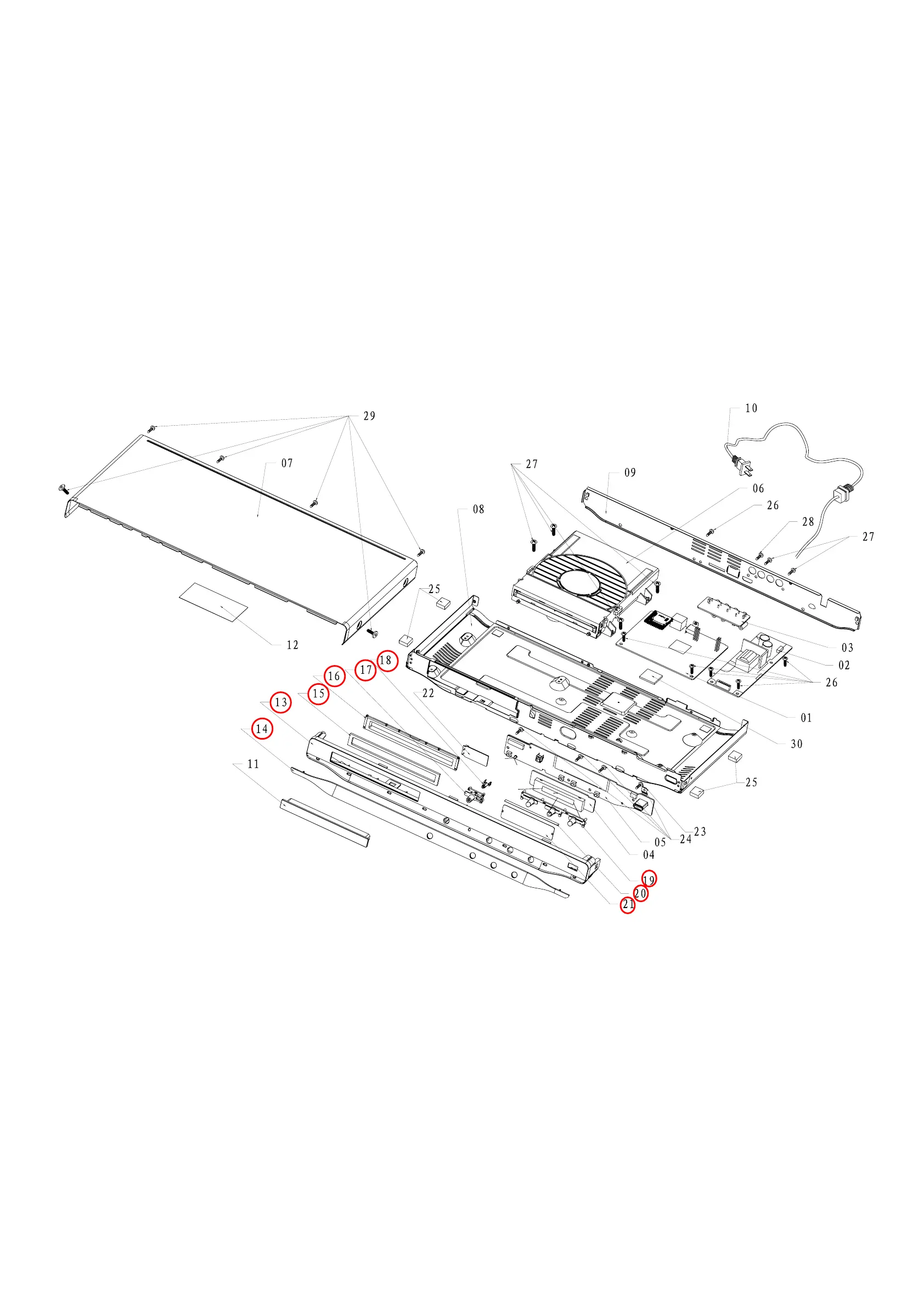

Exploded view for BDP5200/12/05/51/98/55/X78:
It is a general mechanical exploded view for BDP5200/12/05/51/98/55, pls refer to the model
set for detailed information.ASSY1 includes components:14.13.15.16.17.18.19.20.21
