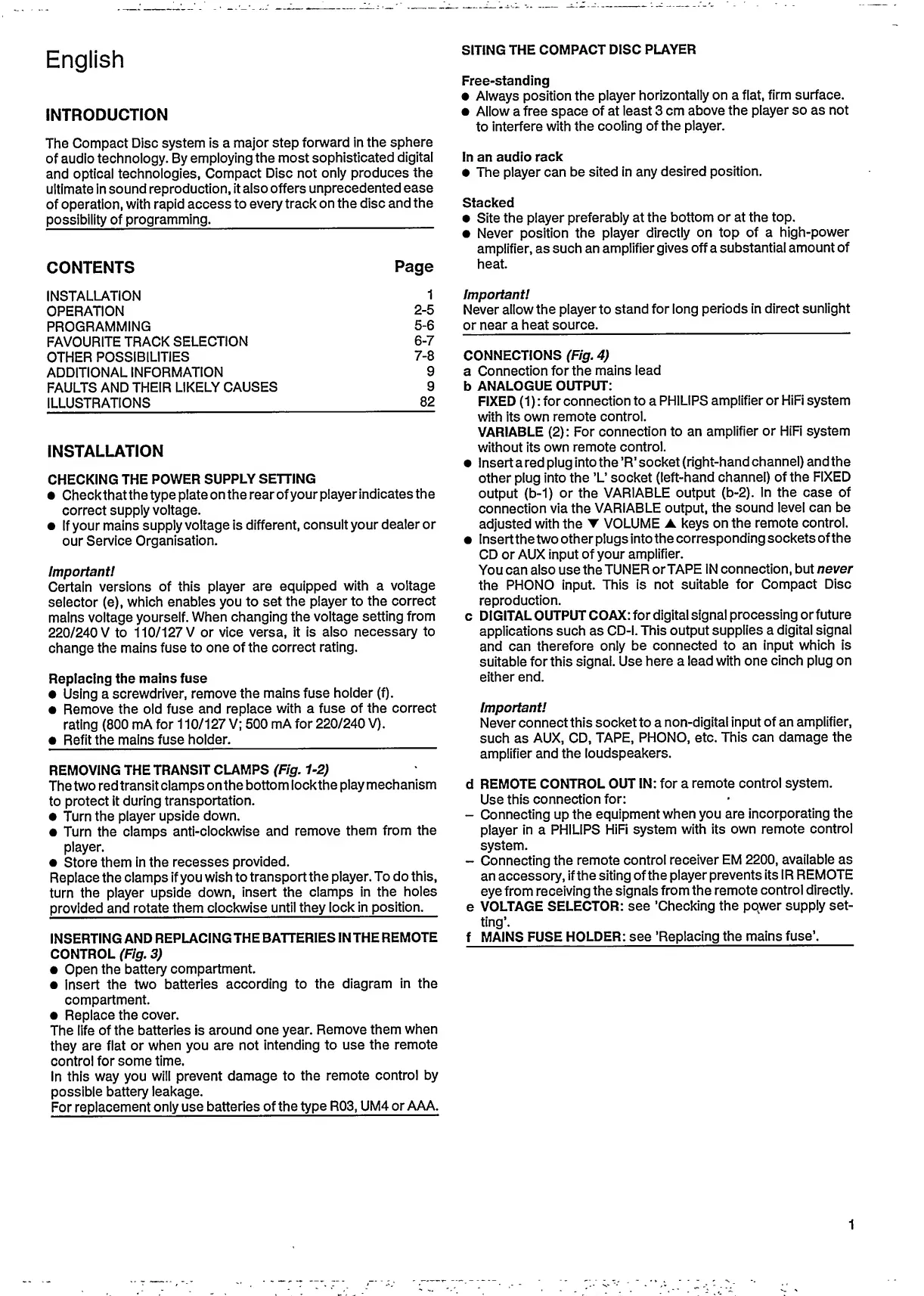

INTRODUCTION
The
Compact
Disc
system
is
a
major
step
forward
in
the
sphere
of
audio
technology.
By
employing
the
most
sophisticated
digital
and
optical
technologies,
Compact
Disc
not
only
produces
the
ultimate
in
sound
reproduction,
it
also
offers
unprecedented
ease
of
operation,
with
rapid
access
to
every
track
on
the
disc
and
the
possibility
of
programming._
CONTENTS
Page
INSTALLATION
1
OPERATION
2-5
PROGRAMMING
5-6
FAVOURITE
TRACK
SELECTION
6-7
OTHER
POSSIBILITIES
7-8
ADDITIONAL
INFORMATION
9
FAULTS
AND
THEIR
LIKELY
CAUSES
9
ILLUSTRATIONS
82
INSTALLATION
CHECKING
THE
POWER
SUPPLY
SETTING
Check
that
the
type
plate
on
the
rear
of
your
player
indicates
the
correct
supply
voltage.
If
your
mains
supply
voltage
is
different,
consult
your
dealer
or
our
Service
Organisation.
Important!
Certain
versions
of
this
player
are
equipped
with
a
voltage
selector
(e),
which
enables
you
to
set
the
player
to
the
correct
mains
voltage
yourself.
When
changing
the
voltage
setting
from
220/240
V
to
110/127
V
or
vice
versa,
it
is
also
necessary
to
change
the
mains
fuse
to
one
of
the
correct
rating.
Replacing
the
mains
fuse
Using
a
screwdriver,
remove
the
mains
fuse
holder
(f).
Remove
the
old
fuse
and
replace
with
a
fuse
of
the
correct
rating
(800
mA
for
110/127
V;
500
mA
for
220/240
V).
Refit
the
mains
fuse
holder.
REMOVING
THE
TRANSIT
CLAMPS
(Fig.
1-2)
The
two
red
transit
clamps
on
the
bottom
lockthe
play
mechanism
to
protect
it
during
transportation.
Turn
the
player
upside
down.
Turn
the
clamps
anti-clockwise
and
remove
them
from
the
player.
Store
them
in
the
recesses
provided.
Replace
the
clamps
if
you
wish
to
transport
the
player.
To
do
this,
turn
the
player
upside
down,
insert
the
clamps
in
the
holes
provided
and
rotate
them
clockwise
until
they
lock
in
position.
INSERTING
AND
REPLACING
THE
BATTERIES
IN
THE
REMOTE
CONTROL
(Fig.
3)
Open
the
battery
compartment.
Insert
the
two
batteries
according
to
the
diagram
in
the
compartment.
Replace
the
cover.
The
life
of
the
batteries
is
around
one
year.
Remove
them
when
they
are
flat
or
when
you
are
not
intending
to
use
the
remote
control
for
some
time.
In
this
way
you
will
prevent
damage
to
the
remote
control
by
possible
battery
leakage.
For
replacement
only
use
batteries
of
the
type
R03,
UM4
or
AAA.
SITING
THE
COMPACT
DISC
PLAYER
Free-standing
Always
position
the
player
horizontally
on
a
flat,
firm
surface.
Allow
a
free
space
of
at
least
3
cm
above
the
player
so
as
not
to
interfere
with
the
cooling
of
the
player.
In
an
audio
rack
The
player
can
be
sited
in
any
desired
position.
Stacked
Site
the
player
preferably
at
the
bottom
or
at
the
top.
Never
position
the
player
directly
on
top
of
a
high-power
amplifier,
as
such
an
amplifier
gives
off
a
substantial
amount
of
heat.
Important!
Never
allow
the
player
to
stand
for
long
periods
in
direct
sunlight
or
near
a
heat
source.
CONNECTIONS
(Fig.
4)
a
Connection
for
the
mains
lead
b
ANALOGUE
OUTPUT:
FIXED
(1):
for
connection
to
a
PHILIPS
amplifier
or
HiFi
system
with
its
own
remote
control.
VARIABLE
(2):
For
connection
to
an
amplifier
or
HiFi
system
without
its
own
remote
control.
Insert
a
red
plug
into
the
’R’
socket
(right-hand
channel)
and
the
other
plug
into
the
’L’
socket
(left-hand
channel)
of
the
FIXED
output
(b-1)
or
the
VARIABLE
output
(b-2).
In
the
case
of
connection
via
the
VARIABLE
output,
the
sound
level
can
be
adjusted
with
the
VOLUME
keys
on
the
remote
control.
Insert
the
two
otherplugs
into
the
corresponding
sockets
of
the
CD
or
AUX
input
of
your
amplifier.
You
can
also
use
the
TUNER
orTAPE
IN
connection,
but
never
the
PHONO
input.
This
is
not
suitable
for
Compact
Disc
reproduction.
c
DIGITAL
OUTPUT
COAX:
for
digital
signal
processing
or
future
applications
such
as
CD-I.
This
output
supplies
a
digital
signal
and
can
therefore
only
be
connected
to
an
input
which
is
suitable
for
this
signal.
Use
here
a
lead
with
one
cinch
plug
on
either
end.
Important!
Never
connect
this
socket
to
a
non-digital
input
of
an
amplifier,
such
as
AUX,
CD,
TAPE,
PHONO,
etc.
This
can
damage
the
amplifier
and
the
loudspeakers.
d
REMOTE
CONTROL
OUT
IN:
for
a
remote
control
system.
Use
this
connection
for:
-
Connecting
up
the
equipment
when
you
are
incorporating
the
player
in
a
PHILIPS
HiFi
system
with
its
own
remote
control
system.
-
Connecting
the
remote
control
receiver
EM
2200,
available
as
an
accessory,
if
the
siting
of
the
player
prevents
its
IR
REMOTE
eye
from
receiving
the
signals
from
the
remote
control
directly.
e
VOLTAGE
SELECTOR:
see
'Checking
the
pqwer
supply
set¬
ting’.
f
MAINS
FUSE
HOLDER:
see
'Replacing
the
mains
fuse’.
1
