Philips CD304 MK II - Exploded View: Tray Mechanism

gSE
DIGITAL AUDIO
TRAY
101
102
103
104
105
106
107
108
109
110
112
114
115
116
117
Note
4822 492 51628
4822 528 80977
4822 276 11277
4822 492 63071
4822 466 81483
4822 492 32396
4822 528 10511 for
C.D.M.-1
4822 532 11114
4822 535 91709
4822 492 32404
4822 466 60965
4822 492 32395
4822 530 80075
4822 532 51519
4822 522 31777
118
119
120
121
- 122
123
124
126
127
128
129
131
- 4822 402 60909
4822 502 11699
4822 535 91712
4822 532 51521
4822 535 91719
4822 532 51518
4822 535 91711
4822 492 51627
4822 444 40113
4822 528 50177
4822 358 30335 —
4822 361 20483
For mechanical parts of the C.D. mechanism see Service
Manual C.D.M.-1.
101

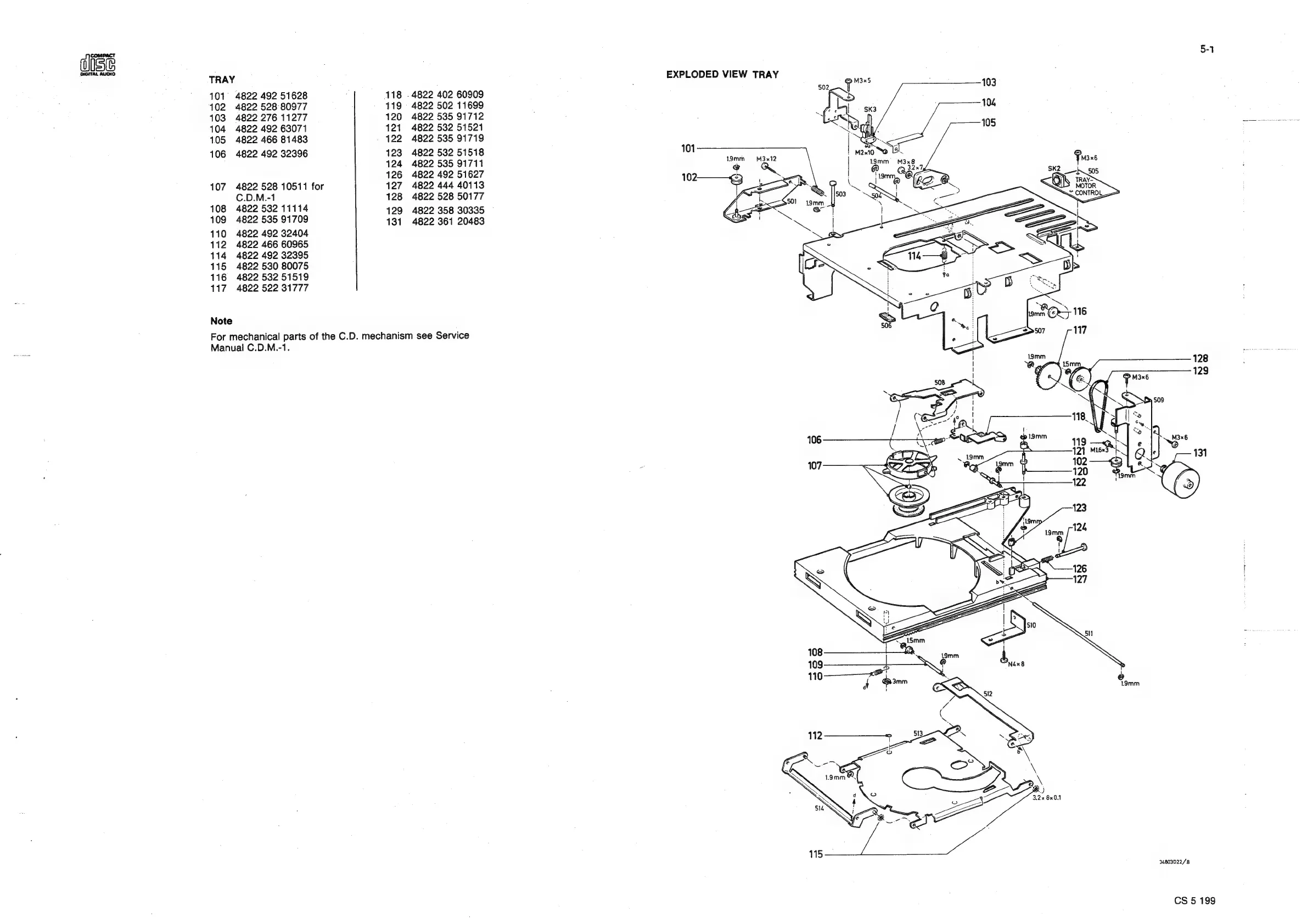

EXPLODED VIEW TRAY
19mm
5-1
34803D22/B
CS 5 199
