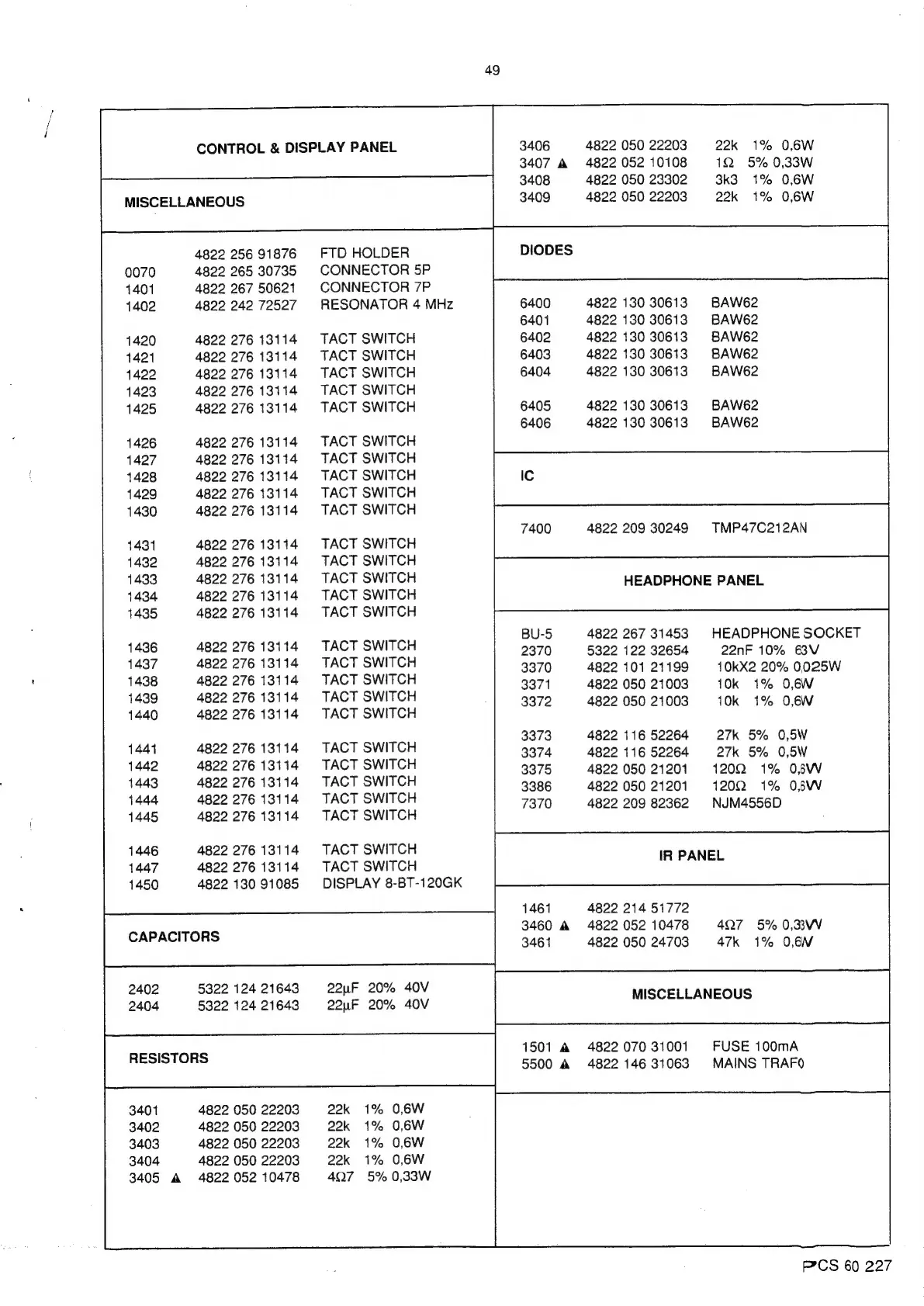

Philips CD690 - Electrical Partslist (Control & Display Panel); Control & Display Panel Components; Headphone;IR Panel Components; Miscellaneous Electrical Components

49
3406 4822 050 22203 22k 1% 0,6W
3407 A 4822 052 10108 1Q 5% 0,33W
3408 4822 050 23302 3k3. 1% 0,6W
4822 050 22203 22k 1% 0,6W
CONTROL & DISPLAY PANEL
MISCELLANEOUS
4822 256 91876 FTD HOLDER
0070 4822 265 30735 CONNECTOR 5P
1401 4822 267 50621 CONNECTOR 7P
4822 242 72527 RESONATOR 4 MHz
6400 4822 130 30613 BAW62
6401 4822 130 30613 BAW62
6402 4822 130 30613 BAW62
6403 4822 130 30613 BAW62
4822 130 30613
1420 4822 276 13114 TACT SWITCH
1421 4822 276 13114 TACT SWITCH
1422 4822 276 13114 TACT SWITCH
1423 4822 276 13114 TACT SWITCH
4822 276 13114 TACT SWITCH
6405 4822 130 30613 BAW62
6406 4822 130 30613 BAW62
7400 4822 209 30249 TMP47C212AN
HEADPHONE PANEL
BU-5 4822 267 31453 HEADPHONE SOCKET
2370 5322 122 32654 22nF 10% 63V
3370 4822 101 21199 10kX2 20% 0.025W
3371 4822 050 21003 10k 1% 0,6W
3372 4822 050 21003 10k 1% 0,6W
1426 4822 276 13114 TACT SWITCH
1427 4822 276 13114 TACT SWITCH
1428 4822 276 13114 TACT SWITCH
1429 4822 276 13114 TACT SWITCH
4822 276 13114 TACT SWITCH
1431 4822 276 13114. TACT SWITCH
1432 4822 276 13114 TACT SWITCH
1433 4822 276 13114. TACT SWITCH
1434 4822 276 138114 TACT SWITCH
4822 276 13114 TACT SWITCH
1436 4822 276 13114 TACT SWITCH
1437 4822 276 13114. TACT SWITCH
1438 4822 276 13114 TACT SWITCH
1439 4822 276 13114 TACT SWITCH
4822 276 13114 TACT SWITCH
3373 4822 116 52264 27k 5% 0,5W
3374 4822 116 52264 27k 5% 0,5W
3375 4822 050 21201 §=1202 1% 0,BW
3386 4822 050 21201 1202 1% 0,W
7370 4822 209 82362 NJM4556D
IR PANEL
1461 4822 214 51772
3460 A 4822 052 10478 407 5% 0,33VV
3461 4822 050 24703 47k 1% 0,6NV
MISCELLANEOUS
1501 A 482207031001 FUSE 100mA
5500 A 4822 146 31063 MAINS TRAFO
1441 4822 276 13114. TACT SWITCH
1442 4822 276 13114 TACT SWITCH
1443 4822 276 13114 TACT SWITCH
1444 4822 276 13114 TACT SWITCH
1445 4822 276 13114. TACT SWITCH
1446 4822 276 13114. TACT SWITCH
1447 4822 276 13114. TACT SWITCH
1450 4822 13091085 DISPLAY 8-BT-120GK
CAPACITORS
2402 5322 124 21643 22uF 20% 40V
2404 5322 124 21643 22uF 20% 40V
RESISTORS
3401 4822 050 22203 22k 1% 0,6W
3402 4822 050 22203 22k 1% 0,6W
3403 4822 050 22203 22k 1% 0,6W
3404 4822 050 22203 22k 1% 0,6W
3405 A 4822 052 10478 407 5% 0,33W
