56

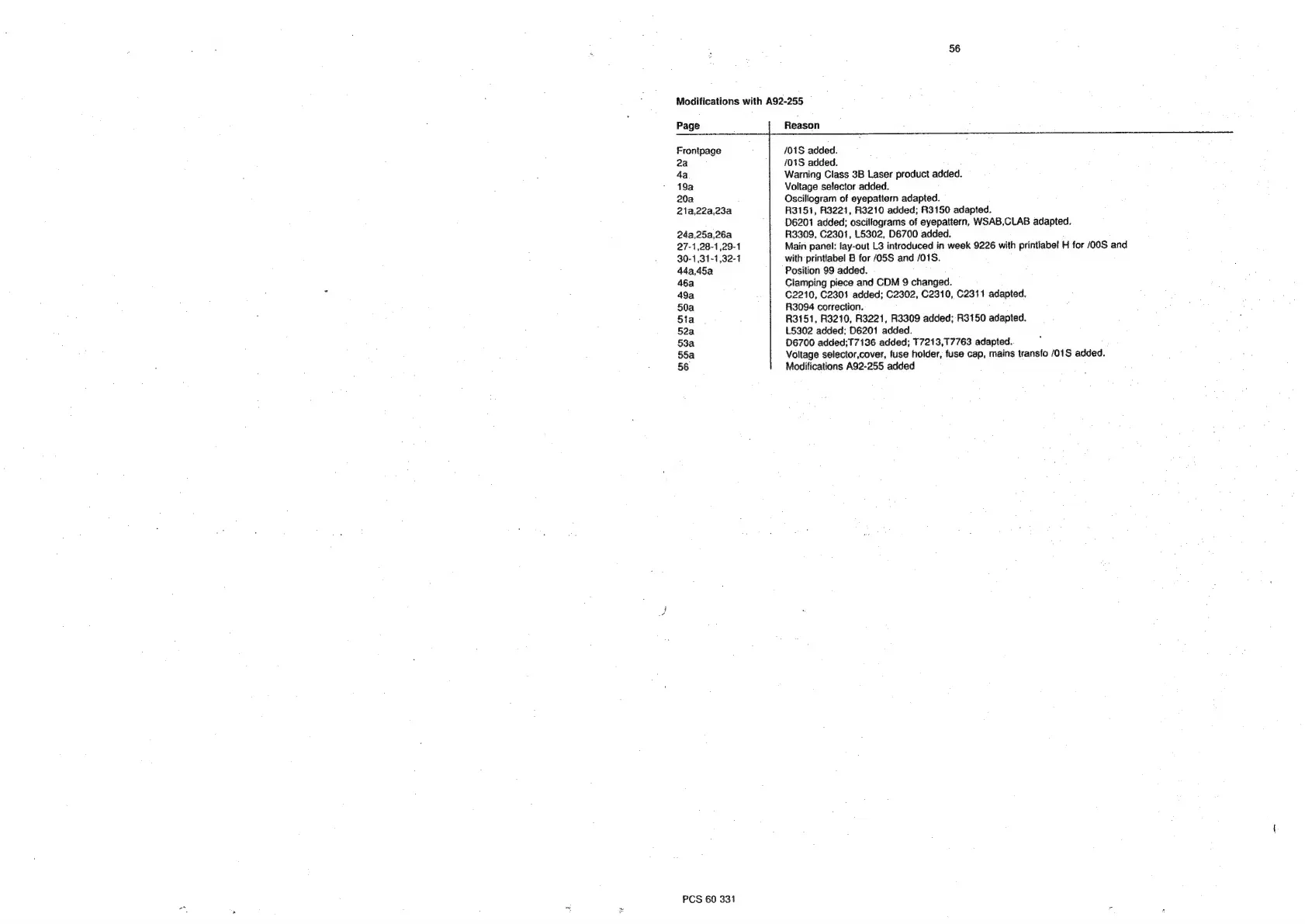

Modifications with A92-255
20a
21a,22a,23a
24a,25a,26a
27-1,28-1,29-1
30-1,31-1,32-4
44a,45a
46a
49a
50a
Sta
52a
53a
55a
56
PCS 60 331
Reason
/01S added.
/01S added.
Warning Class 3B Laser product added.
Voltage selector added.
Oscillogram of eyepattern adapted.
R3151, A3221, R3210 added; R3150 adapted.
06201 added; oscillograms of eyepattern, WSAB,CLAB adapted.
R3309, C2301, L5302, D6700 added.
Main panel: lay-out L3 introduced in week 9226 with printlabel H for /00S and
with printlabel B for /O5S and /01S.
Position 99 added.
Clamping piece and CDM 9 changed.
C2210, C2301 added; C2302, C2310, C2311 adapted.
R3094 correction.
R3151, R3210, R3221, R3309 added; R3150 adapted.
L5302 added; D6201 added.
D6700 added;T7136 added; T7213,T7763 adapted.
Voltage selector,cover, fuse holder, fuse cap, mains transfo /01S added.
Modifications A92-255 added
