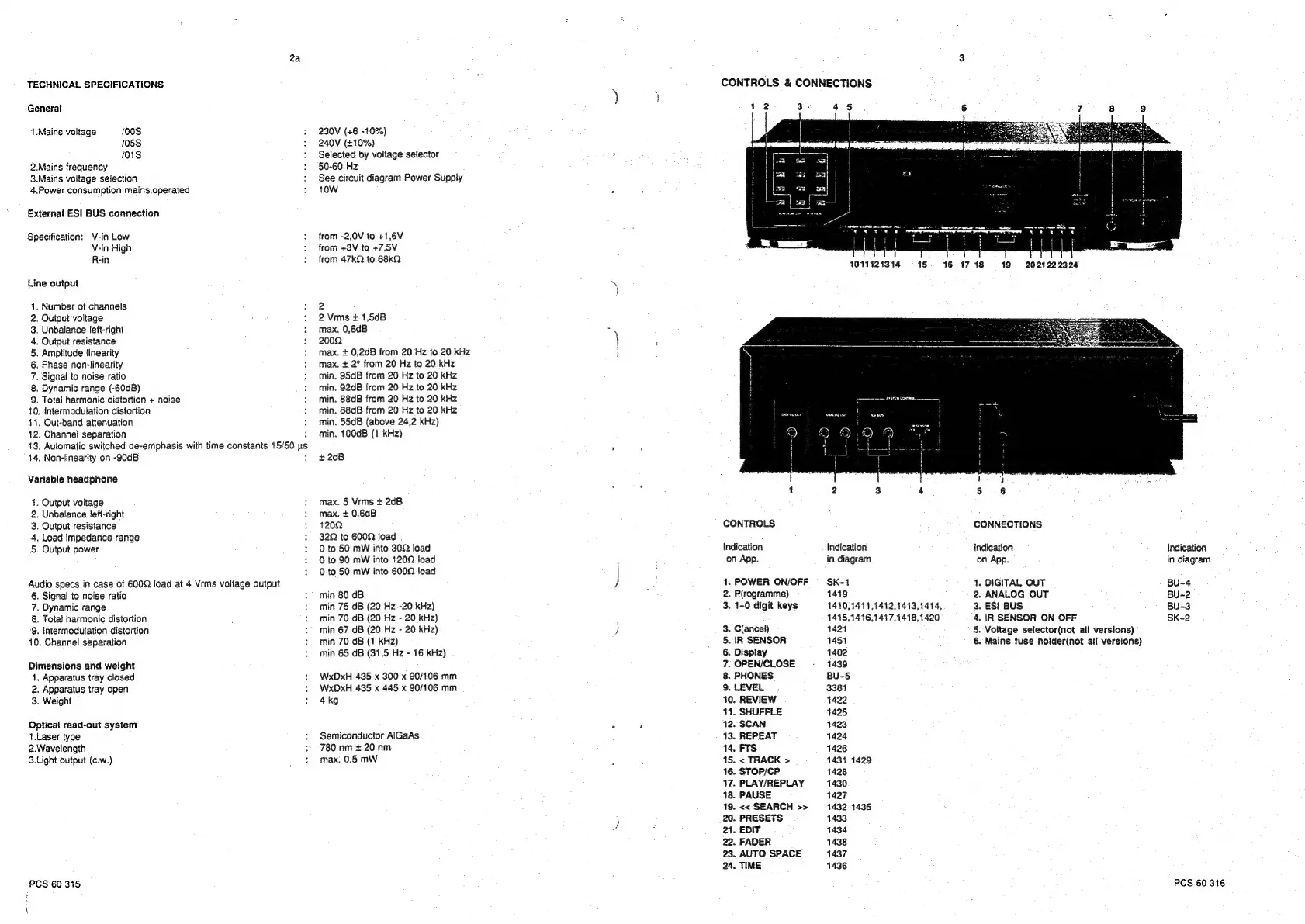

Philips CD931 - Controls and Connections

2a
TECHNICAL SPECIFICATIONS
General
1.Mains voltage /00S
1085S
1018
2.Mains frequency
3,Mains voltage selection
4:Power consumption mains.operated
External ESI BUS connection
Specification: V-in Low
V-in High
R-in
Line output
1. Number of channels
2, Output voltage
3. Unbalance left-right
4. Output resistance
5. Amplitude linearity
6. Phase non-linearity
7. Signal to noise ratio
8. Dynamic range (-60dB)
9. Total harmonic distortion + noise
10. intermodulation distortion
11. Out-band attenuation H
12. Channel separation 7
13, Automatic switched de-emphasis with time constants 15/50 us
14. Non-linearity on -90d8 :
Variable headphone
4. Output voltage
2. Unbalance left-right
3. Output resistance
4. Load impedance range
5. Output power
Audio specs in case of 600Q load at 4 Vrms voltage output
6. Signal to noise ratio
7. Dynamic range
8, Total harmonic distortion
9. Intermodulation distortion
10. Channel separation
Dimensions and weight
1. Apparatus tray closed
2. Apparatus tray open
3. Weight
Optical read-out system
1. Laser type
2.Wavelength
3.Light output (c.w.)
PCS 60 315
230V (+6 -10%)
240V (+10%)
Selected by voltage selector
50-60 Hz
See circuit diagram Power Supply
10W
from -2,0V to +1,6V
from +3V to +7,5V
from 47kQ to 68kQ
2
2 Vrms + 1,5dB
max. 0,6dB
200Q
max. + 0,2dB from 20 Hz to 20 kHz
max. + 2° from 20 Hz to 20 kHz
min. 95dB from 20 Hz to 20 kHz
min. 92dB from 20 Hz to 20 kHz
min. 88dB from 20 Hz to 20 KHz
min. 88d8 from 20 Hz to 20 kHz
min. 55dB (above 24,2 kHz)
min. 100dB (1 kHz)
+ 2dB
max. 5 Vrms + 2d8
max. + 0,6dB
1202
322 to 600Q load .
0 to 50 mW into 302 load
0 to 90 mW into 1202 load
0 to 50 mW into 600Q load
min 80 dB
min 75 dB (20 Hz .-20 kHz)
min 70 dB (20 Hz - 20 kHz)
min 67.dB (20 Hz - 20 kHz)
min 70 dB.(1 kHz)
min 65 dB (31,5 Hz - 16 kHz)
WxDxH 435 x 300 x 90/106 mm
WxDxH 435 x 445 x 90/106 mm
4kg
Semiconductor AlGaAs
780 nm + 20 nm
max: 0,56 mW
CONTROLS & CONNECTIONS
1011121314 9-18
16 17 18 19 2021222324
CONTROLS
Indication
on App.
1. POWER ON/OFF
aon
3.
5
6.
7.
8.
9.
10.
1
12
13.
14,
15,
16.
17.
18.
19,
. P(rogramme)
. 1-0 digit keys
. Cancel)
. IR SENSOR
. Display
. OPEN/CLOSE
. PHONES
. LEVEL
. REVIEW
. SHUFFLE
. SCAN
. REPEAT
. PTS
. < TRACK >
. STOP/CP
. PLAY/REPLAY
. PAUSE
. << SEARCH. >>
20. PRESETS
. EDIT
22. FADER
23. AUTO SPACE
24, TIME
Indication
in diagram
SK-1
1419
1410,1411,1412,1413,1414,
1415,1416,1417,1418,1420
1421
1451
1402
1439
BU-5
3381
1422
1425
1423
1424
1426
1431 1429
1428
1430
1427
1432 1435
1433
1434
1438
1437
1436
CONNECTIONS
indication
on App.
1. DIGITAL OUT
2. ANALOG OUT
3. ESI BUS
4. IR SENSOR ON OFF
§. Voltage selector(not all versions)
6. Mains fuse holder(not alt versions)
Indication
in diagram
BU-4
BU-2
BU-3
SK~2
PCS 60 316
