1 Connection to power supply
2 ANALOG OUT CD ....connects CD player deck to the
line input of an amplifier (left and
right)
3 DIGITAL OUT CD ......connects CD player deck to the
digital coaxial input of e.g.
amplifier or recording device
4 ANALOG IN ................connects to the line output of an
amplifier (left and right)
5 ANALOG OUT CDR & CD
......................................connects to the line input of an
amplifier (left and right)
6 DIGITAL IN..................connects to the digital coaxial
output of an external CD player
7 DIGITAL OUT CDR & CD
......................................connects to the digital coaxial
input of e.g. amplifier or recording
device
8 OPTICAL IN ................connects to the digital optical
output of an external CD player

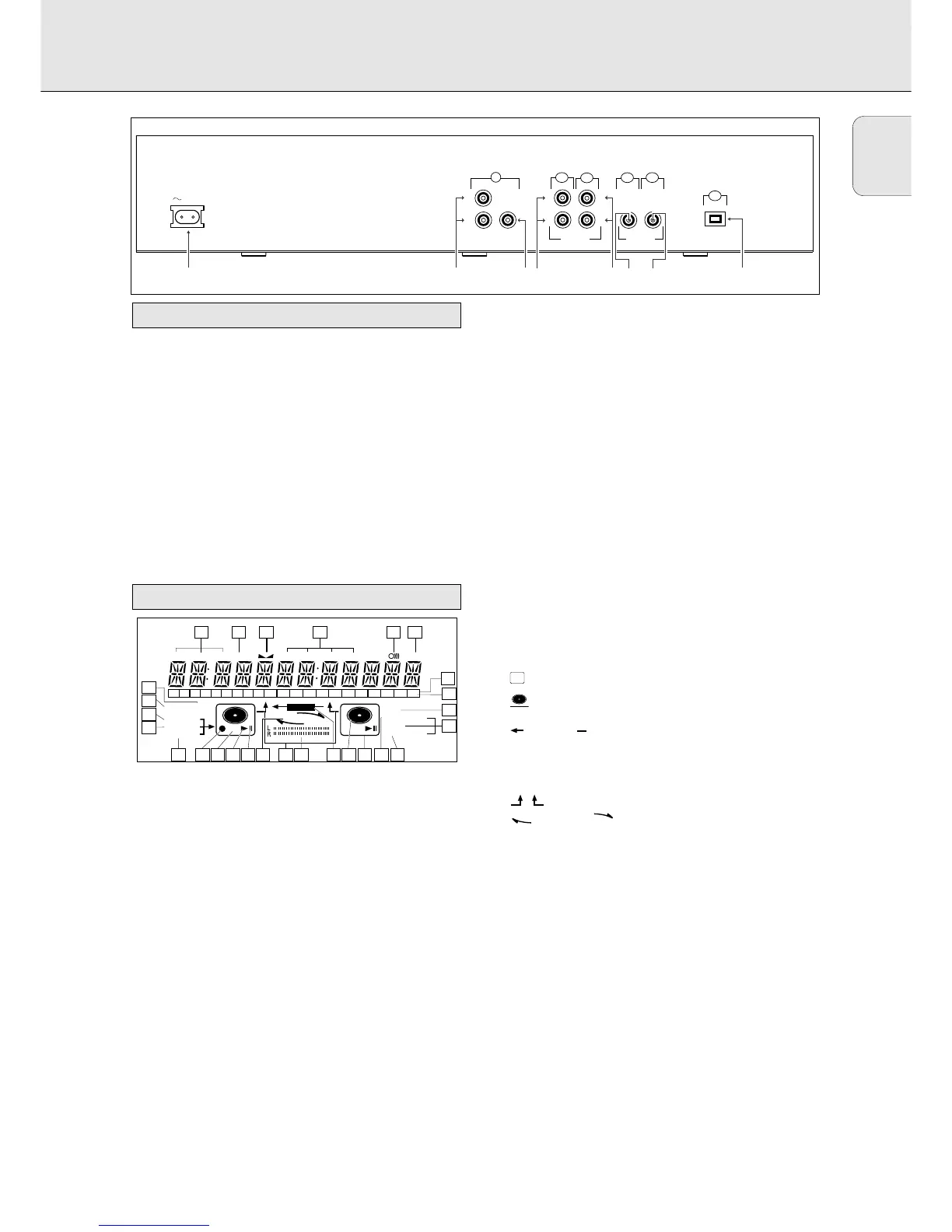

Connections at the back
CONTROLS AND CONNECTIONS DISPLAY
1 REM/REC TIME ..........remaining time/remaining
recording time/recording time
2 TRACK ........................track number
3
FE
..............................balance (lights during balance
adjustment)
4 TOTAL REM
TRACK TIME ..............total or remaining time of disc or
track
5 }................................remote control active
6 STEP ............................indicates the number of tracks in a
program
7 Track bar ....................indicates:
- tracks on a disc or in a program
- track in play
8 + 20 ..............................disc or program contains more
than 20 tracks
9 PROG(ram) ..................flashes during programming/lights
in program mode
0 REPEAT TRACK/ALL..lights up when a track/ complete
disc (or program) is repeated.
! SCAN ..........................lights up when the first 10
seconds of each track are played.
@ SHUFFLE......................plays tracks in random order
# ..............................CD player deck selected
$ ..............................CD inserted (a pre-recorded CD or
finalised CDR or CDRW disc)
% RECORD ............lights during recording from the
internal CD
^ L/R ; ; ........................record/play level bar. Indicates the
audio signal level.
& ........................DJ mode selected
* CHANGER ....changer mode selected
( ; ..................................pause function active
) B ................................lights during play
¡ R(W) ............................unfinalised CDR(W) disc inserted
™ 0 ................................lights during recording
£ ANALOG......................- analogue input selected for
external recording
- analogue recording
≤ OPTICAL I ..................optical input I selected for external
recording
∞ DIGITAL I ....................digital input I selected for external
recording
§ SYNC ..........................automatic or synchronised start of
external recording
≥ MANUAL ....................manual start of external recording
