Philips CDR930 - Cdl3800; Figure

Mechanical instructions
GB 8 CDR 3rd gen.4.

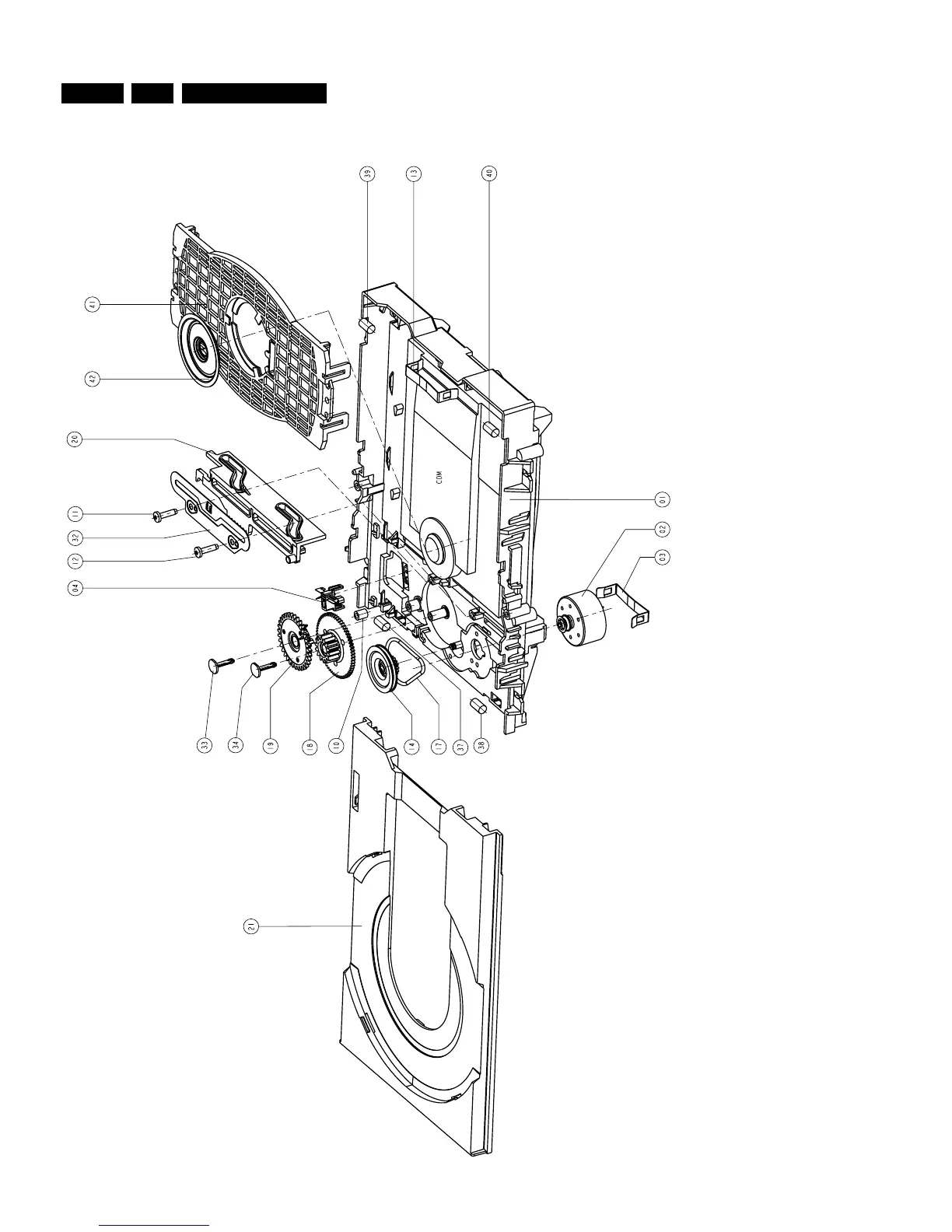

4.2 Exploded view CDL3800
Figure 4-2
01 4822 691 10764 CHASSIS 02 4822 361 11131 TRAY MOTOR ASSY 03 4822 492 11709 MOTOR SPRING 04 4822 277 11838 SWITCH 10 4822 532 13097 TULE 13 4822 492 11709 MOTOR SPRING 14 4822 528 11295 PULLEY WHEEL 17 4822 358 10266 BELT 18 1822 522 10739 RACK GEAR WHEEL 19 4822 522 10741 TRAY GEAR WHEEL 20 4822 402 11221 RACK 21 4822 418 10421 TRAY BLACK 32 4822 492 11711 RACK SPRING 33 4822 535 10588 PLUG 34 4822 535 10588 PLUG 37 4822 466 12131 RUBBER 38 4822 466 12131 RUBBER 39 4822 466 12131 RUBBER 40 4822 466 12131 RUBBER 41 4822 466 12132 CLAMPER BRIDGE 42 4822 466 12133 CLAMPER
CL06532018_002.eps
100300
