Philips DCC 170 - Page 6

English

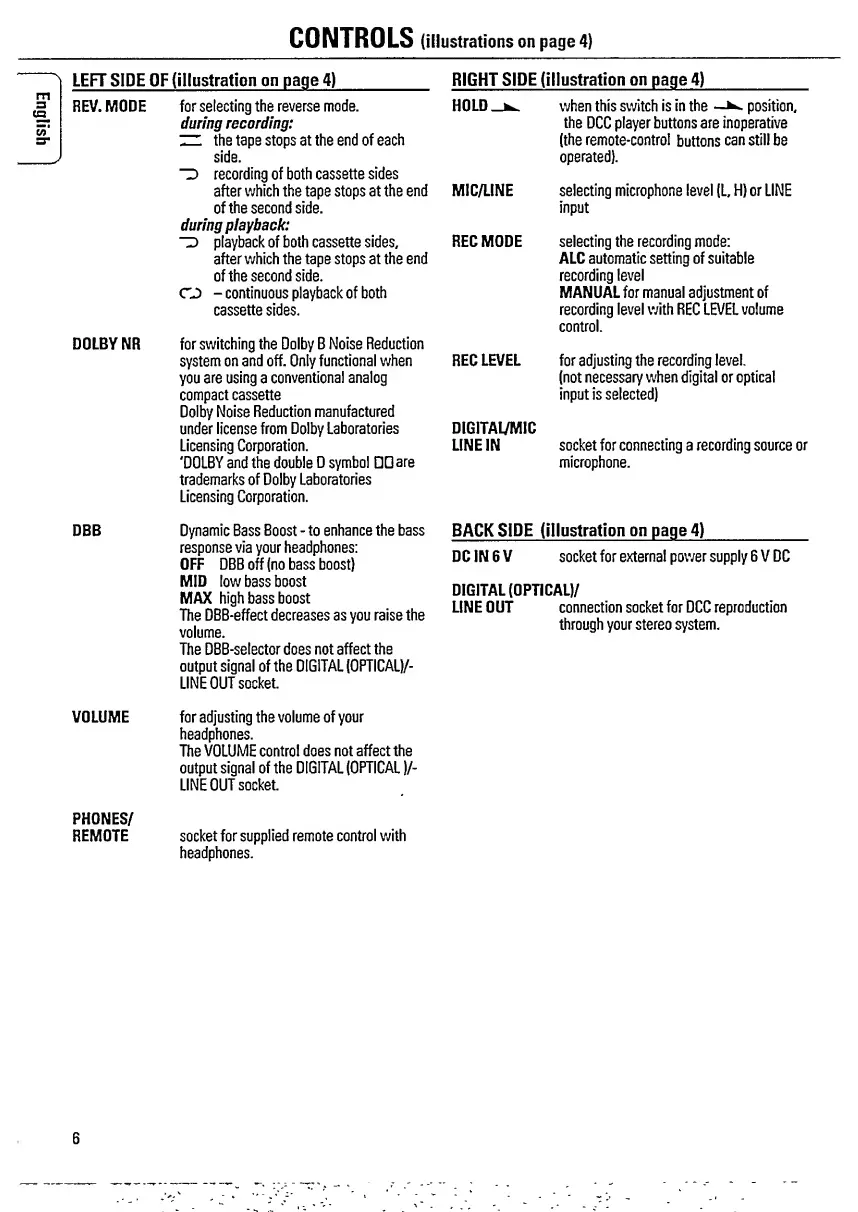

CONTROLS (illustrations on page 4)
LEFT SIDE OF (illustration on page 4) _ RIGHT SIDE (illustration on page 4)
REV. MODE
DOLBY NR
for selecting the reverse mode.
during recording:
ZZ the tape stops at the end of each
side.
~D recording of both cassette sides
HOLD_w when this switch is In the —w position,
the DCC player buttons are inoperative
(the remote-control buttons can still be
operated).
after which the tape stops at the end
of the second side.
during playback:
MIC/LINE selecting microphone level (L, H) or LINE
input
~D playback of both cassette sides,
after which the tape stops at the end
of the second side,
CJ - continuous playback of both
cassette sides,
for switching the Dolby B Noise Reduction
REC MODE selecting the recording mode:
ALC automatic setting of suitable
recording level
MANUAL for manual adjustment of
recording level with REC LEVEL volume
control.
system on and off. Only functional when
you are using a conventional analog
compact cassette
Dolby Noise Reduction manufactured
under license from Dolby Laboratories
REC LEVEL
DIGITAITMIC
for adjusting the recording level.
(not necessary when digital or optical
input is selected)
Licensing Corporation.
'DOLBY and the double D symbol DO are
trademarks of Dolby Laboratories
Licensing Corporation.
LINE IN socket for connecting a recording source or
microphone.
DBB Dynamic Bass Boost - to enhance the bass
response via your headphones:
OFF DBB off (no bass boost)
MID low bass boost
MAX high bass boost
The DBB-effect decreases as you raise the
volume.
The DBB-selector does not affect the
output signal of the DIGITAL (OPTICAL)/-
LINE OUT socket.
BACK SIDE (illustration on page 4) _
DC IN 6 V socket for external power supply 6 V DC
DIGITAL (OPTICAL)/
LINE OUT connection socket for DCC reproduction
through your stereo system.
VOLUME for adjusting the volume of your
headphones.
The VOLUME control does not affect the
output signal of the DIGITAL (OPTICAL )/-
LINE OUT socket.
PHONES/
REMOTE socket for supplied remote control with
headphones.
6
