Philips DST5030/80 - Reassembly Instructions; Cautions and Notes for Reassembly; Reassembly Steps

Published by Philips Consumer Lifestyle Page 10 of 14 For internal use only
Document No. : CSW-07-081-20617

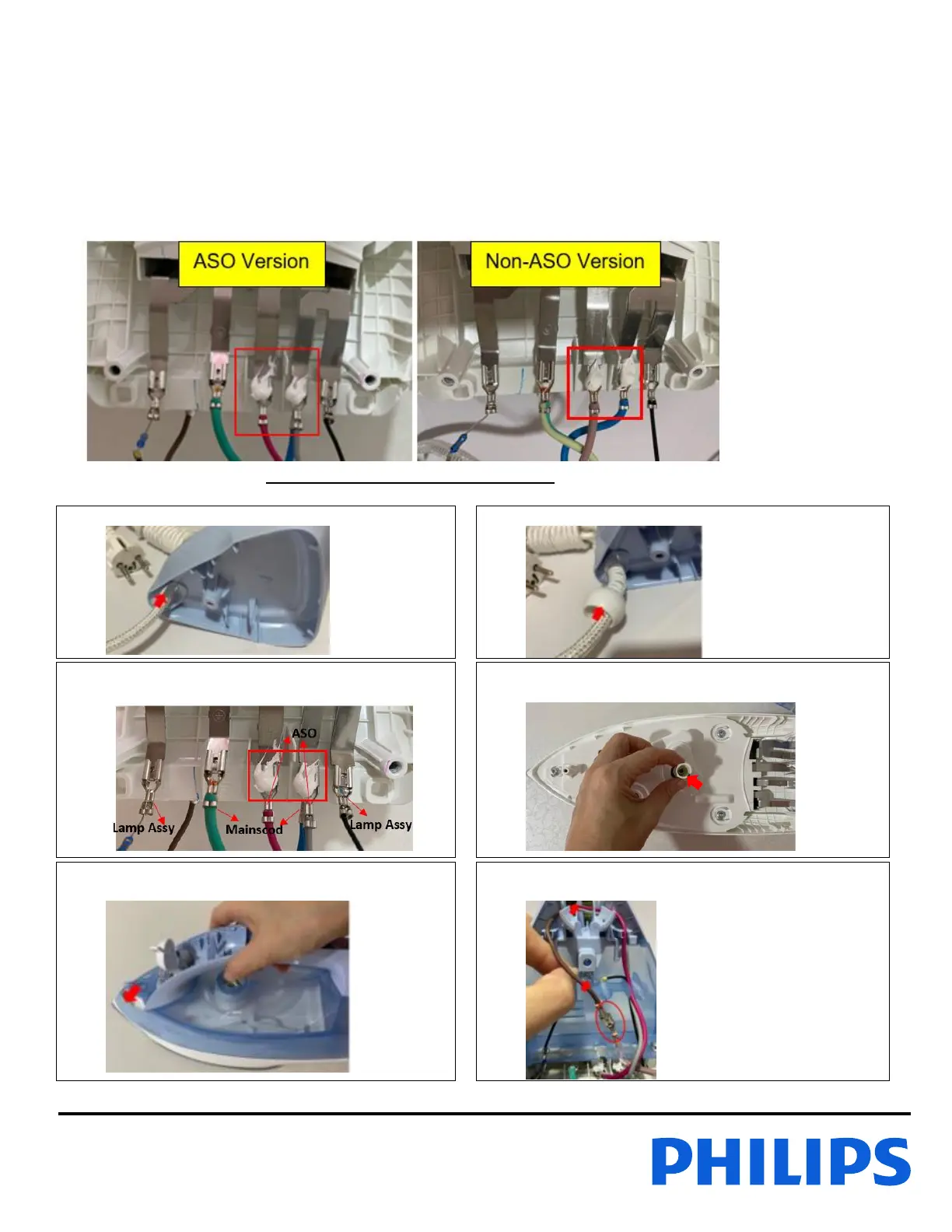

Reassembly Instructions
Cautions:
a. Before fastening screw, relocate the screw with first thread. Once done fasten the screw.
b. Do not drop, hit or knock the ASO (for ASO version only).
c. Ensure there is click sound after Connector to Terminal engage. Refer to wiring diagram for detail.
d. Take note of live part (red & blue wire) must apply with Heat Sink Paste after wire dressing on area as shown.
Notes: Heat Sink Paste – Dow Corning 340 Heat Sink Compound to be used.
1
Assemble Backplate 10
2
Assemble Ball Swivel 11
3
Assemble Mainscord 15 & connect all wires
Apply Heat Sink Paste
4
Assemble T’stat Bush to Soleplate Mtd Assy
with Cover 1
5
Assemble Water Tank Assy 4
6
Assemble ASO (ASO version only),
connect wire & assemble Lamp Assy 2
