Document No. : CSW-07-081-21363

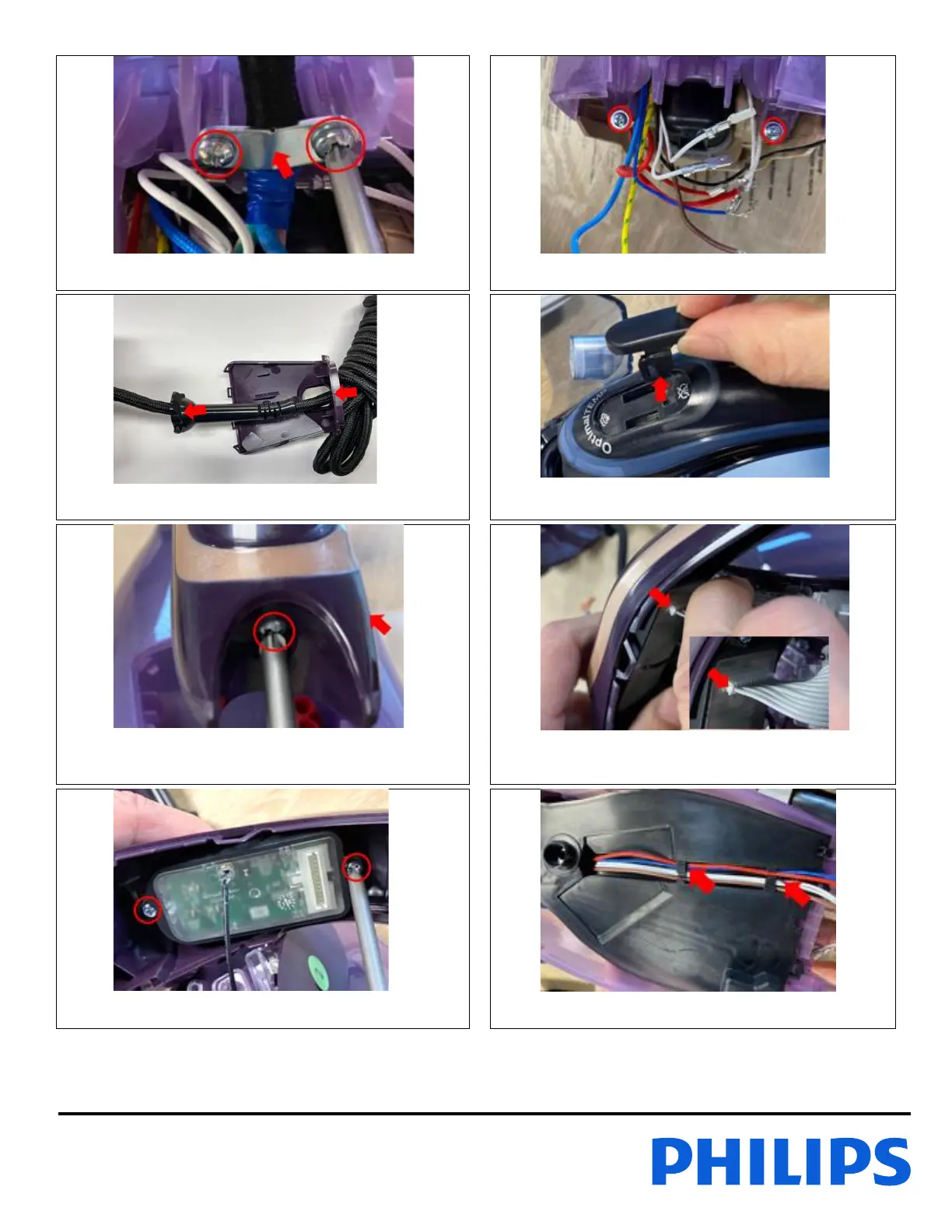

Remove 2x Screw B & Clamping Plate
Untwist and remove all wire connection,
remove 2x Screw H
Remove MAINSCORD 18, remove BALL
SWIVEL 13 & PUMP COVER 5
Remove STEAM SLIDER MOLDED 19
(NON-PUMP version only)
Remove Screw C & remove INLAY ASSY 7
Disconnect Ribbon Cable (Pump version only)
Refer to page 16 for detail disassembly
instruction of Ribbon Cable
Remove 2x Screw I & remove UI PCBA 20
(Pump Version only)
Remove WATER TANK ASSY 4 & loosen all wires
To Next Page
