Published by Philips Domestic Appliances Page 11 of 24 For internal use only
Document No. : CSW-07-081-21363

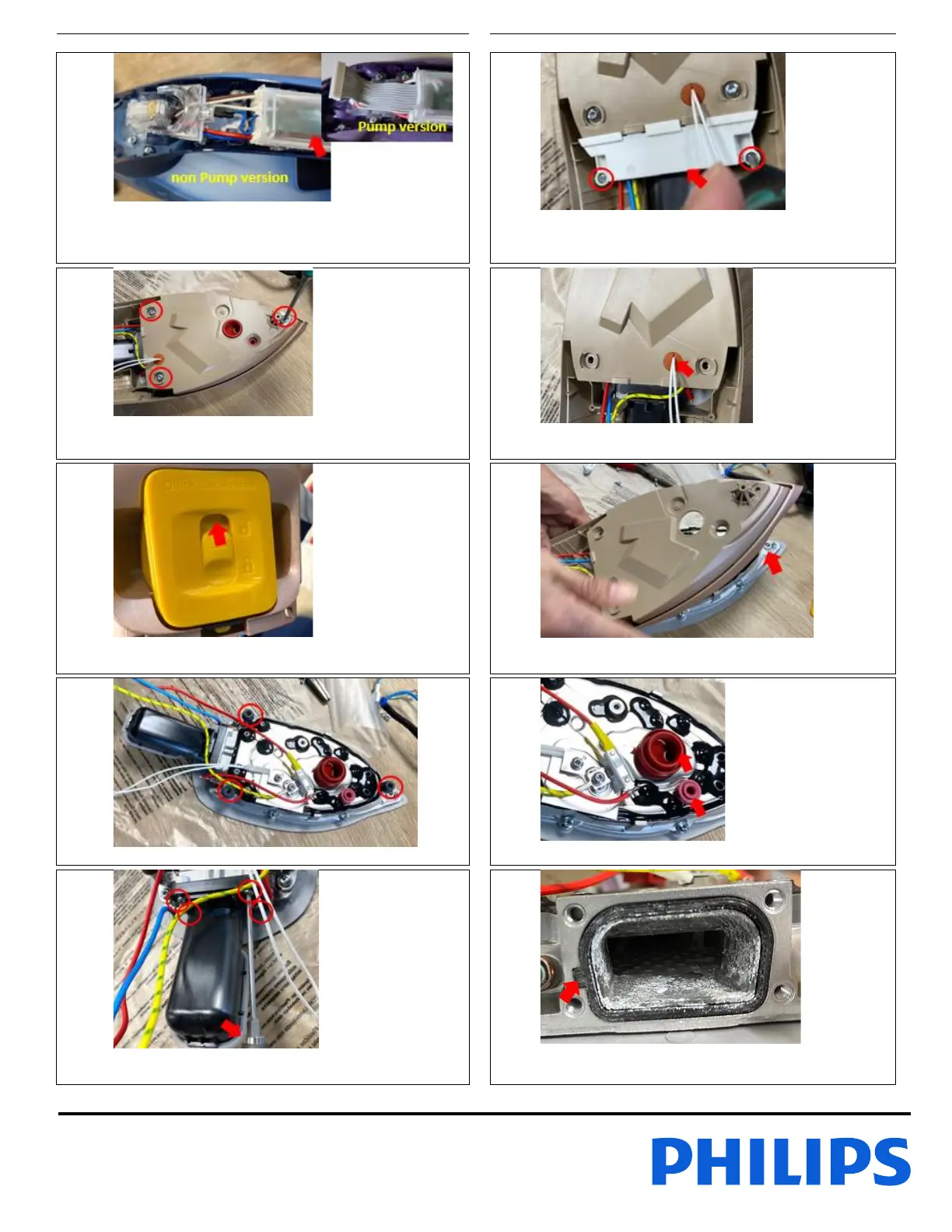

17
18
Remove Light Guide & remove PCBA 14
Refer to page 16 for detail disassembly
instruction of Ribbon Cable forPump version
Remove 2x Screw E, remove SUB COVER 3
19
20
Remove 3x Screw F & Washer, remove Insulation
Sheet
Remove Cover Seal
21
22
Unlock & remove CALC COLLECTOR DOOR
ASSY 11
Remove COVER 2
23
24
Remove 3x Ryton Ring
Remove DOSING SEAL 6 & SOS SEAL 21
25
26
Remove 4x Screw G, remove CALC COLLCTOR BODY
SEAL 12 & remove CALC COLLCTOR BODY 13
Remove SOLEPLATE GASKET 22 & remove
SOLEPLATE ASSY 1
