Philips DST8050 - Reassembly Instructions - Cautions and Steps 1-4; Reassembly Precautions; Initial Component Assembly

Published by Philips Domestic Appliances Page 12 of 24 For internal use only
Document No. : CSW-07-081-21363

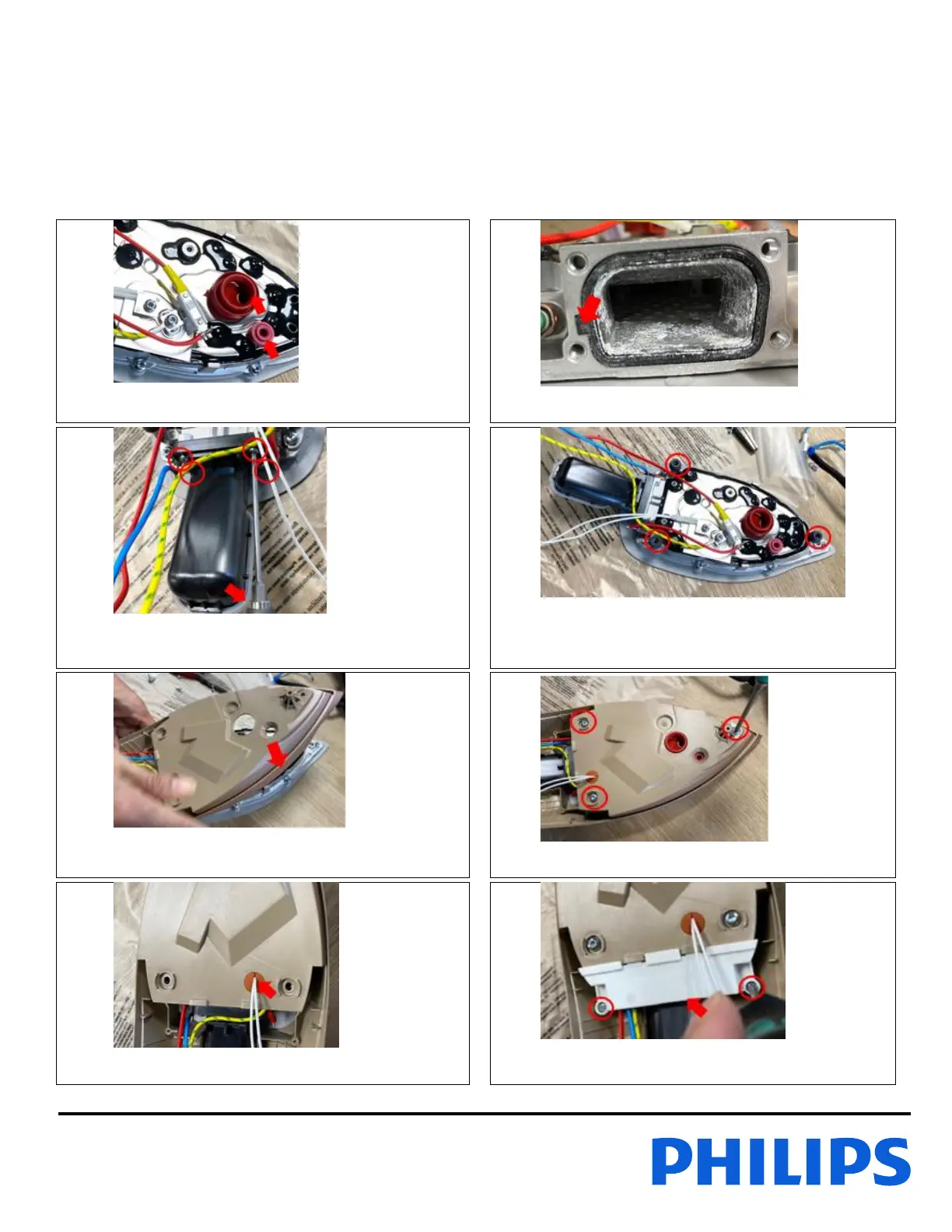

Reassembly Instruction
Cautions:
a. before fastening screw, relocate the screw with first thread. Once done fasten the screw.
b. Do not drop, hit or knock the ASO (for ASO version only).
c. Ensure there is click sound after Connector to Terminal engage. Refer to wiring diagram for detail
1
2
Assemble SOS SEAL 21 & DOSING SEAL 6 to
SOLEPLATE ASSY 1
Assemble SOLEPLATE GASKET 22
3
4
Assemble CALC COLLECTOR BODY 10,
assemble & fasten 4x Screw G & assemble CALC
COLLECTOR BODY SEAL 12
Assemble 3x Ryton Ring and dress all wires
5
6
Assemble COVER 2
Assemble Insulation Sheet, Fibre Washer.
Assemble & fasten 3x Screw F
7
8
Assemble Cover Seal, dress all wires
Assemble SUB COVER 3
Assemble & fasten 2x Screw E
