Philips DST8050 - Page 13

Published by Philips Domestic Appliances Page 13 of 24 For internal use only
Document No. : CSW-07-081-21363

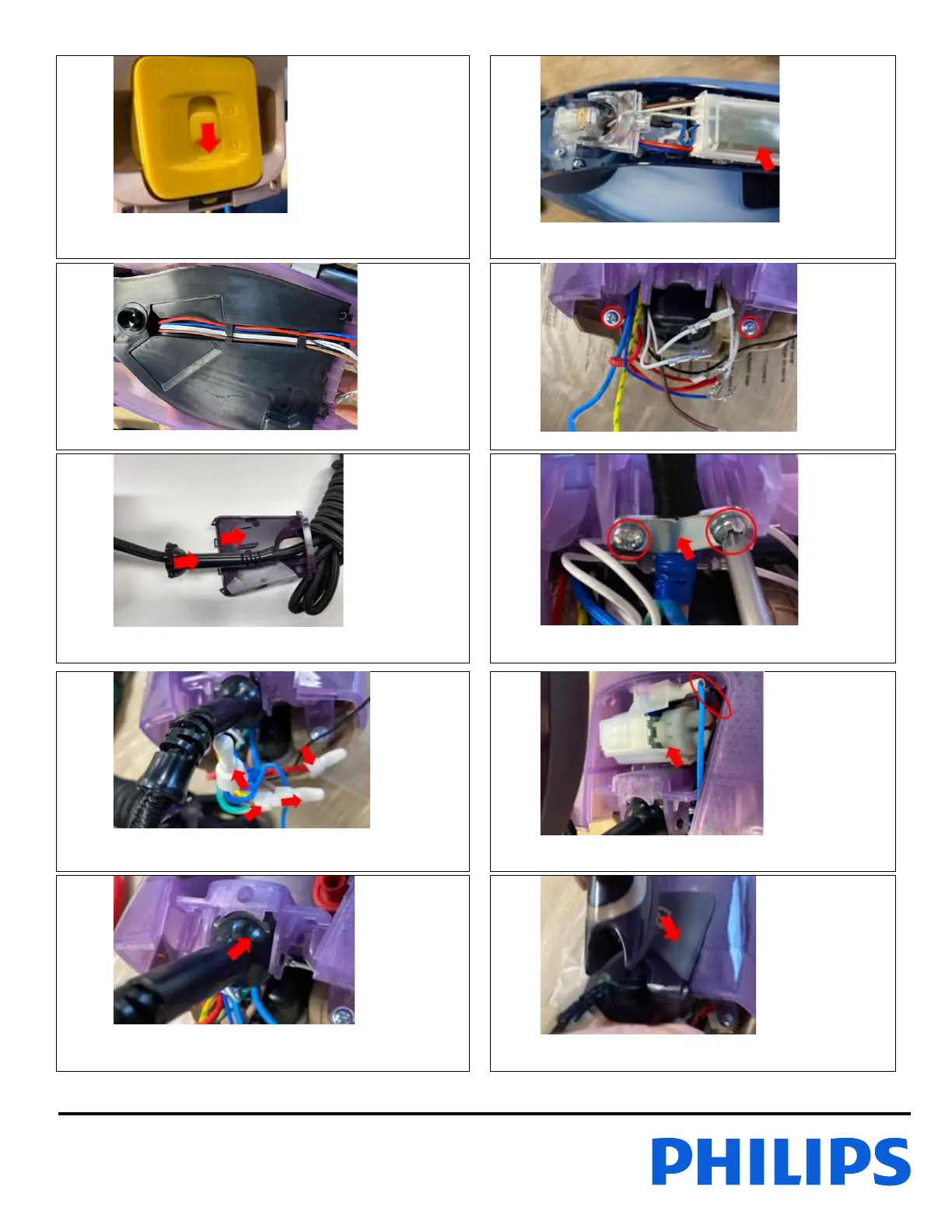

9
10
Assemble & lock the CALC COLLECTOR DOOR
ASSY 11
Assemble PCBA 14 & assemble Light Guide
11
12
Dress wire and Assemble WATER TANK ASSY 4
Assemble & fasten 2x Screw H
13
14
Assemble PUMP COVER 5, assemble BALL
SWIVEL 13 to MAINSCORD 18
Assemble MAINSCORD 18, assemble Clamping
Plate, assemble & fasten 2x Screw B
15
16
Connect all Wires, assemble CLOSED END
CONNECTOR 16 & 17 per instruction in page 15
Connect & dress Pump wire and assemble
PUMP ASSY 15 (Pump version only)
17
18
Assemble BALL SWIVEL 13 to WATER TANK
ASSY 15
Assemble PUMP COVER 5
