Document No. : CSW-07-081-21363
19
20

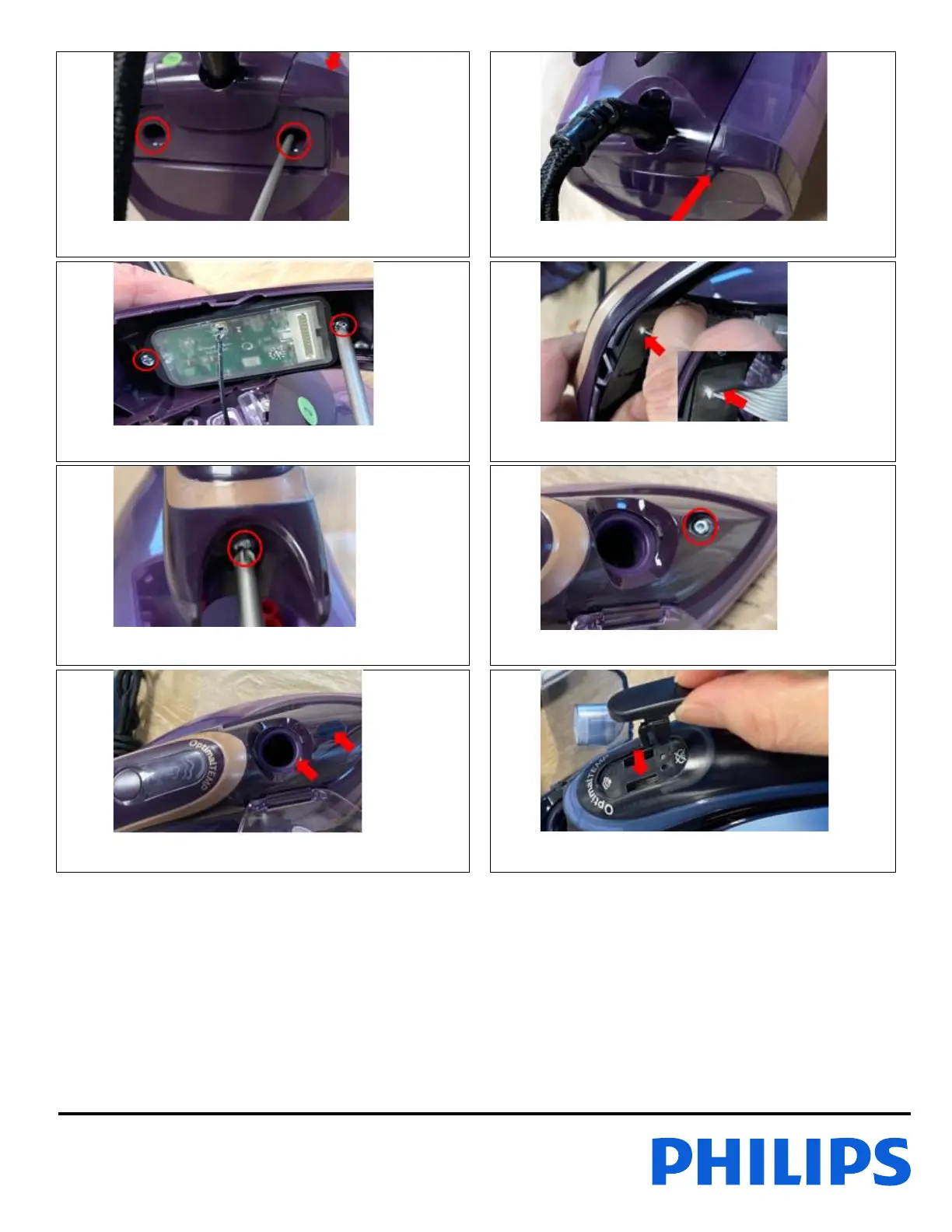

Assemble BACKPLATE MOLDED 9, assemble &
fasten 2x Screw A
Assemble BACKPLATE COVER 8
21
22
Assemble UI PCBA 14, assemble & fasten 2x
Screw I
Connect Ribbon Cable (Pump version only)
to UI PCBA 14
23
24
Assemble INLAY ASSY 7, assemble & fasten
Screw A
Assemble & fasten Screw D
25
26
Assemble Rubber Bung and assemble Tank Seal
Assemble STEAM SLIDER MOLDED 19
(Non Pump version only)
