Technical Specifi cations and Connection Facilities
1. Technical Specifi cations and Connection Facilities

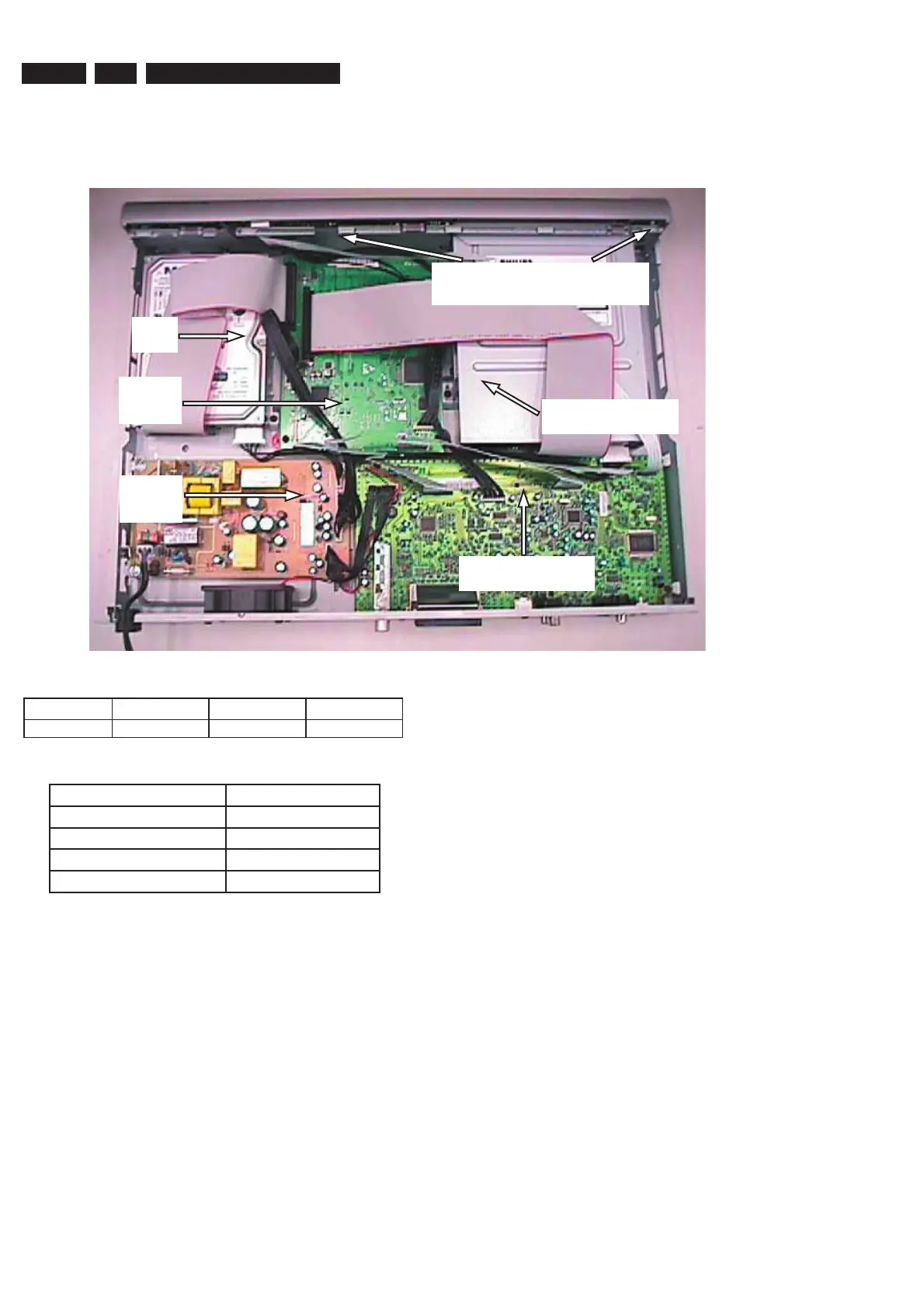

1.1 PCB Locations
1.2 Diversity Matrix
DVDR3300H DVDR3330H DVDR5330H
HDD capacity 80GB 160GB 250GB
1.3 Read / Write Speed
Type of Disc (Function) Disc Rotation Speed
Read Speed CD 7X CAV
Read Speed DVD 4X CAV
Write Speed DVD+R/+RW 2.4X ZCAV
Write Speed DVD-R/-RW 2X
1.4 General:
Mains voltage : 220V – 240V
Mains frequency : 50 Hz
Power consumption (record) : 40 W
Standby Power Consumption : < 6 W
1.5 RF Tuner
Test equipment: Fluke 54200 TV Signal generator
Test streams: Philips Standard test pattern
1.5.1 System
PAL B/G, PAL D/K, SECAM L/L’, PAL I
1.5.2 RF - Loop Through:
Frequency range : 45 MHz – 860 MHz
Gain: (ANT IN - ANT OUT) : -5dB to 0dB
1.5.3 Receiver:
PLL tuning with AFC for optimum reception
Frequency range : 45.25 MHz – 857 MHz
Sensitivity at 40dB S/N
(video unweighted) :  60dBV at 75 
1.5.4 Video Performance:
Channel 25 / 503,25 MHz,
Test pattern: PAL BG PHILIPS standard test pattern,
RF Level 74dBV, Measured on SCART 1
Frequency response : 0.1 MHz – 4 MHz ± 3dB
Group delay (0.1 MHz - 4.4 MHz) : 0 nsec ± 150 nsec
1.5.5 Audio Performance:
Audio Performance Analogue - HiFi:
Frequency response at SCART 1
(L+R) output : 100 Hz – 12 kHz / 0 ±
3dB
S/N Ratio (20Hz – 20kHz)
unweighted :  50dB
Harmonic distortion (1kHz, ± 25
kHz deviation) :  0.5%
Audio Performance NICAM:
Frequency response at SCART 1
(L+R) output : 40 Hz – 15 kHz / 0 ±
3dB
S/N Ratio (20Hz – 20kHz)
unweighted :  60dB
Harmonic distortion (1kHz, ± 25
kHz deviation) :  0.5%
Analog Board
Basic Engine
Front Boards
(Behind the Front Plate)
HDD
Digital
Board
PSU
Board
