Philips DVDR3380 - Optional Connections; Connecting to Cable Box or Satellite Receiver

English
17
Step 2: Optional Connections
Connecting to a Cable Box or
Satellite Receiver
Option 1
If your Cable Box/Satellite Receiver
has only an aerial output socket
(RF OUT or TO TV),
see the section “Step 1: Basic Recorder
Connections – Connecting the aerial
cables” for the complete connections to
your TV.

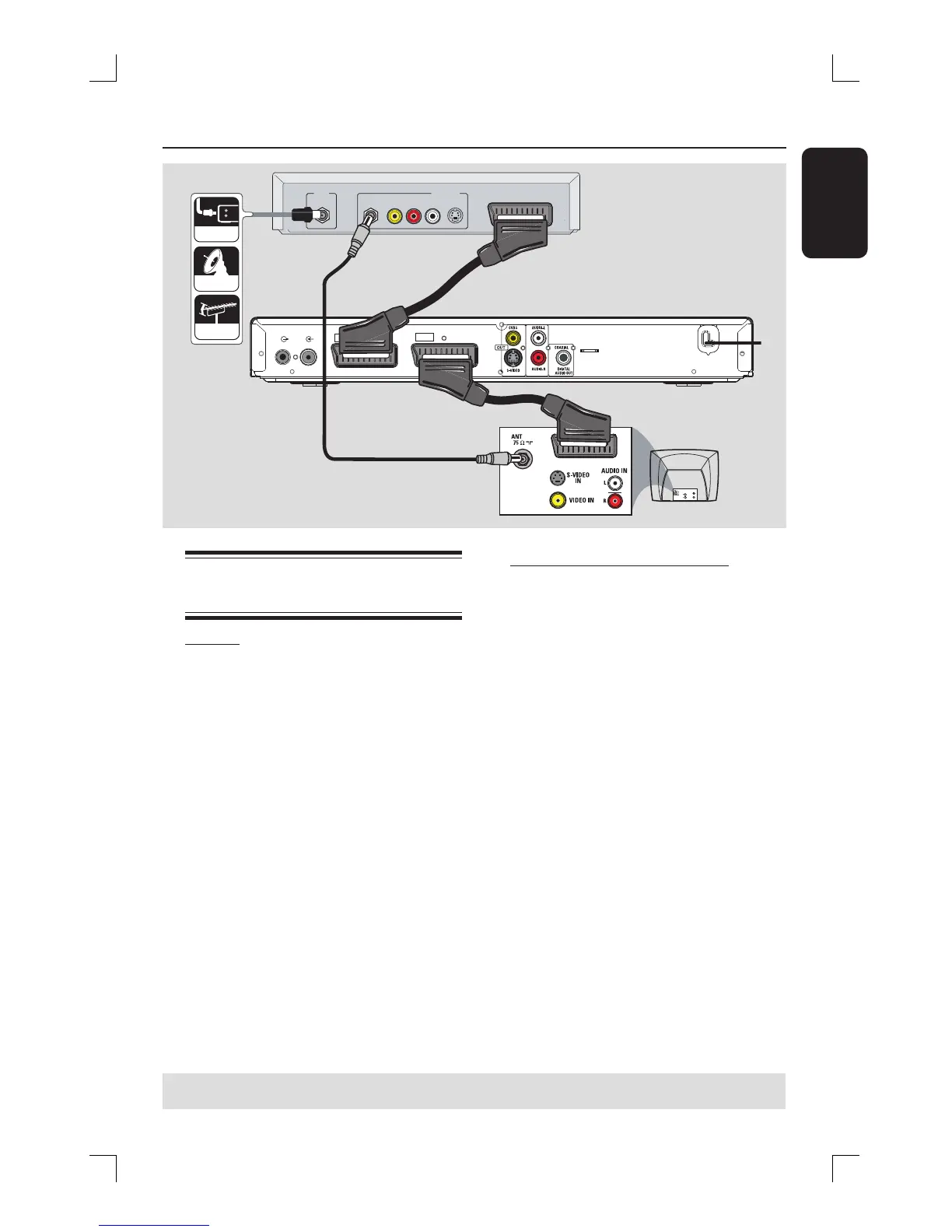

Option 2 (see the above illustration)
If your Cable Box/Satellite Receiver
has a SCART output socket
A
Keep the existing aerial connection from
the Cable Box/Satellite Receiver to your
TV.
B
Use the SCART cable to connect the
EXT1 TO TV-I/O socket on the
recorder to the corresponding SCART
input socket on the TV.
C
Use another SCART cable to connect the
EXT2 AUX-I/O socket on the recorder
to the SCART output socket (or labelled
as TV OUT or TO TV) on the Cable
Box/Satellite Receiver.
To start playback, select the TV channel
directly on the Cable Box/Satellite
Receiver. To view the picture from a
connected external device, press the
TV/DVD key on the remote control.
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
B
C
ANTENNA-IN
TV-OUT
~
MAINS
TO TV - I/O
EXT
1
AUX - I/O
EXT
2
AUD IO
OUT
S-VI D EO
IN
VIDEO IN
TV
RF S-VIDEO
OUT
IN
AUDIO
R L
VIDEO
TO TV
CABLE
SATELLITE
ANTENNA
Back of a Cable Box
or Satellite Receiver
(Example only)
A
