Step 2: Optional Connections (continued)
OR
B
A
Option 2: Using the S-VIDEO In or
VIDEO In socket
Use the S-VIDEO connection if you have
a Hi8 or S-VHS(C) camcorder. It
provides very good picture quality.
Alternatively, you can use VIDEO
connection if your camcorder has only a
single video output (Composite Video,
CVBS). It provides good picture quality.

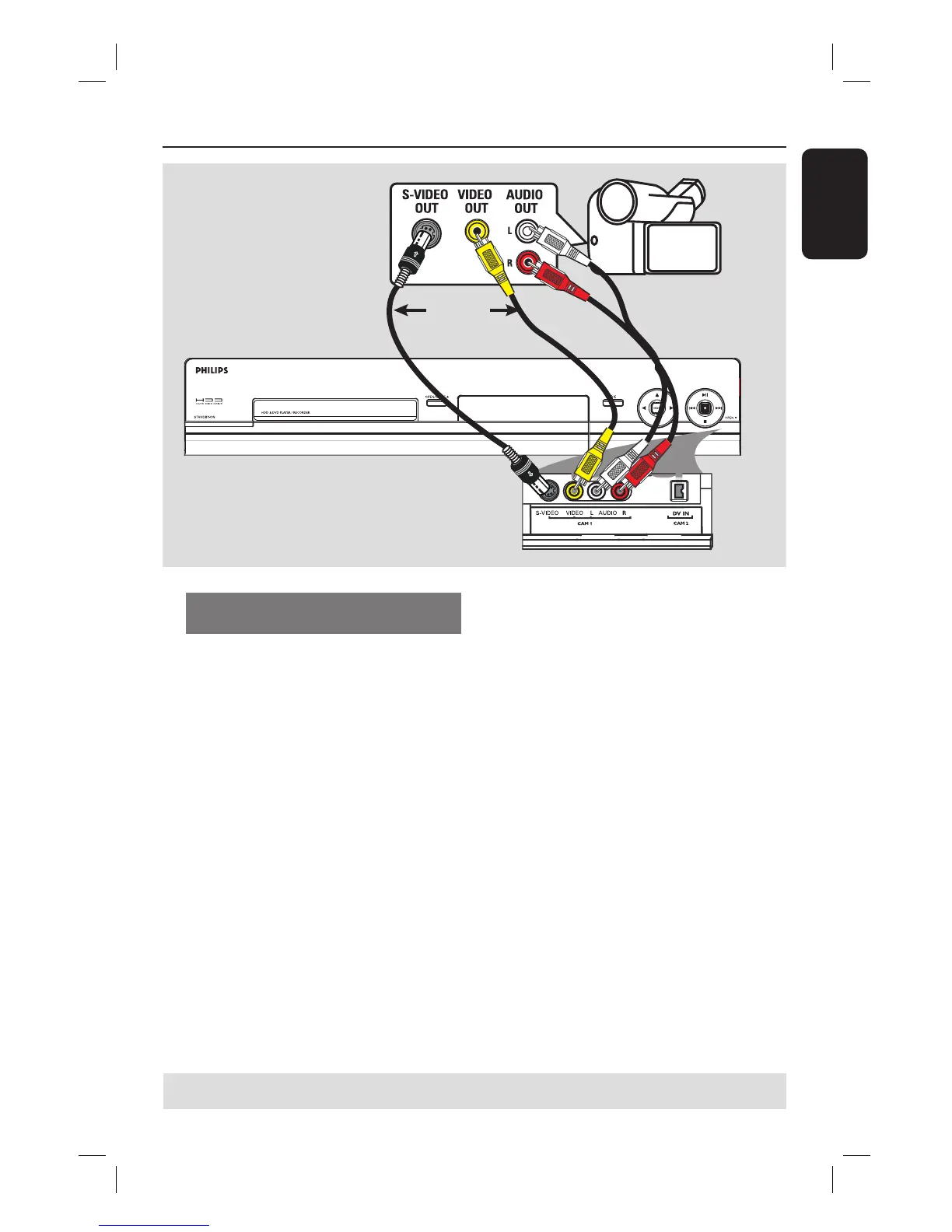

A Connect the S-VIDEO or VIDEO
socket at the front panel of the recorder
to the corresponding S-VHS or Video
output socket on the camcorder.
Press CAM on the remote control,
then press CHANNEL
+/-
repeatedly to select ‘CAM1’ when using
this input source.
B Use an audio cable (red/white - not
supplied) to connect the AUDIO L/R
sockets at the front panel of the recorder
to the audio output socket on the
camcorder.
Helpful Hint:
– If you connect your camcorder to the scart
socket at the rear of this recorder, select
{ EXT1 } or { EXT2 } as the input source.
TIPS: Refer to the respective connected device’s user manual for other possible connections.
