Output Jacks
CVBS Out is provided by the 75 Ohm driver
7430. Both CVBS output sockets are connected
to 7430 in parallel. Independent of which input
signal is being used: CVBS, S-Video, or Y/UV,
7507 supplies SVideo and Y/UV signals to the
corresponding sockets.
RC In
A Remote Control input socket is provided for
those users that have a component stack with
multi remote capabilities.

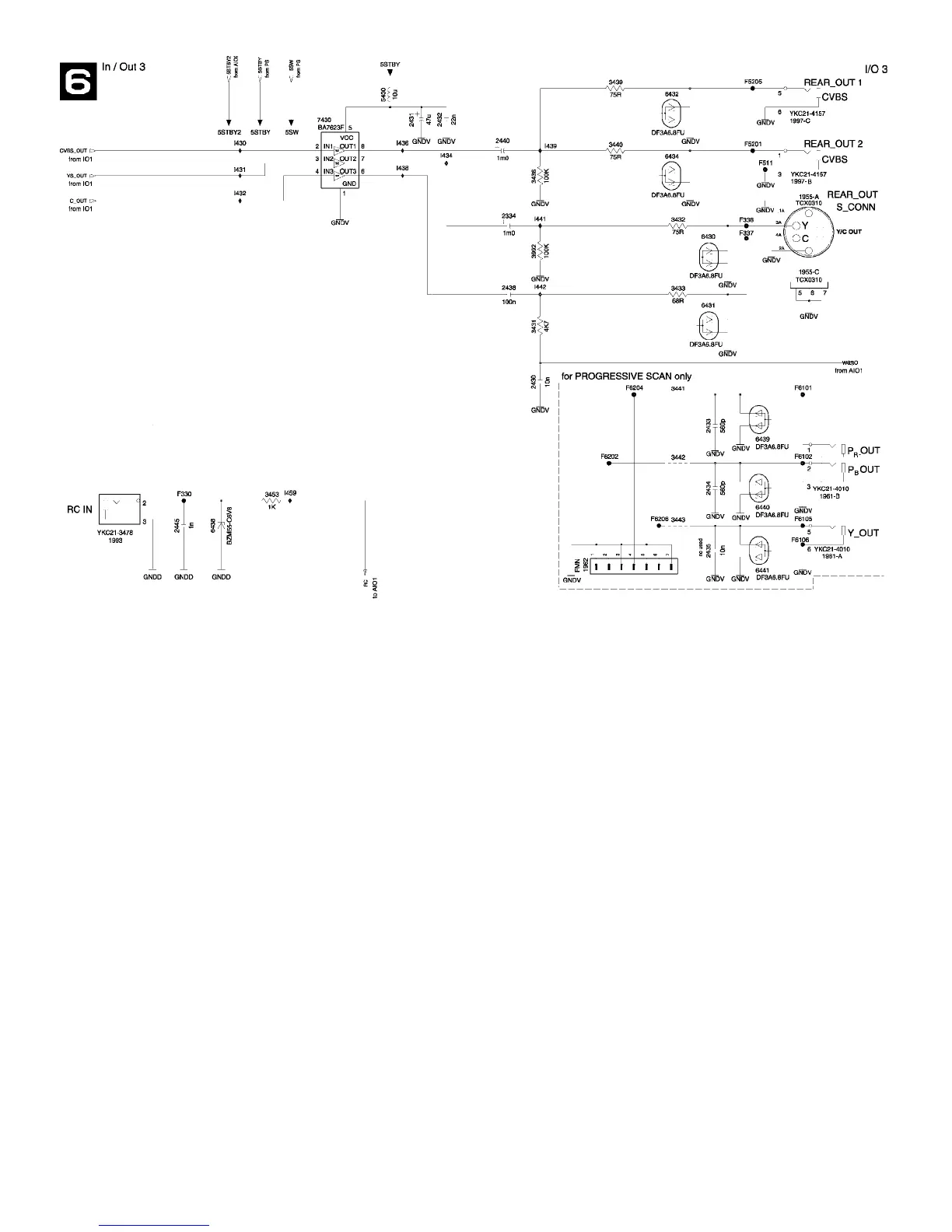

Figure 50 - Rear Output Jacks
85
