Functional Overview

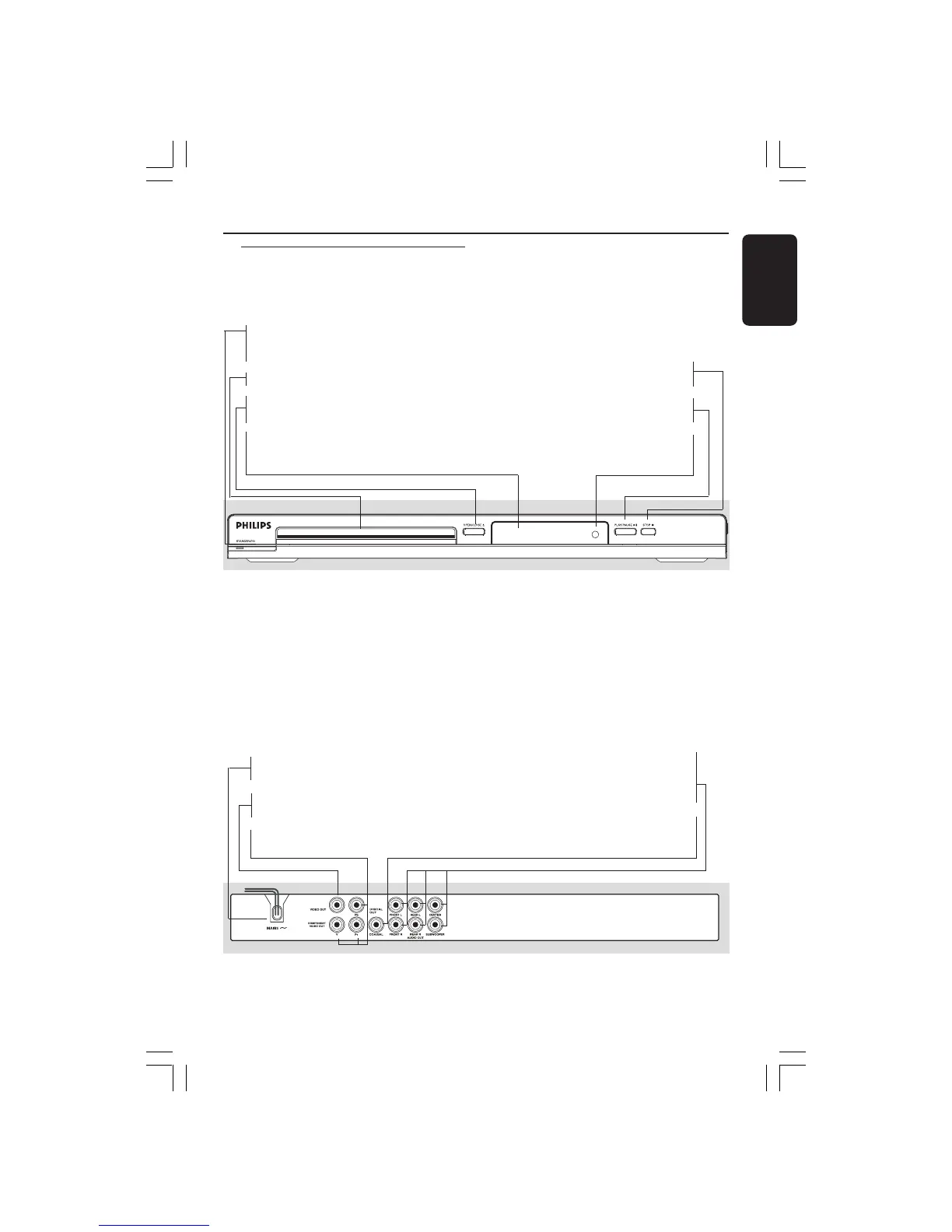

Front and Rear Panels
Caution: Do not touch the inner pins of the jacks on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
STANDBY-ON B
– Turns the player on or switches it to
standby mode
Disc tray
OPEN/CLOSE /
– Opens or closes the disc tray
Display
– Shows the information about the current
status of the DVD Player
9 STOP
– Stops playback
2; PLAY/PAUSE
– Starts or pauses playback
IR Sensor
– Point the remote control towards this
sensor
Multichannel Audio Out
– Center speaker, subwoofer, front
and rear speakers multichannel
connection
COAXIAL (Digital audio out)
– Connect to coaxial AUDIO input of a
digital audio equipment
Mains (AC Power Cord)
– Connect to a standard AC outlet
VIDEO OUT (CVBS)
– Connect to CVBS Video input of a TV
YPbPr (Component Video Out)
– Connect to YPbPr input of a TV
