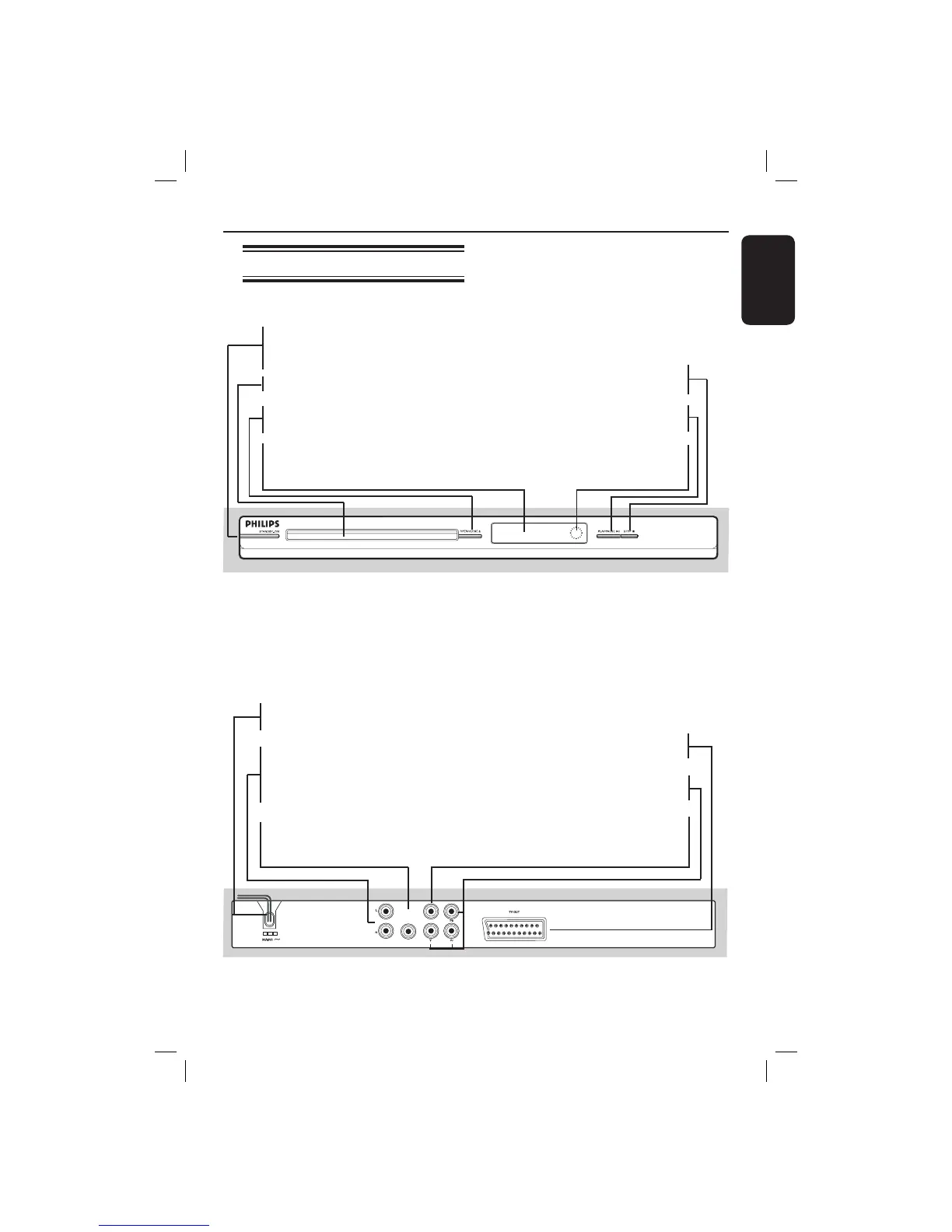

Product Overview
Front and Rear Panels
Caution: Do not touch the inner pins of the jacks on the rear panel.
STANDBY ON 2
– Turns on the player or switches
to standby mode
Disc Tray
OPEN/CLOSE
ç
– Opens or closes the disc tray.
Display panel
– Shows information about the
current status of the DVD player.

STOP
– Stops playback
PLAY/PAUSE u
– Starts or pauses playback.
IR Sensor
– Point the remote control towards
this sensor
AUDIO OUT
DIGITAL
OUT
VIDEO OUT
COAXIAL
COMPONENT VIDEO OUT
Mains ~ (AC Power Cord)
– Connect to a standard AC outlet
Audio Out (Left/Right)
– Connect to AUDIO inputs of an
ampli er, receiver or stereo
system
COAXIAL (Digital audio out)
– Connect to coaxial AUDIO input
of a digital audio equipment
TV OUT (SCART)
– Connect to SCART input of a TV
YPbPr (Component Video Out)
– Connect to YPbPr input of a TV
VIDEO OUT (CVBS)
– Connect to CVBS Video input of a
TV
