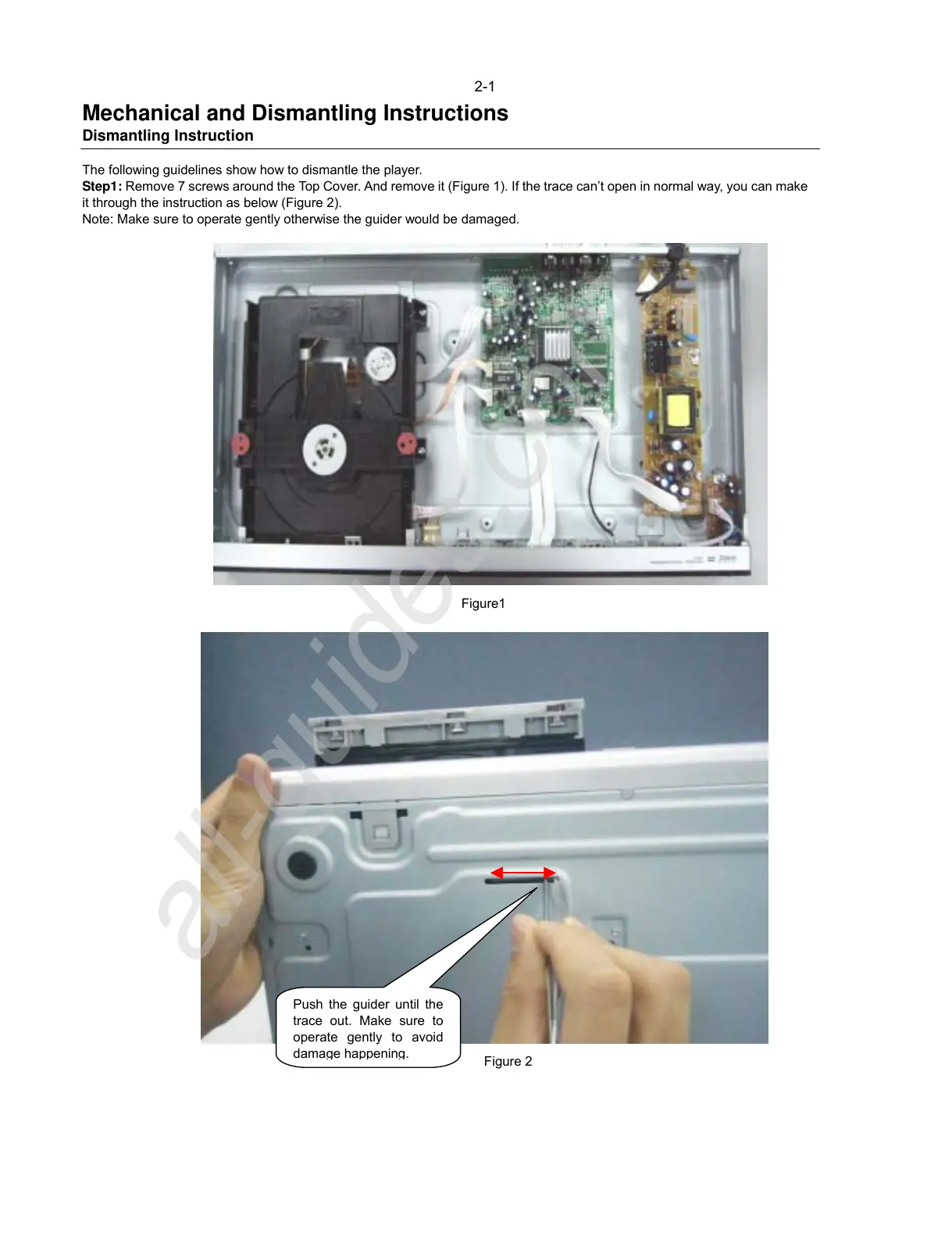

Mechanical and Dismantling Instructions
Dismantling Instruction
The following guidelines show how to dismantle the player.
Step1: Remove 7 screws around the Top Cover. And remove it (Figure 1). If the trace can’t open in normal way, you can make
it through the instruction as below (Figure 2).
Note: Make sure to operate gently otherwise the guider would be damaged.
2-1
Figure 2
Push the guider until the
trace out. Make sure to
operate gently to avoid
dama
To Next Page
