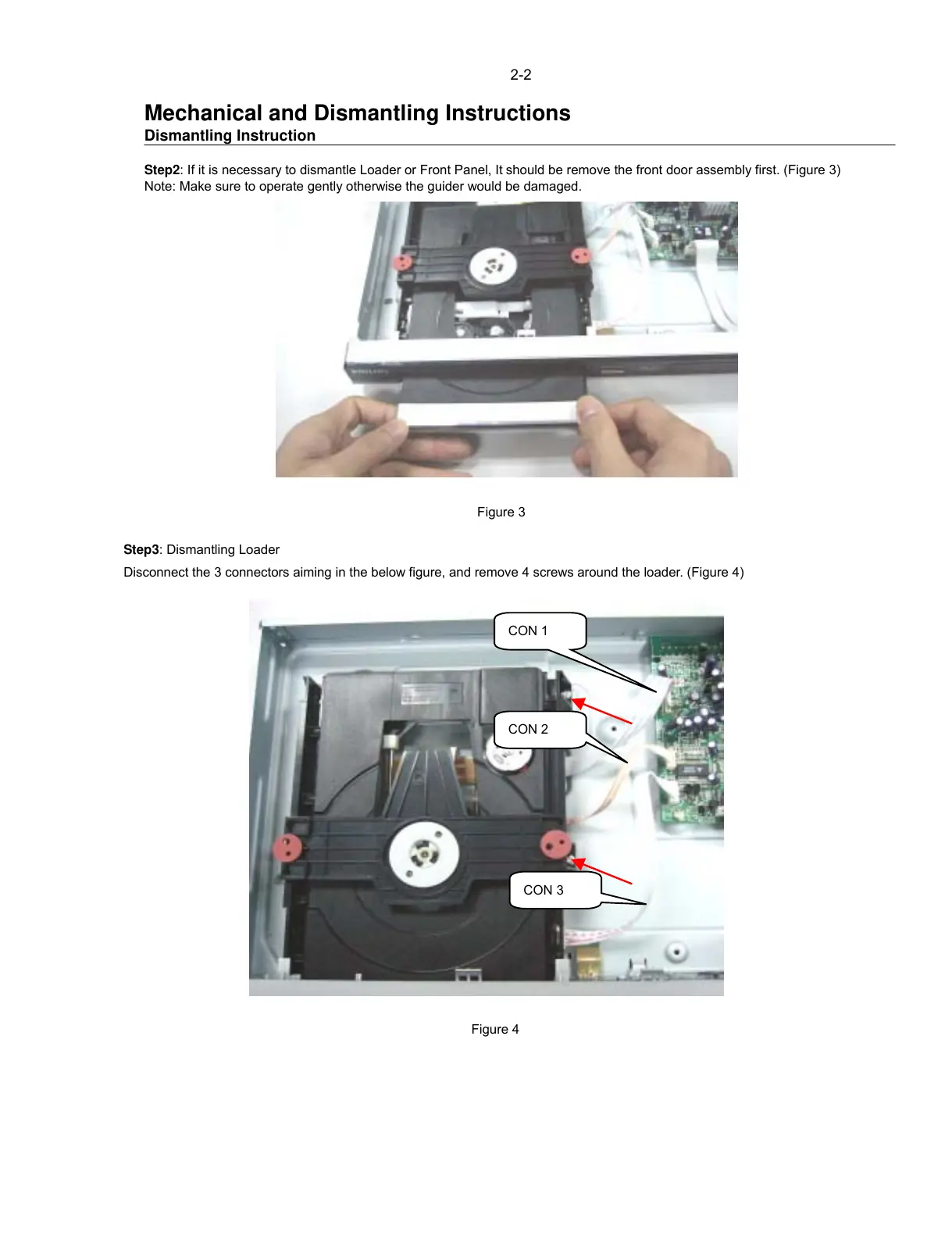

Mechanical and Dismantling Instructions
Dismantling Instruction
Step2: If it is necessary to dismantle Loader or Front Panel, It should be remove the front door assembly first. (Figure 3)
Note: Make sure to operate gently otherwise the guider would be damaged.
Step3: Dismantling Loader
Disconnect the 3 connectors aiming in the below figure, and remove 4 screws around the loader. (Figure 4)
2-2
Figure 3
Figure 4
CON 3
CON 2
CON 1
To Next Page
