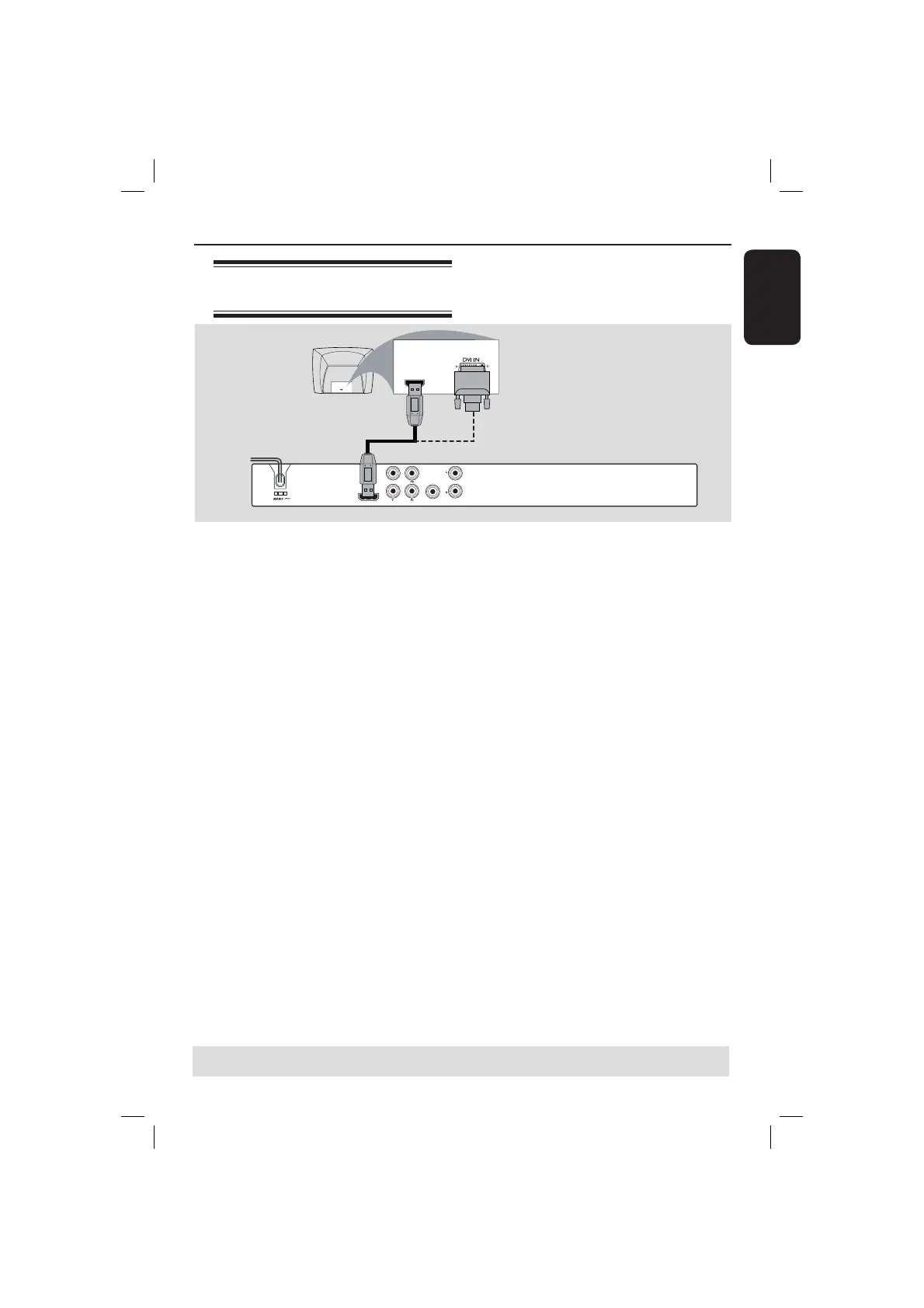

HDMI connections
Connecting to a HDMI or
DVI TV
IMPORTANT!
– HDMI connects untouched and
uncompressed digital transmission
for the highest and crispest sound or
image quality.
– It has plug and play capability
using only one HDMI cable for both
audio / video output.
A Use a HDMI cable (not supplied) to
connect the DVD player’s HDMI OUT
to HDMI IN on the HDMI TV.
To hear sound via TV only,
B Set the DVD player’s { HDMI Audio
Setup – On } for HDMI connection (see
Digital Audio Setup – HDMI Audio Setup
for detail).
OR
IMPORTANT!
– If your TV has a DVI IN jack, you
need a HDMI-DVI adapter cable to
connect the HDMI OUT jack on the
DVD player.
– This HDMI-DVI cable has only
video output capability.
A Use a HDMI-DVI cable (not supplied) to
connect the DVD player’s HDMI OUT
to DVI IN on the DVI TV.
Tip:
– To hear sound from the DVD player, use
one of the audio connection on next page as
there will be no audio output for DVI TV.
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
