Philips EP5310/10 - Milk Carafe (OTC Version); Water Level Detection (Water Tank)

PHI 5000 03 OPERATING LOGIC
6/8

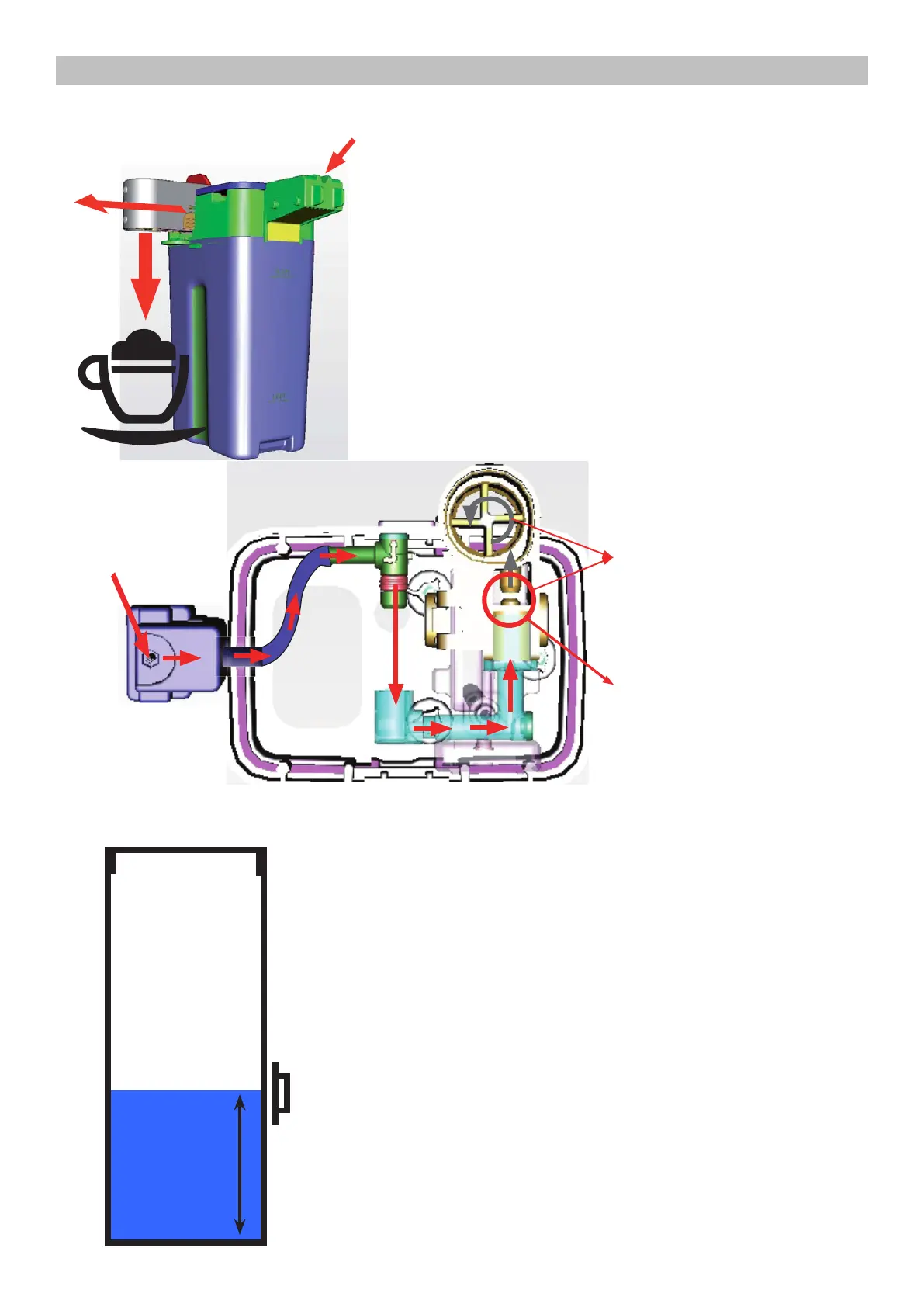

3.11 Water level detection (water tank)
“Water low” message (water reserve)
Function:
e water level is monitored by a capacitative sensor, located one third of the
way up the water tank wall.
If the electronics assembly detects, by means of the sensor, that the amount
of water in the tank has dropped below the above mentioned level, a water
reserve remains available for the dispensing process underway (this will
cover 200 ow meter pulses).
e product dispensing process will then come to an end.
If a dispensing cycle ends aer the sensor has been triggered (in the reserve)
then the display “Water low” continues to be displayed during the following
dispensing cycle.
200 puls.
Sensor
Water tank
3.10. Milk Carafe (OTC version)
MINUTO 04 OPERATING LOGIC
Page / 10
4.4. Milk Carafe
1) Steam input
2)Bring the cappuccino maker into dispensing
position
3) Milk tank
1
2
3
04
The steam passes
through the pipe creating
a sucking effect that pulls
the milk upwards
Steam
The milk is heated by the
steam and taken towards
the emulsion chamber
where it is mixed with
air and transformed into
foam
e steam passes through the
pipe creating a sucking eect that
pulls the milk upwards
Steam
e milk is heated by the steam
and taken towards the emulsion
chamber where it is mixed with
air and transformed into foam
1) Steam inlet
2) Cappuccinatore
3) Milk tank
