PHI 5000 08 DISASSEMBLY
1/7

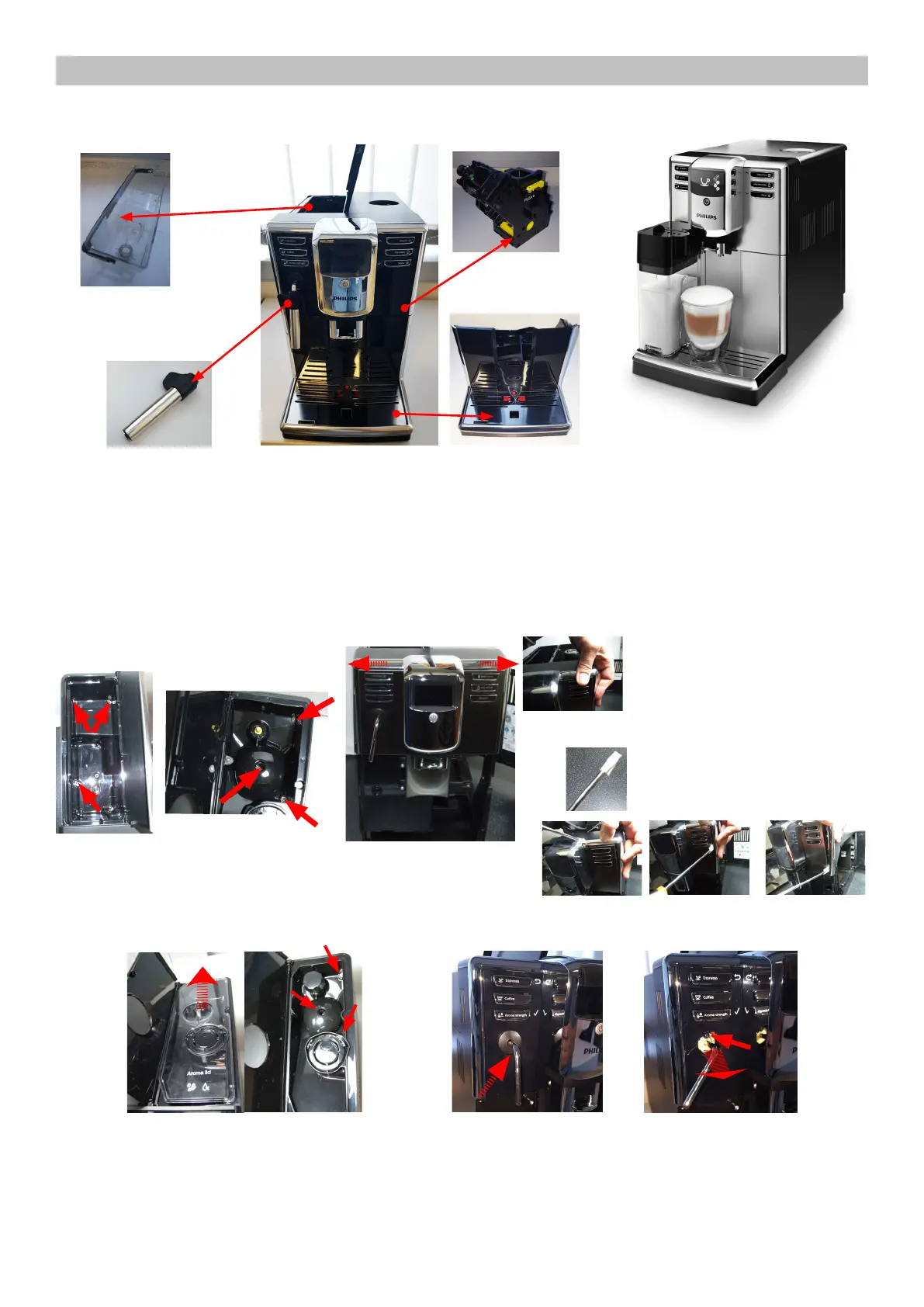

7.1. Outer Shell
Remove the water tank, coee container cover,
drip tray, dreg drawer, brewing unit.
Remove the cover as
in the photo.
Unscrew the screws shown
Remove the cap, unscrew the screw
shown and remove the steam tube.
OTC Models
CMF Models
Upper cover
Cover a screwdriver with
adhesive paper to prevent
scratching the chromed
shell.
Remove the cover as in the
photo. In case of any issues
please you can try with the
alternative way below de-
scribed.
2
3
1
Only 230V
To Next Page
