 Channel Board
 Power Regulator
 Audio I/O board (AIO)
 Power Distribution Board
See the Temperature Control section for more information on this
topic.
The ACB also receives 12Vdc via the backplane and supplies 9Vdc to
the CB FPGAs.
Channel Board
The main function of the Channel Board (CB) is to transmit and
receive data from the transducers and perform Analog to Digital
Conversion (ADC) on the data received from the transducers along
with Digital to Analog Conversion (DAC) on signals going to the
transducers.
The 128-Channel Board (CB) transmits transducer data over 8 high
speed serial links to the ACB when it receives the Xmit Start signal
from the ACB.
The CB contains the digital beam-former FPGAs, Neon0 and Neon1,
the analog front end circuitry, 14-bit analog to digital converters on
each channel and high voltage regulation for the transmitters.

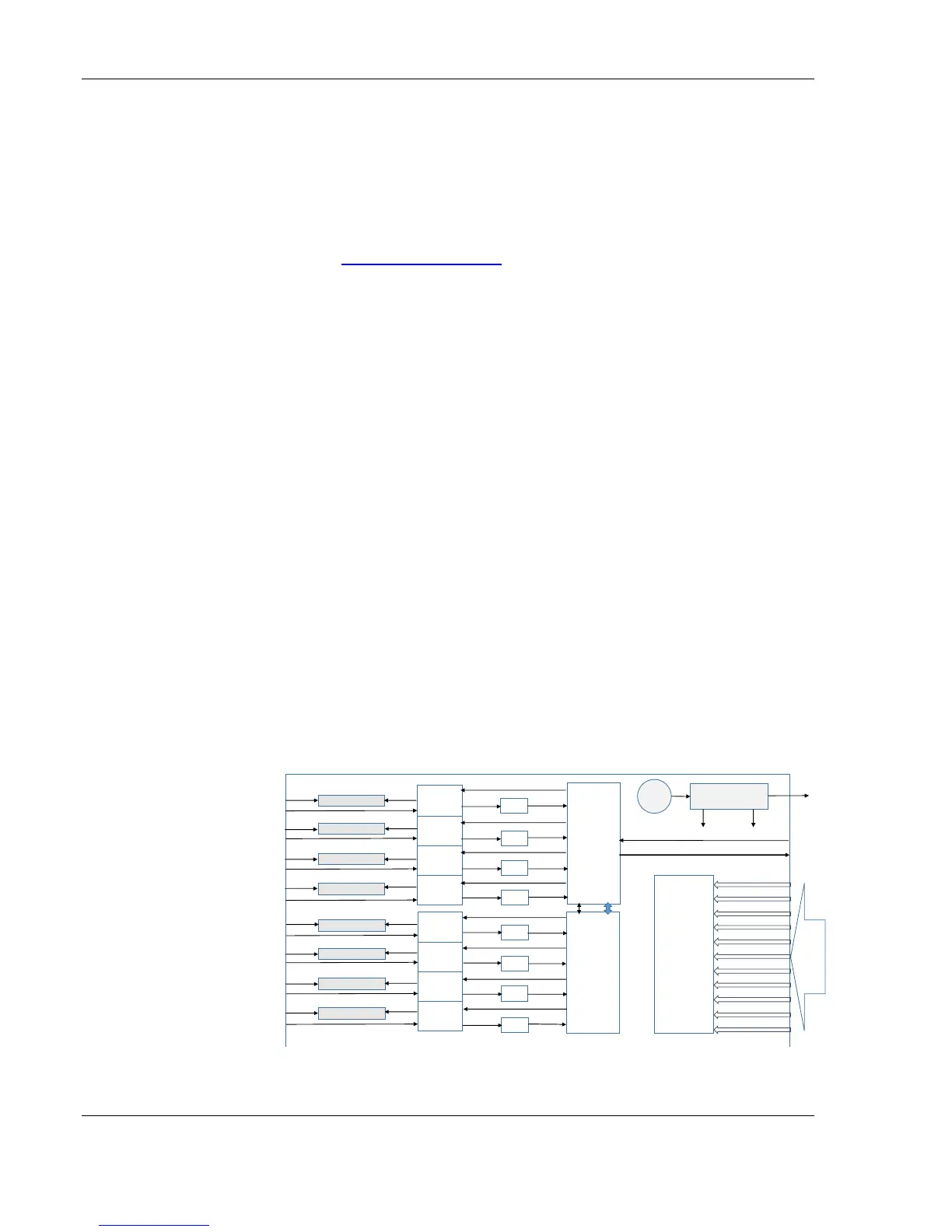

Channel Board Block Diagram
The CB also provides High Voltage (HV) linear regulation on the
ChannelBoardBlockDiagram
ChannelBoard
Neon0
FPGA
Neon1
FPGA
Power
Regulator
&Filter
1 60
MHz
OSC
Clock
Distribution
ADC
Chipper
16Ch
AnalogASIC
Chipper
16Ch
AnalogASIC
Chipper
16Ch
AnalogASIC
Chipper
16Ch
AnalogASIC
Chipper
16Ch
AnalogASIC
Chipper
16Ch
AnalogASIC
Chipper
16Ch
AnalogASIC
Chipper
16Ch
AnalogASIC
ADC
ADC
ADC
ADC
ADC
ADC
ADC
1.8Vanalog
FromPRB
3.3Vanalog
+12Vanalog
-12Vanalog
+5Vanalog
-5Vanalog
From
PRB
CB+HV
XHV-
3.3Vdigital
XHV+
1.5Vdigital
160MHz
CLK
400MHz
A/DCLK
80MHzCLKtoACB
SummedRFDatatoACB
SCANDMA
HVAmp200Vpp
HVAmp200Vpp
HVAmp200Vpp
HVAmp200Vpp
HVAmp200Vpp
HVAmp200Vpp
HVAmp200Vpp
HVAmp200Vpp
I
2
C
Out-Prog
In-RF
In-Prog
Out-RF
Chipperdownloadbus
Chipperdownloadbus
Chipperdownloadbus
Chipperdownloadbus
Chipperdownloadbus
16CH
Chipperdownloadbus
Chipperdownloadbus
Chipperdownloadbus
16CH
16CH
16CH
16CH
16CH
16CH
16CH
16CH
16CH
16CH
16CH 16CH
16CH
16CH 16CH
DAC(16CH)
DAC(16CH)
DAC(16CH)
DAC(16CH)
DAC(16CH)
DAC(16CH)
DAC(16CH)
DAC(16CH)
CH (0-15)
CH (0-15)
CH (16-31)
CH (16-31)
CH (32-47)
CH (32-47)
CH (48-63)
CH (48-63)
CH (64-79)
CH (64-79)
CH (80-95)
CH (80-95)
CH (96-111)
CH (96-111)
CH (112-127)
CH (112-127)
