EPIQ 5 & 7 Training Manual
© 2016 Conquest Imaging

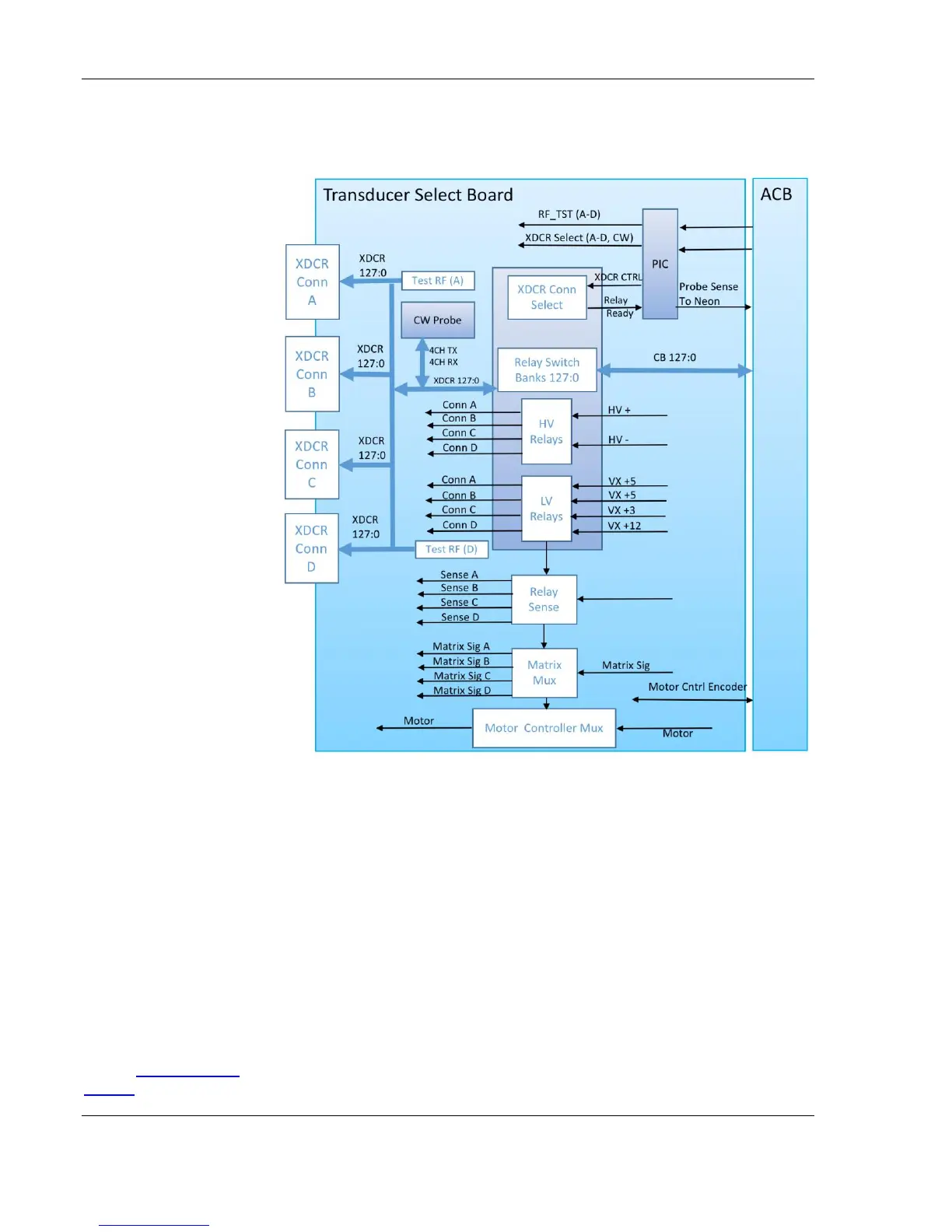

Transducer Select Board Block Diagram
System Backend Components
This section describes the System Back End topics for the EPIQ 5 and
EPIQ 7. The back end includes system blocks/components on the user
interface side that perform functions such as master controller, signal
processing, image memory, video layout, peripherals and user
interface.
PC Module (Motherboard)
EPIQ systems use different motherboards depending on the version
of the system, SuperMicro and BCM. The motherboard functions are
separate from the acquisition software which resides in FPGA’s on the
BIOS settings for each
type of motherboard are
listed in Appendix 1 BIOS
Settings.
