BCM Motherboard (customized BC77Q) for EPIQ 5 only.
This motherboard contains a single quad-core processor from the
Intel E3 Xeon product family and is used in version 1.3.1 and later
systems.
The processor supports 16 GB DIMM per system.
Supports a single standard 2.5-in (6.4-cm) hard drive for patient
data.
On systems with 1.4.1 software and later, an embedded graphics
chip supplies DisplayPort video for the main display and external
monitors. It also provides S-Video for systems with SVIO Slim
boards (for systems with a DVR, SVHS VCR, or other device
requiring an analog signal) and DVI video for the touch screen.
Supports up to three graphics heads on one graphics board,
including monitor (1920 x 1080), Aux Video (region of interest or
full-screen, user selectable), and control panel/touch screen.
Supported by no-battery, one-battery, and two-battery power
supply configuration.

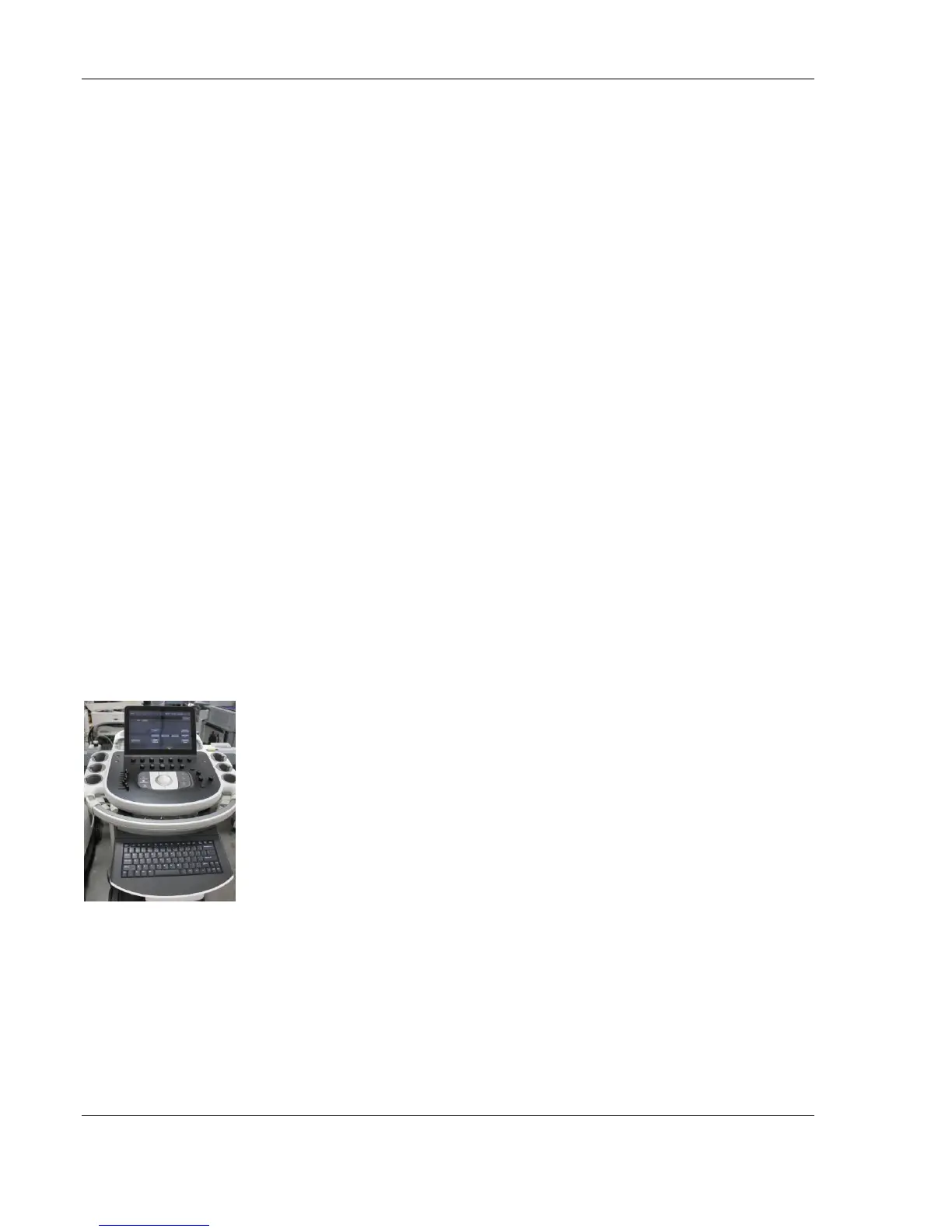

User Interface Components
The control panel is the main user interface, receives user inputs,
communicates with the system PC Module via a USB port and displays
various outputs. It also provides user control of the five different
system power states with the On/Off and sleep mode switches.
It supports the following controls and indicators:
Touch Screen
USB QWERTY keyboard
USB trackball (optical laser)
Rotary knobs (can change function based on screen)
Push buttons (allow for mode selection)
Ambient light sensors
To Next Page
