DisplayPort supports user connected DP-DVI dongles. If a dongle
is connected to the system, the Helium FPGA is signaled to send
video in DVI format.

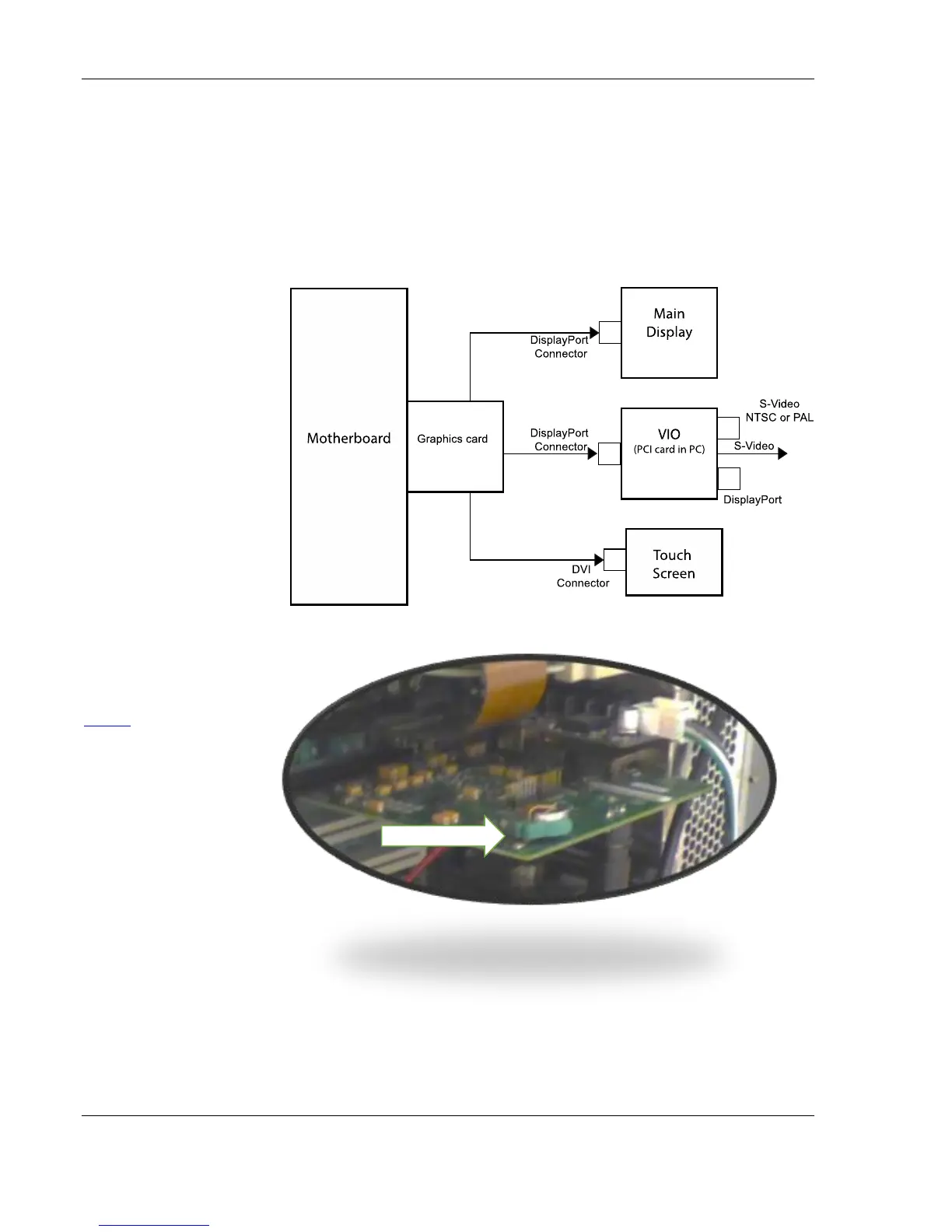

Systems with VIO and Graphics Card Video
Configuration
It is important to note
that for software version
1.3x and earlier the
iButton which contains
the system chip ID number
for the licensed options is
located on this board. If
you should replace the
VIO module you must
remove this device and
install it on the new
module.
