EPIQ 5 & 7 Training Manual
© 2016 Conquest Imaging
34

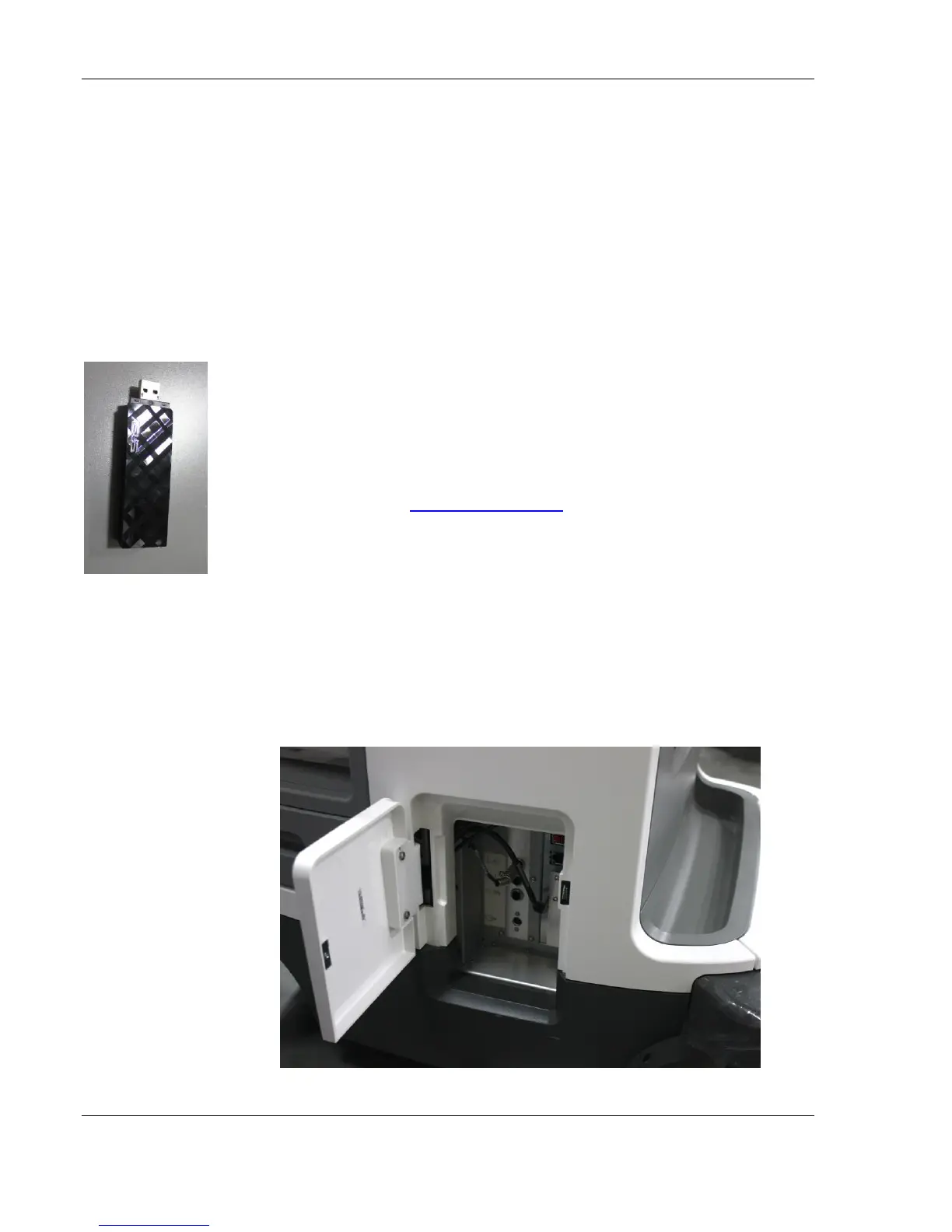

Wireless Adaptor Installation
The system is capable of using both a wired or wireless network. For
wireless networking a you must install a wireless network adapter in
the right side enclosure. There are two types of motherboards used in
different versions of the EPIQ systems, SuperMicro and the BCM. The
next two sections provide installation procedures for each one.
Install Wireless Network Adapter SuperMicro Motherboard
To install the wireless network adapter on systems using the
SuperMicro motherboards (version 1.0 and 1.1 systems):
 Make sure you have the adapter, cable-tie mount, and cable tie
from the accessories box.
 Remove the Right Side Enclosure
 Remove the paper from the adhesive backing of the cable-tie
mount, orient the opening on the mount vertically, and attach
the mount to the right of the USB connectors.
 Insert the wireless network adapter into the third USB port from
the left.
 6. Secure the adapter with the cable tie and trim the end of the
tie.
