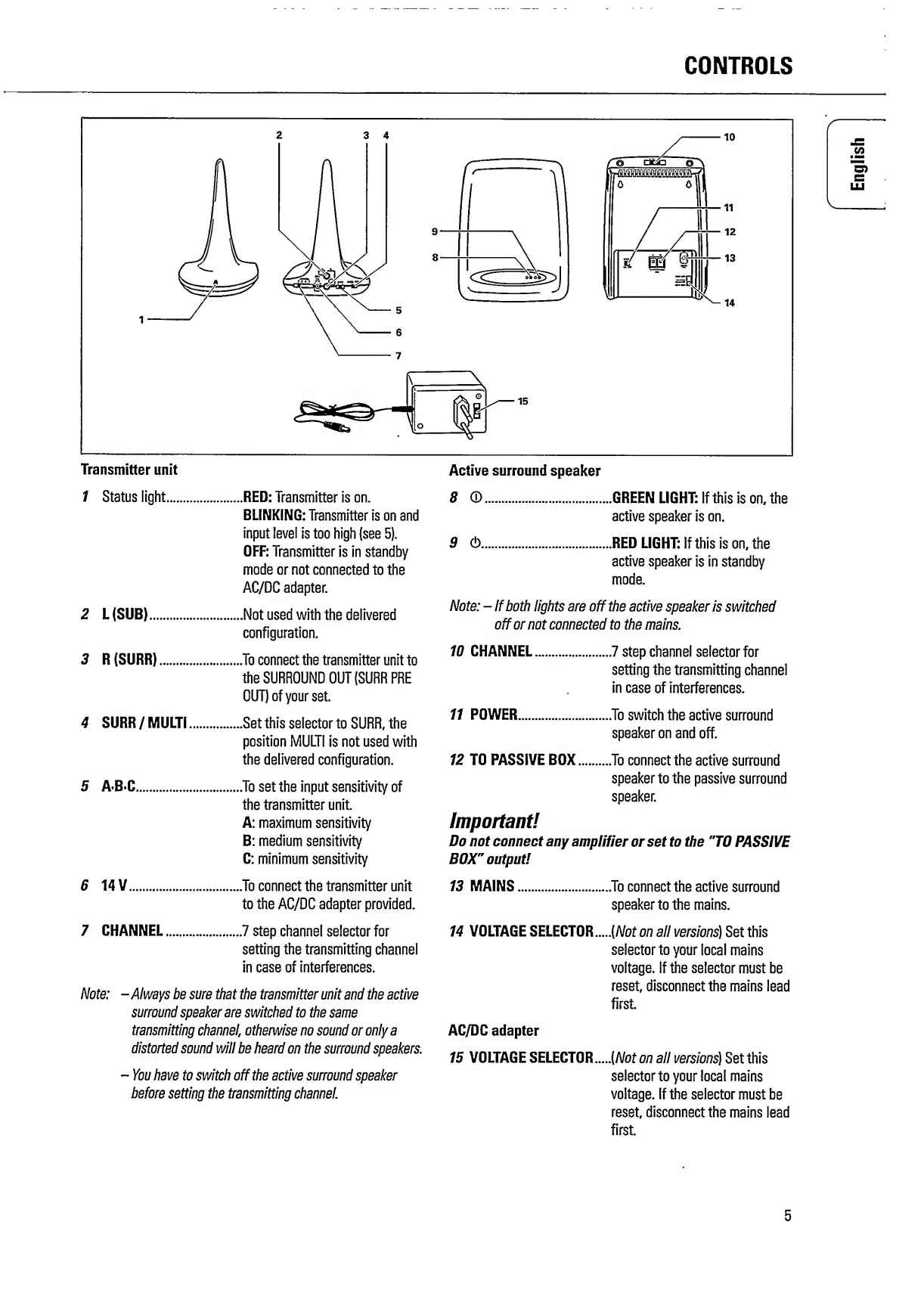

CONTROLS
Transmitter unit
Active surround speaker
1 Status light. R E D : Transmitter is on.
BLINKING: Transmitter is on and
input level is too high (see 5).
OFF: Transmitter is in standby
mode or not connected to the
AC/DC adapter.
2 L (SUB) . N o t used with the delivered
configuration.
3 R(SURR). .To connect the transmitter unit to
the SURROUND OUT (SURR PRE
OUT) of your set.
4 SURR / MULTI . Set this selector to SURR, the
position MULTI is not used with
the delivered configuration.
5 A-B-C . To set the input sensitivity of
the transmitter unit.
A: maximum sensitivity
B: medium sensitivity
C: minimum sensitivity
8 ®. G R EEN LIGHT: If this is on, the
active speaker is on.
9 (!). RED LIGHT: If this is on, the
active speaker is in standby
mode.
Note: - If both lights are off the active speaker is switched
off or not connected to the mains.
10 CHANNEL . . 7 step channel selector for
setting the transmitting channel
in case of interferences.
11 POWER . . To switch the active surround
speaker on and off.
12 TO PASSIVE BOX . .To connect the active surround
speaker to the passive surround
speaker.
Important!
Do not connect any amplifier or set to the "TO PASSIVE
BOX” output!
6 14 V . To connect the transmitter unit
to the AC/DC adapter provided.
7 CHANNEL . 7 step channel selector for
setting the transmitting channel
in case of interferences.
Note: - Always be sure that the transmitter unit and the active
surround speaker are switched to the same
transmitting channel, otherwise no sound or only a
distorted sound will be heard on the surround speakers.
- You have to switch off the active surround speaker
before setting the transmitting channel.
13 MAINS . .To connect the active surround
speaker to the mains.
14 VOLTAGE SELECTOR ( N oton all versions) Set this
selector to your local mains
voltage. If the selector must be
reset, disconnect the mains lead
first.
AC/DC adapter
15 VOLTAGE SELECTOR. {Not on all versions) Set this
selector to your local mains
voltage. If the selector must be
reset, disconnect the mains lead
first.
r
5
English
