CONNECTIONS
Front speakers (not included) and centre speaker
Connect the coloured speaker wire to the coloured or ©
terminal, and the black wire to the black or © terminal of the
appliance.
Surround speakers
Your wireless speaker system includes two different surround
speakers. One is the active surround speaker; the other one is
the passive surround speaker. You can identify the active
speaker by the controls on the rear.
Connect the active to the passive speaker with the speaker
cable provided. Connect the coloured wire to the coloured
terminal, and the black wire to the black terminal on both
speakers. Connect the active speaker to the mains with the
mains cable provided. Switch on the active speaker with the
POWER switch.
Transmitter unit
Connect the SURR terminal of the transmitter unit with the
PRE OUT (SURROUND) terminal of the appliance using the
supplied cinch cable. Connect the AC/DC adapter supplied to
the 14 V socket of the transmitter unit. Then connect the
AC/DC adapter to the mains.
Note: - The SUB terminal of the transmitter unit is not used
Note: - After connecting all the speakers, do not forget to with this set.
adjust the relative sound level between them.
Important!
Always switch off all your equipment before making
any connections!

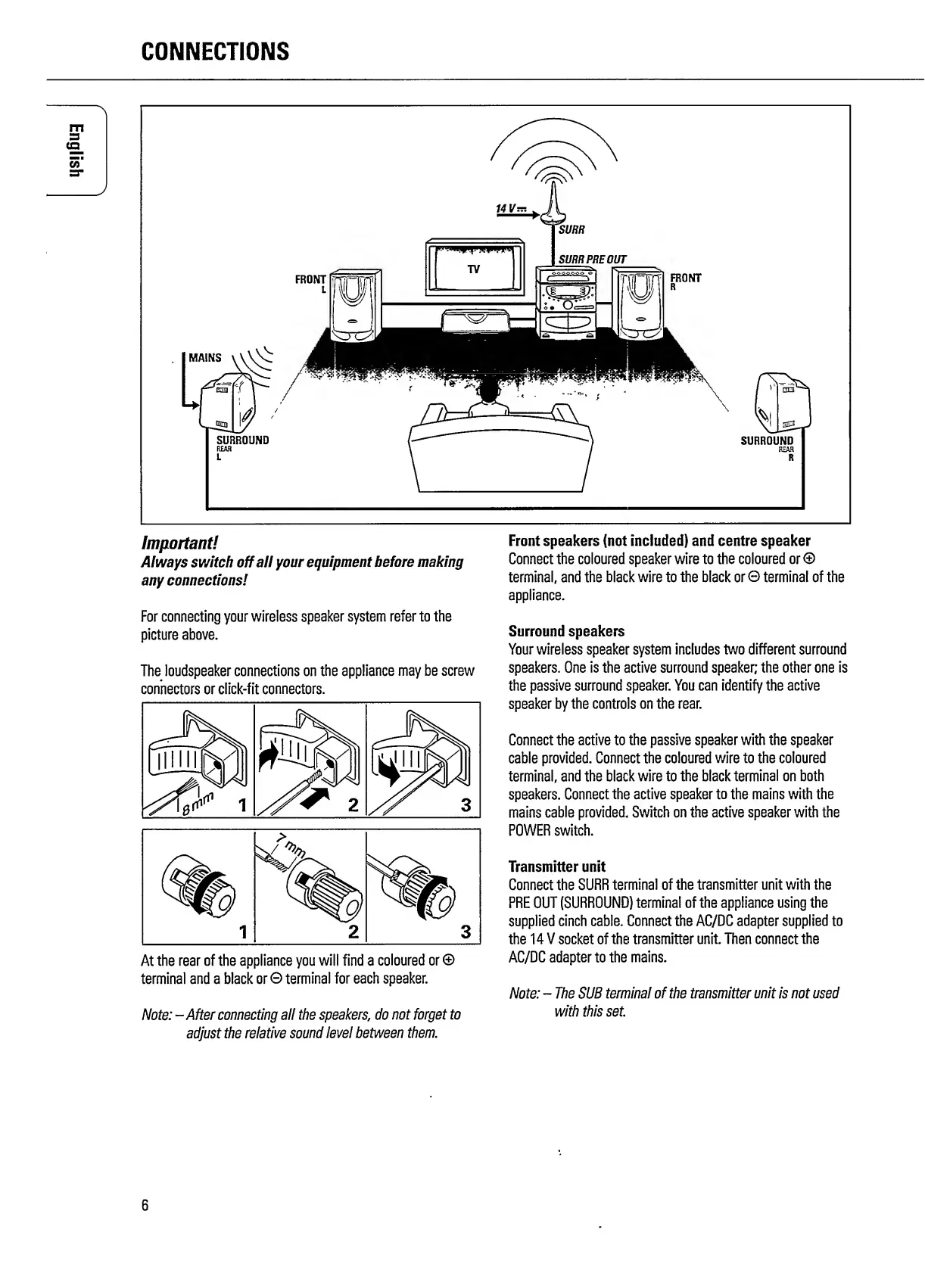

For connecting your wireless speaker system refer to the
picture above.
The loudspeaker connections on the appliance may be screw
connectors or click-fit connectors.
*
50
1
%
1 3
At the rear of the appliance you will find a coloured or ©
terminal and a black or © terminal for each speaker.
6
