FC8760/01
2-10

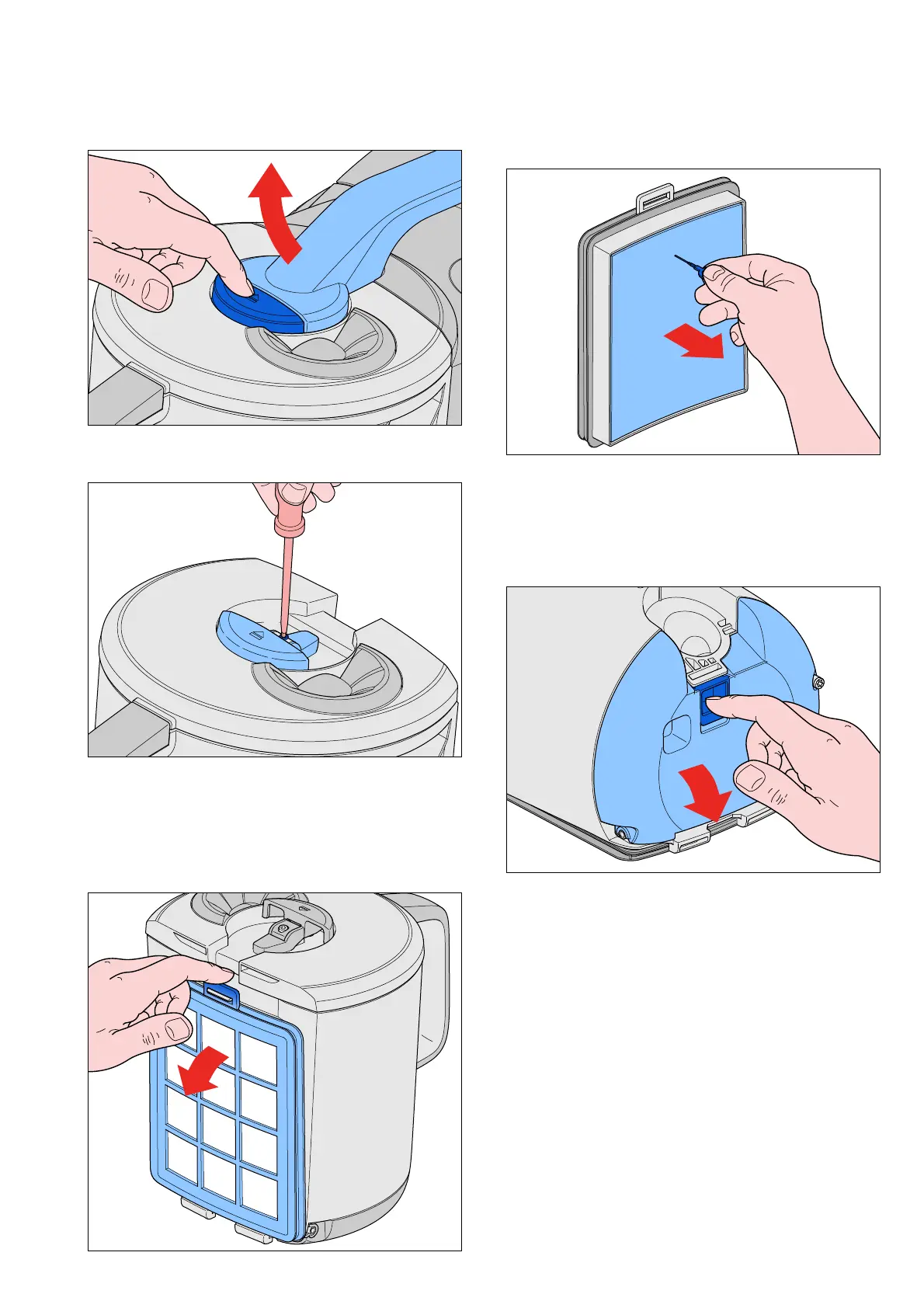

• To remove the Bucket, unlock the top handle by pushing
the button on the lid of Bucket (see picture).
• The button (3) on the lid is a spare part, it can be
replaced by removing screw A (see picture).
A
• The bucket can only be placed back with the lid mounted
and positioned in the correct way, otherwise the handle
cannot be closed.
• The Inlet  lter assy (4) on the front (motor side) of the
Bucket can be removed by pulling the lip at the top (see
picture).
• The foam in the Inlet filter assy can be cleaned.
By pulling the plastic ring the foam filter can be removed
without touching the dirt on the filter (see picture).
• The bottom of the Bucket can be removed as shown in
the picture below.
Remark:
The Bucket can be placed back without the bottom, this
will not lead to a safety problem, but all the dust will get
into the bottom housing.
DISASSEMBLY- AND RE-ASSEMBLY ADVISE
