DISASSEMBLY- AND RE-ASSEMBLY ADVISE
• To reach the inner parts for repair, Upper housing (18)
has to be removed. First the On/Off button (17) and
Cordwinder button (16) must be removed, this can be
done with a screwdriver.
Remark:

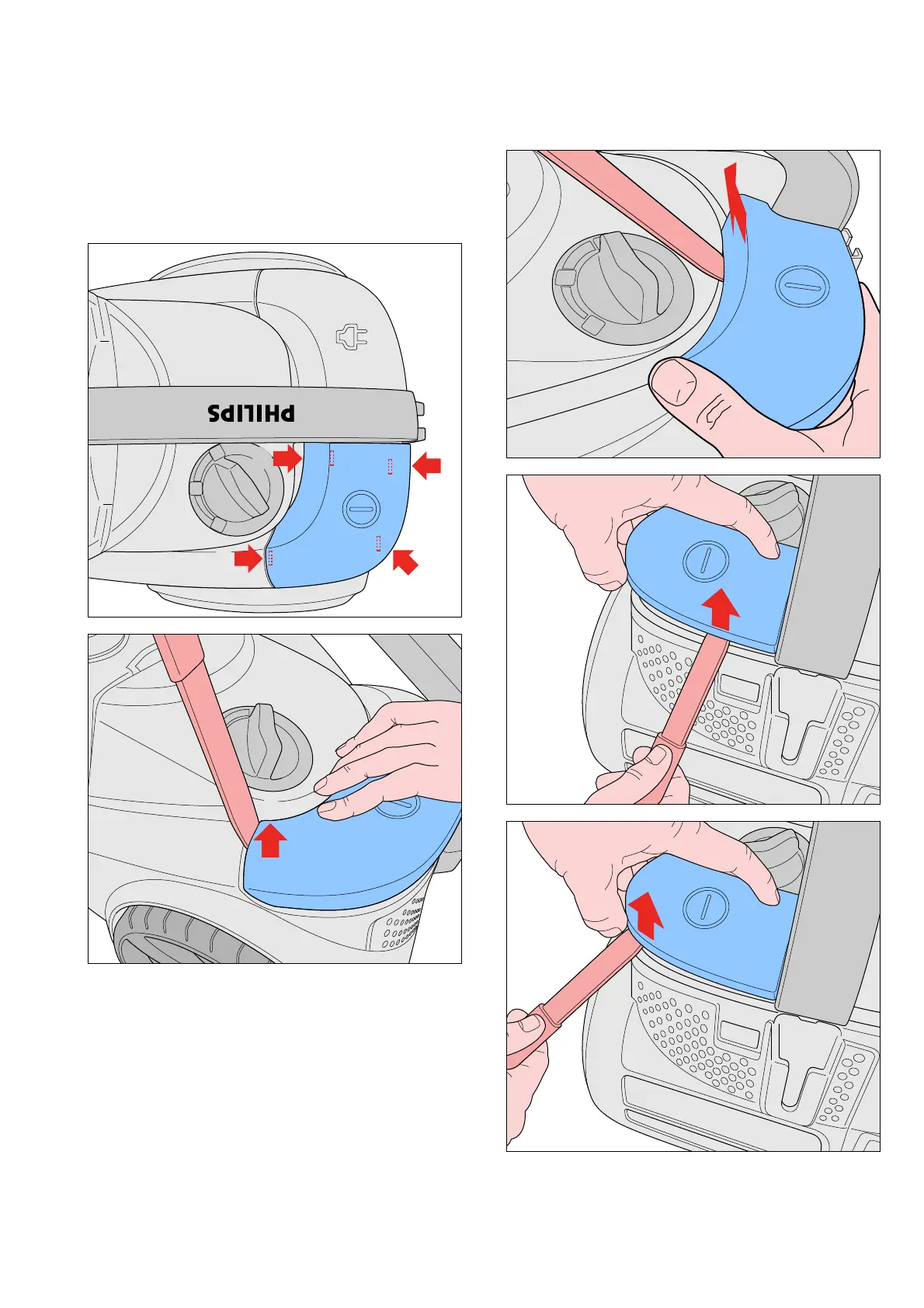

The two buttons are secured with 4 “snap locks”, be
careful when removing (see picture).
a
b
c
d
a
• When lifting at position b push the button a little
towards the front side.
b
c
d
• When assembling, the buttons can easily be mounted by
clicking, start at the side of the handle.
Remark:
Check that the two springs are in the correct position.
