FC9184/01 / FC9184/11
2-9

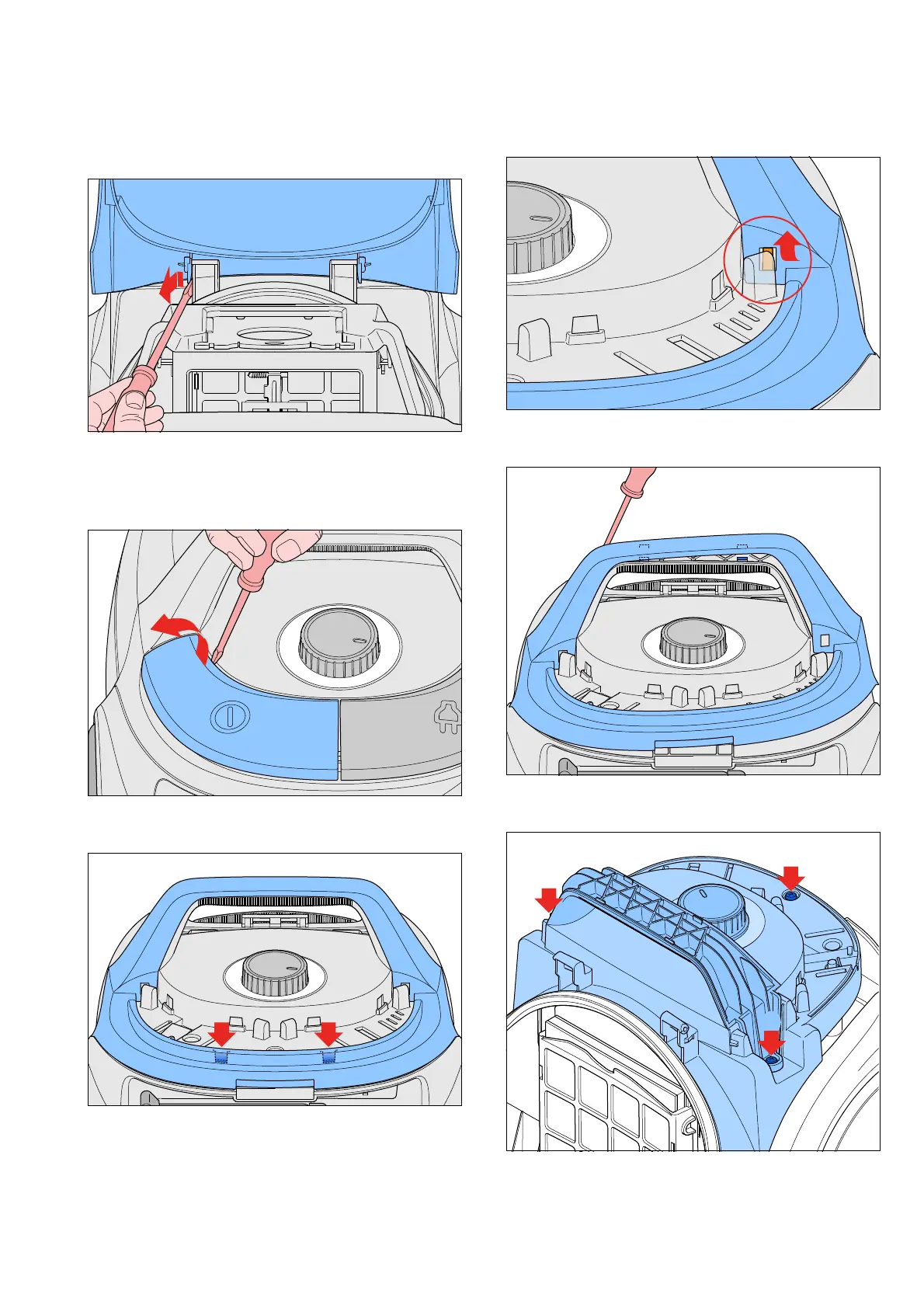

• To open the appliance, first remove outlet grill (28) and
exhaust filter (7).
• Remove Dustcover (1) using a screwdriver (see picture).
• To reach the inner parts for repair you must first remove
the Top housing with its attached parts.
• Remove On/Off button (5) and cordwinder button (6),
this can be done with a screwdriver (see picture).
• To remove Handle cover (8) first release the 2 snap
connections on the backside (see picture).
• Then with a small screwdriver lift the Handle cover over
the nock on the Top housing (see picture).
• Now you can with a screwdriver remove the complete
Handle cover from the housing (see picture).
• Remove the 2 screws A which hold Handle (9) and
screw B (see picture).
A
A
B
Remark:
When assembling the Top housing check that Turn knob
(11) is in the correct position relative to the position of
the potmeter on the PCBA.
DISASSEMBLY- AND RE-ASSEMBLY ADVISE
