FC9184/01 / FC9184/11
3-9

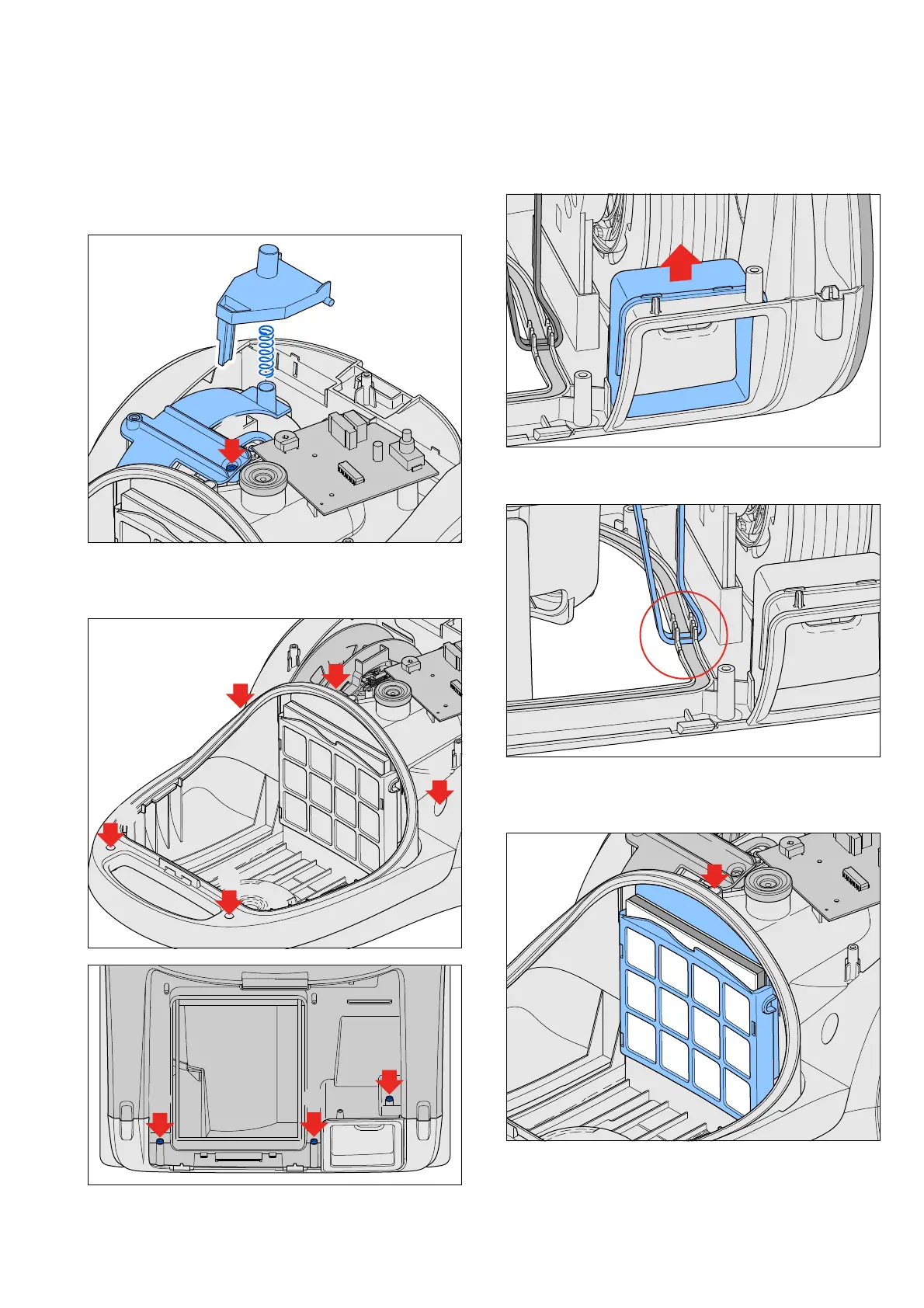

• When the Motor and/or Cordwinder have to be
replaced the Upper housing (17) must be removed.
• First remove Brake lever (13) and the spring than
remove screw C so you can remove cordwinder cover
(14). Take care that the spring does not fall into the
appliance! (see picture).
C
• After removing the 5 screws D and 3 screws E on the
back side, the Upper housing can be seperated from the
Lower housing (see pictures).
D
D
D
D
D
E
E
E
• When replacing the Cordwinder (21) the Lower housing
insert (19) needs to be removed. Move the Lower
housing insert upwards so the cordwinder can easily be
removed (see picture).
• When assembling take care that the wires from motor
to cordwinder are correctly fixed (see picture).
• The frame that holds Triple filter (18) is attached to
the Upper housing, to remove the frame remove screw
F (see picture).
F
DISASSEMBLY- AND RE-ASSEMBLY ADVISE
