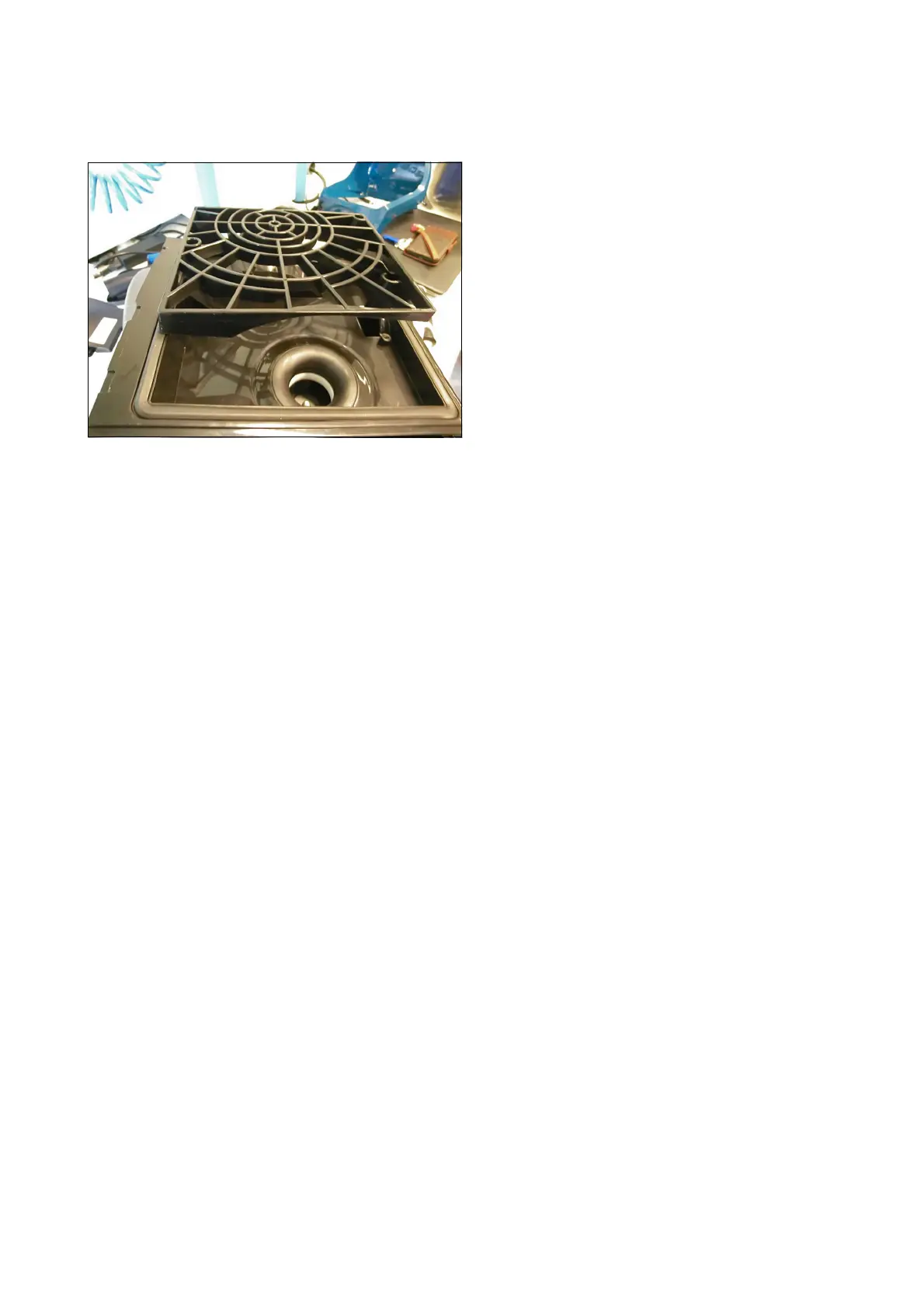

• Motor filter Frame (28) can be removed by unscrewing
the 3 screws (F).
• The Separation wall (42) can be removed from the
Motor housing by unscrewing the 2 screws (K). It is also
attached with one of the screws F.
To reassemble
• First place the Cordwinder assy.
Remark: check if rewinding is working !!!
• When replacing the Cordwinder cover:
Start at the backside, then click on the frontside.
Disassembly- and Reassembly advice
