9-4
9-4
RECORDER BOARD
MOUNTING FRAME
501
204
201
M2,5x25
M2x3

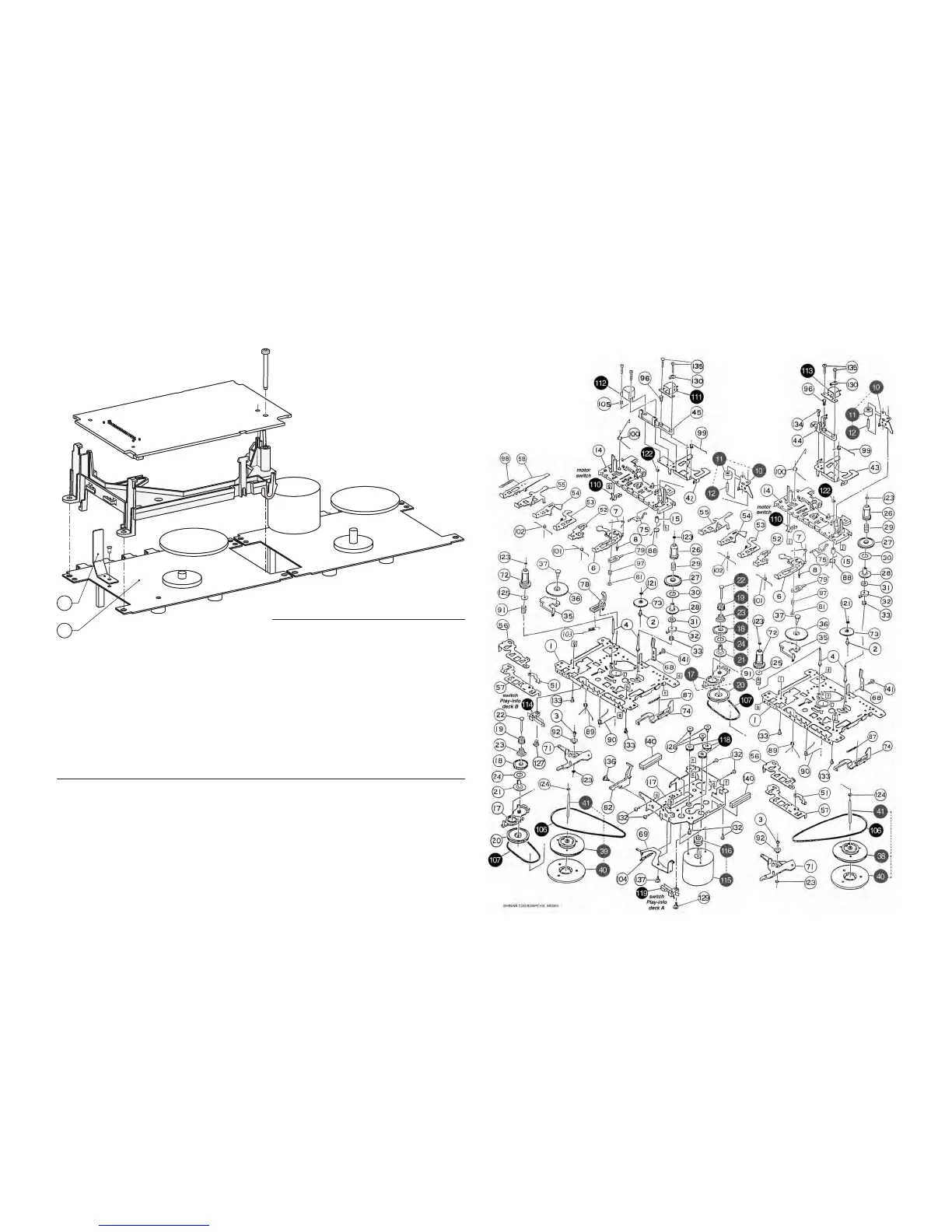

EXPLODED VIEW TAPE TRANSPORTEXPLODED VIEW / RECORDER MODULE
201 3103 309 05280 tape transport CDS-83WPC-05
204 4822 492 11755 SPRING, RECORD
Note: Only the parts mentioned in this list are normal
service spare parts.
MECHANICAL PARTS LIST - RECORDER MODULE
10-12 4822 528 11189 PINCH ROLLER ASSY
17-24 4822 402 10966 CLUTCH ASSY
38-41 4822 528 11242 FLYWHEEL ASSY, PB DECK
39-41 4822 528 11243 FLYWHEEL ASSY, REC/PB DECK
106 4822 358 31225 MAIN BELT
107 4822 358 31124 SUB BELT
110 4822 278 90663 LEAF SWITCH, MOTOR ON/OFF
111 4822 249 10565 REC/PB-HEAD, TC951-B
MECHANICAL PARTS LIST - TAPE TRANSPORT
112 4822 249 10548 ERASE HEAD, LE15B-C1
113 4822 249 10565 REC/PB-HEAD, TC951-B
114 4822 277 11754 LEAF SWITCH, INDICAT. „PLAY“ REC/PB-DECK
115/116 4822 361 11053 MOTOR ASSY, EG530YD-2BH + PULLEY
118 4822 466 11787 MOTOR CUSHION
119 4822 277 11753 LEAF SWITCH, INDICAT. „PLAY“ PB-DECK
122 4822 532 12937 WASHER, 1.6X3.5X0.4
Note: Only the parts mentioned in this list are normal
service spare parts.
SPR 00 0053
