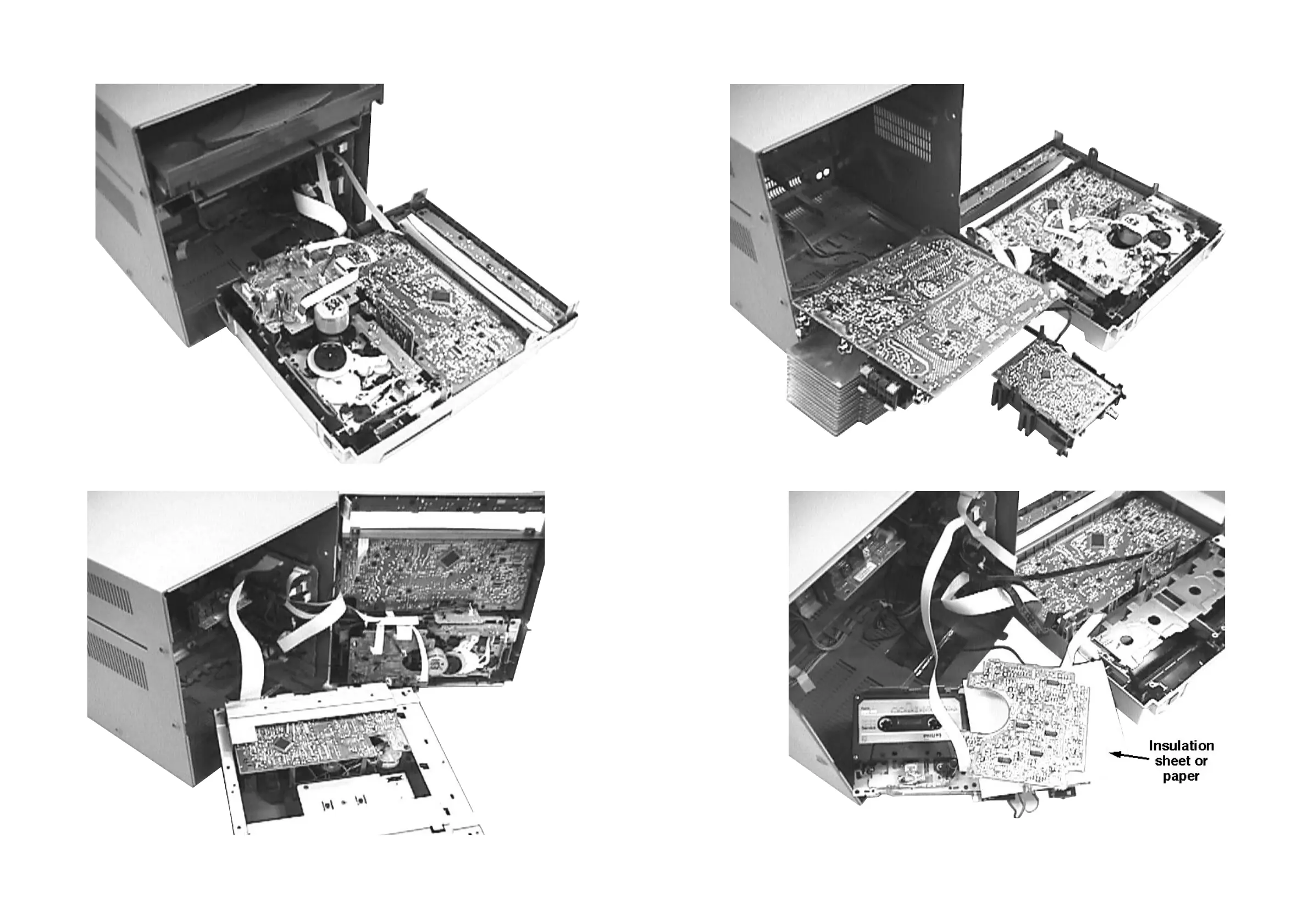

Service pos A
Service pos B
Service pos C
3-3
PCS 103 532
3-3
Service pos D
Notes:
1. During repair it is possible to disconnect the following
assemblies or modules while repairing other areas:
-Tuner Board
- CDC Module
2. The flex cables are very fragile, care should be taken not
to damage them during repair. After repair, be very sure
that the flex cables are inserted properly into the flex
sockets before encasing, otherwise faults may occurs.
