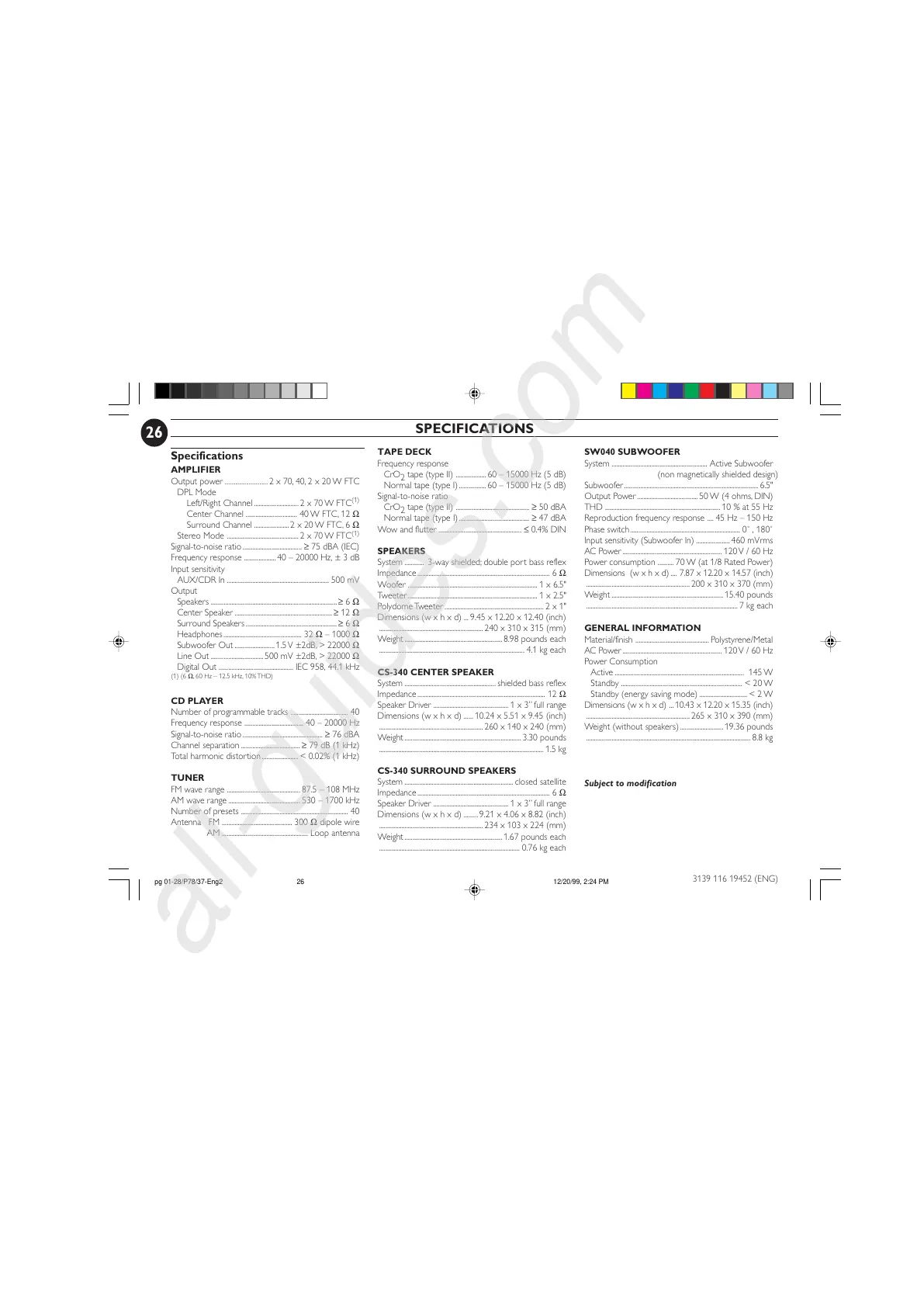

Philips FW-P78 - Specifications

3139 116 19452 (ENG)
26
Specifications
AMPLIFIER
Output power .................................... 2 x 70, 40, 2 x 20 W FTC
DPL Mode
Left/Right Channel ............................ 2 x 70 W FTC
(1)
Center Channel ................................ 40 W FTC, 12 Ω
Surround Channel ......................2 x 20 W FTC, 6 Ω
Stereo Mode ............................................. 2 x 70 W FTC
(1)
Signal-to-noise ratio ..................................... ≥ 75 dBA (IEC)
Frequency response ....................40 – 20000 Hz, ± 3 dB
Input sensitivity
AUX/CDR In ................................................................ 500 mV
Output
Speakers ...............................................................................≥ 6 Ω
Center Speaker ............................................................. ≥ 12 Ω
Surround Speakers......................................................... ≥ 6 Ω
Headphones................................................. 32 Ω – 1000 Ω
Subwoofer Out ......................... 1.5 V ±2dB, > 22000 Ω
Line Out .................................500 mV ±2dB, > 22000 Ω
Digital Out ............................................... IEC 958, 44.1 kHz
(1) (6 Ω, 60 Hz – 12.5 kHz, 10% THD)
CD PLAYER
Number of programmable tracks .................................... 40
Frequency response ..................................... 40 – 20000 Hz
Signal-to-noise ratio .................................................. ≥ 76 dBA
Channel separation ..................................... ≥ 79 dB (1 kHz)
Total harmonic distortion....................... < 0.02% (1 kHz)
TUNER
FM wave range ..............................................87.5 – 108 MHz
AM wave range ............................................. 530 – 1700 kHz
Number of presets ................................................................... 40
Antenna FM ............................................ 300 Ω dipole wire
AM ...................................................... Loop antenna
TAPE DECK
Frequency response
CrO
2
tape (type II) ................... 60 – 15000 Hz (5 dB)
Normal tape (type I) ................. 60 – 15000 Hz (5 dB)
Signal-to-noise ratio
CrO
2
tape (type II) .............................................. ≥ 50 dBA
Normal tape (type I) ............................................ ≥ 47 dBA
Wow and flutter .................................................... ≤ 0.4% DIN
SPEAKERS
System ............ 3-way shielded; double port bass reflex
Impedance................................................................................... 6 Ω
Woofer ................................................................................. 1 x 6.5"
Tweeter ................................................................................. 1 x 2.5"
Polydome Tweeter .............................................................. 2 x 1"
Dimensions (w x h x d) ... 9.45 x 12.20 x 12.40 (inch)
................................................................. 240 x 310 x 315 (mm)
Weight ............................................................. 8.98 pounds each
........................................................................................... 4.1 kg each
CS-340 CENTER SPEAKER
System ......................................................... shielded bass reflex
Impedance................................................................................ 12 Ω
Speaker Driver ............................................... 1 x 3” full range
Dimensions (w x h x d) ......10.24 x 5.51 x 9.45 (inch)
................................................................. 260 x 140 x 240 (mm)
Weight ......................................................................... 3.30 pounds
....................................................................................................... 1.5 kg
CS-340 SURROUND SPEAKERS
System .................................................................... closed satellite
Impedance................................................................................... 6 Ω
Speaker Driver ............................................... 1 x 3” full range
Dimensions (w x h x d) .........9.21 x 4.06 x 8.82 (inch)
................................................................. 234 x 103 x 224 (mm)
Weight ............................................................. 1.67 pounds each
........................................................................................ 0.76 kg each
SPECIFICATIONS
SW040 SUBWOOFER
System ............................................................ Active Subwoofer
(non magnetically shielded design)
Subwoofer.................................................................................... 6.5"
Output Power ...................................... 50 W (4 ohms, DIN)
THD ........................................................................ 10 % at 55 Hz
Reproduction frequency response .... 45 Hz – 150 Hz
Phase switch ..................................................................... 0˚ , 180˚
Input sensitivity (Subwoofer In) ..................... 460 mVrms
AC Power .............................................................. 120 V / 60 Hz
Power consumption .......... 70 W (at 1/8 Rated Power)
Dimensions (w x h x d) .... 7.87 x 12.20 x 14.57 (inch)
................................................................. 200 x 310 x 370 (mm)
Weight ...................................................................... 15.40 pounds
............................................................................................... 7 kg each
GENERAL INFORMATION
Material/finish .............................................. Polystyrene/Metal
AC Power .............................................................. 120 V / 60 Hz
Power Consumption
Active ................................................................................. 145 W
Standby ............................................................................ < 20 W
Standby (energy saving mode) .............................. < 2 W
Dimensions (w x h x d) ...10.43 x 12.20 x 15.35 (inch)
................................................................. 265 x 310 x 390 (mm)
Weight (without speakers)........................... 19.36 pounds
....................................................................................................... 8.8 kg
Subject to modification
